Z100-TYPE HARDWARE
Labeling the Cable Access Panel
The CAP labels are ordered along with other labels. The labels slide into a clear plastic
holder (Figure 2-34) that snaps into place between the 110-type terminal rows. The holder is
apparatus coded as a strip designation.
CABLE ACCESS PANEL LABEL ORDERING INFORMATION
Description
Qty. Per Code
Comcode
230A Labels
20 103 970 109
188UT1-50 Strip
Designation
6 103 895 504

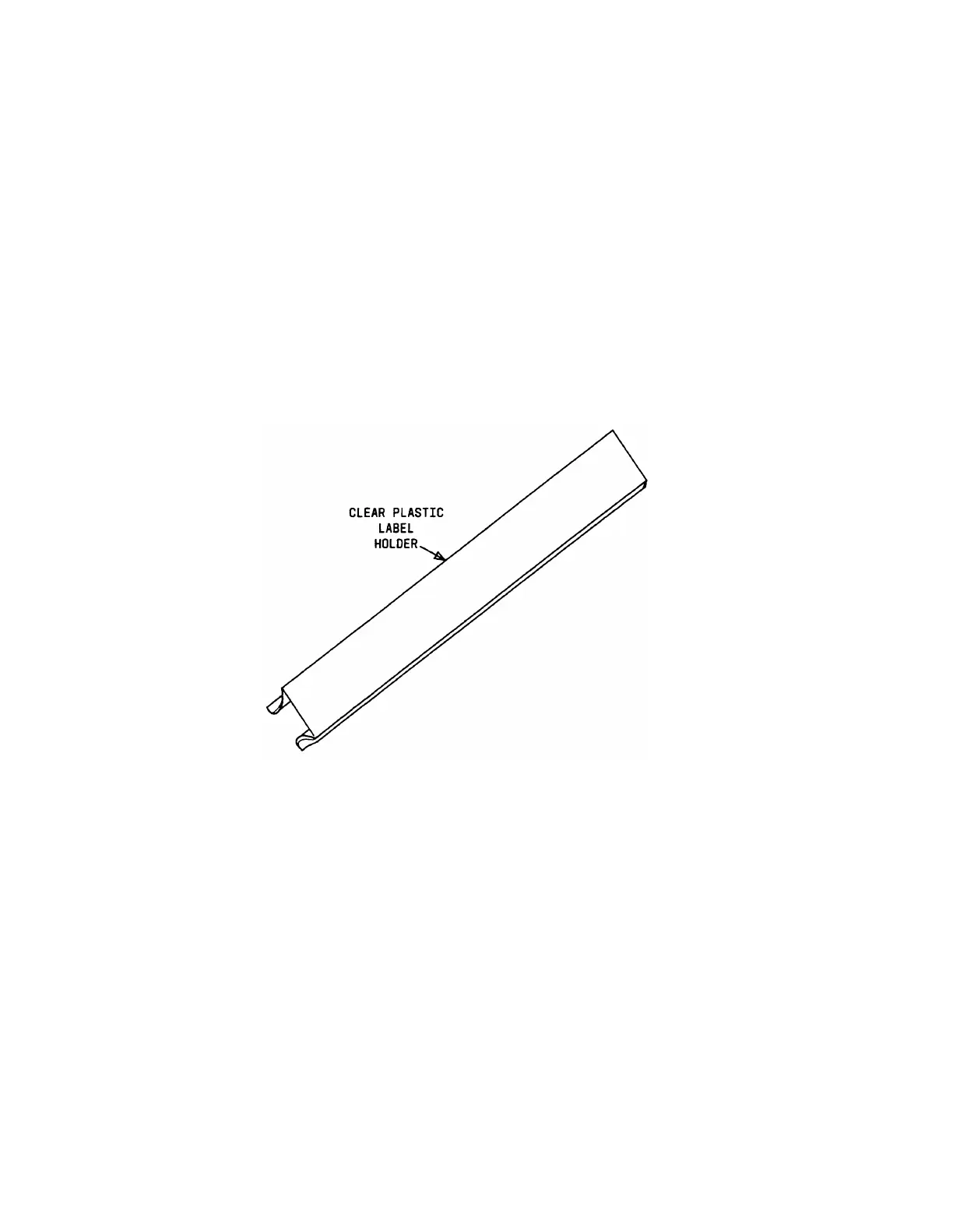

Figure 2-34. Clear Plastic Label Holder (188UT1-50 Strip Designation)
2-51
