Z100-TYPE HARDWARE
●
Cable slack is then stored perpendicular to the wall and cabinet by coiling the cable
around the columns in the cable slack manager. The first run should always go back
and forth the full length of five columns in the cable slack manager.
●
The cable is then connected to the port connecting unit in the connector module.
Routing Cables From Cable Access Panel to Switch Cabinet
Trunk cables connecting the CAP to the switch cabinet should be routed and the cable slack
stored individually in the cable slack manager located directly behind the switch cabinet (see
Figure 2-44). Detailed procedures are provided for installing the cables under the heading
Installing Trunk Cables Between Network Interface and System Cabinet.

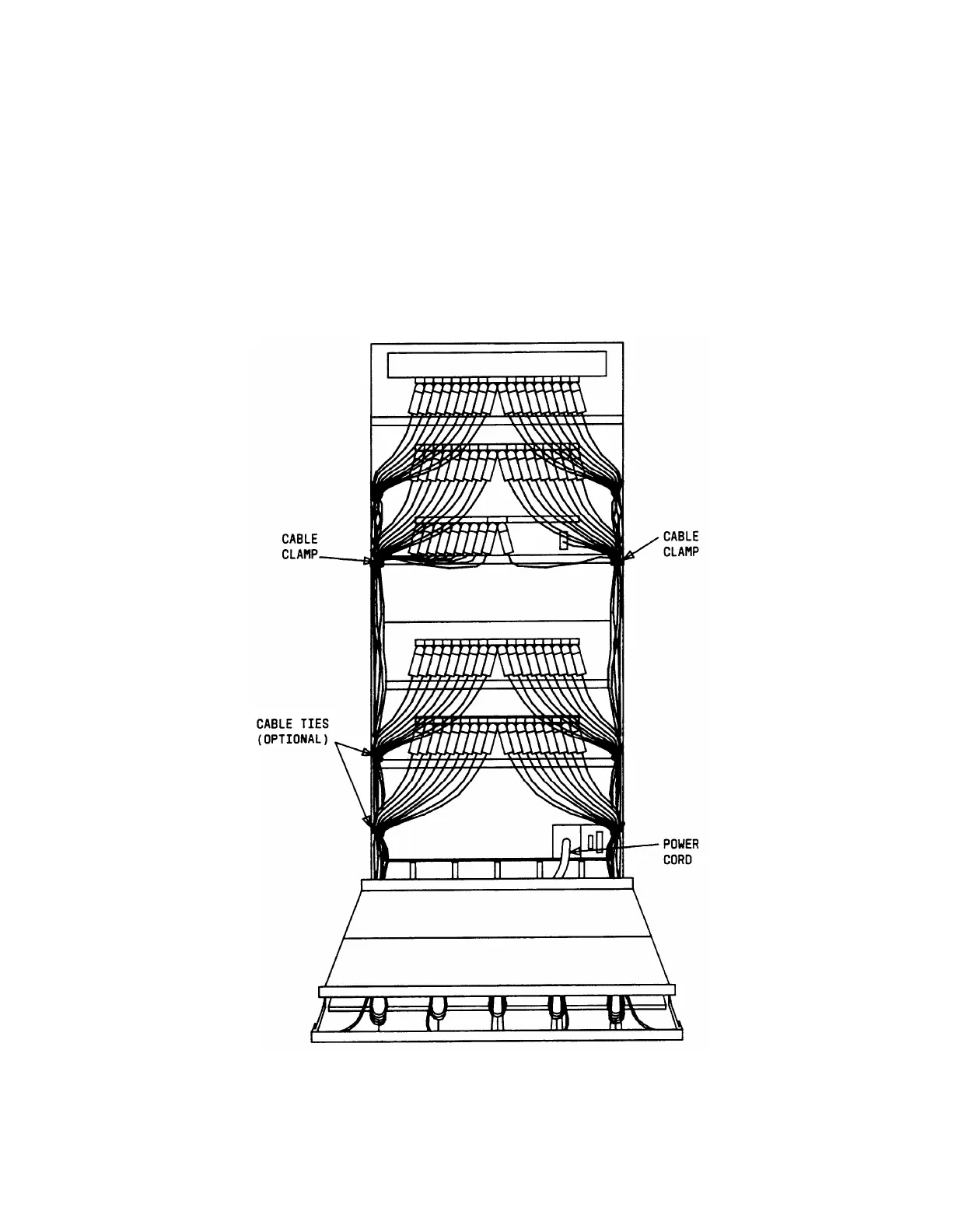

Figure 2-45. Typical Port Cable Installation at Switch Cabinet
2-64
