Z100-TYPE HARDWARE
Multi-Section Cross-Connect Field
SECTION TIE LABELS—GREY

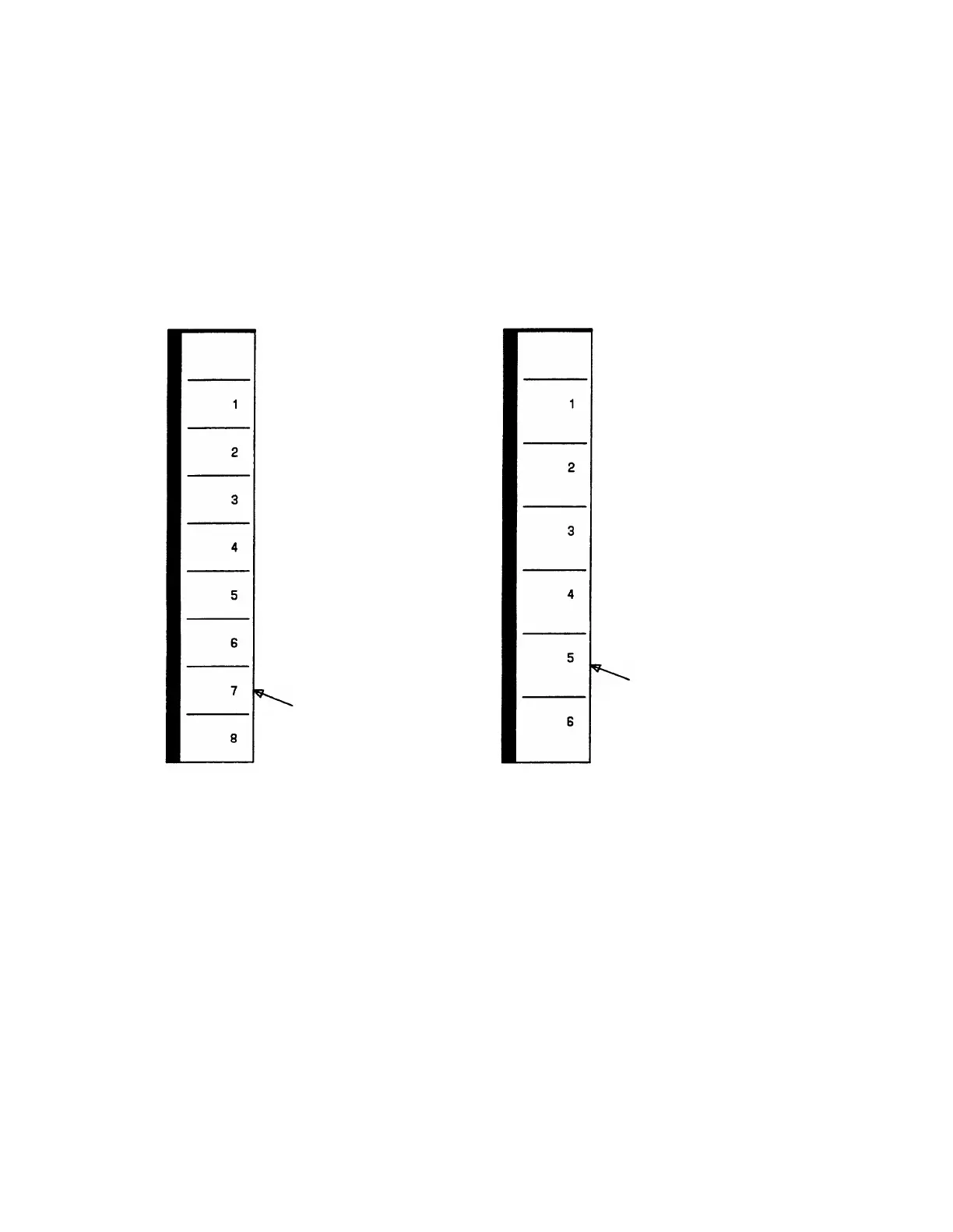

The labels shown in Figure 2-33 are used at the end of a section of a multi-section cross-
connect field section to identify 25-pair tie cables that connect between sections. The label
on the left is installed at the end of the purple or white field. The label on the right is
installed at the end of the blue field.
●
●
USAGE:
IDENTIFIES 3-PAIR
PORT OR STATION
APPEARANCES 1 THRU 8.
●
CODE NO:
121A
GREY
USAGE:
IDENTIFIES 4-PAIR
STATION APPEARANCES
1 THRU 6.
●
CODE NO:
120A
GREY
Figure 2-33. Section TIE Labels
2-47
