Z100-TYPE HARDWARE

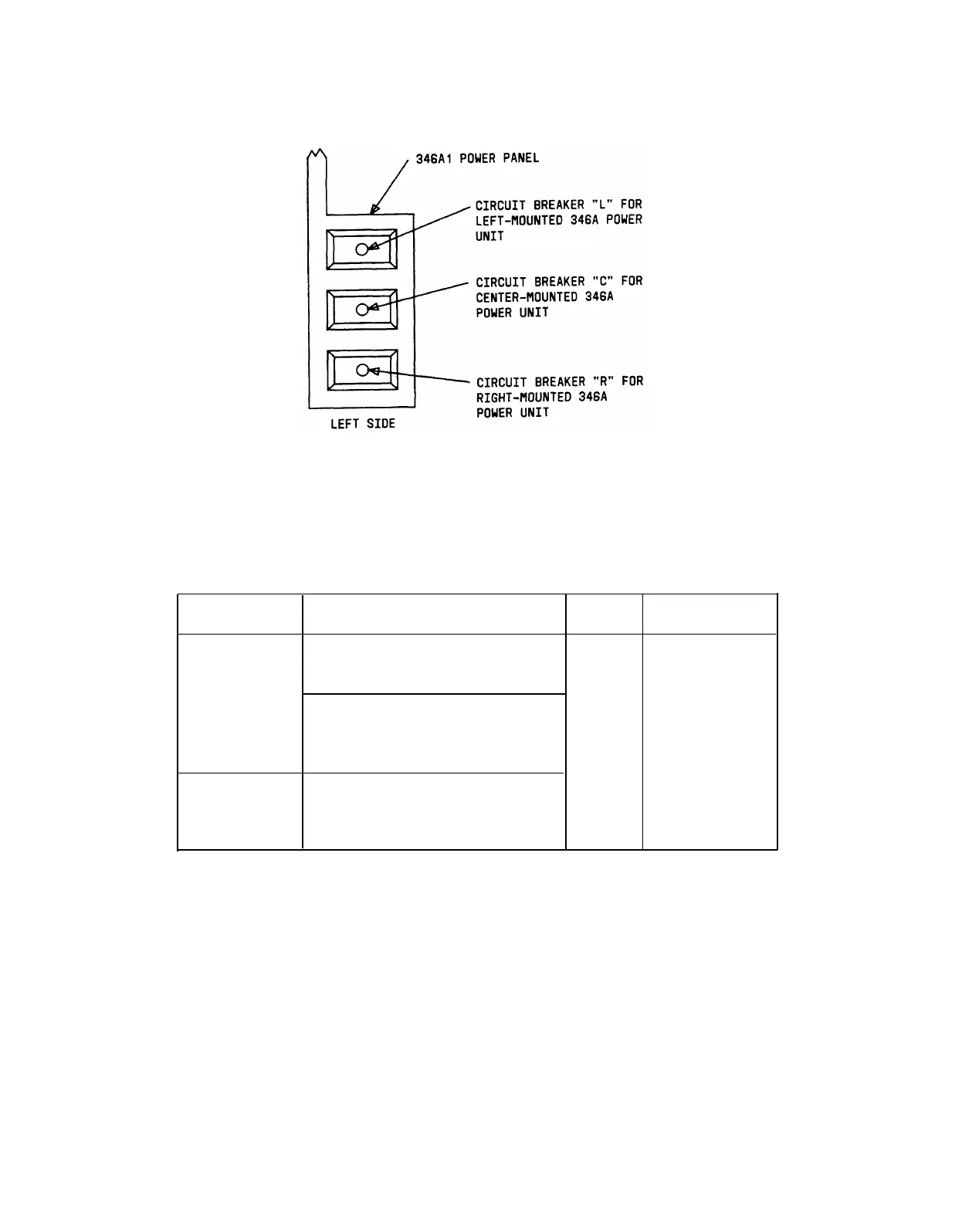

Figure 2-20. 346A1 Power Panel Circuit Breaker Locations
Table 2-D lists adjunct powering limitations for each individual 346A power unit.
TABLE 2-D. 346A Power Unit Adjunct and Distance Limitations
Slide Switch
Adjuncts Powered
Position
(Maximum per Unit)
Any four terminals equipped
with one speakerphone or one
headset
Down (10 w)
Up (20 w)
Any four digital voice
terminals equipped with
one digital module and a
speakerphone or headset each
Any two digital voice terminals
equipped with up to three digital
modules and a speakerphone or
headset each
Wire
Gauge
24
Distance
Feet (Meters)
260 (79.2)
BULK POWER SUPPLY ORDERING INFORMATION
Description Comcode
346A Power Unit
104 174 768
346A1 Power Panel
104 174 750
346Bl Power Panel
104 174 768
