Z100-TYPE HARDWARE

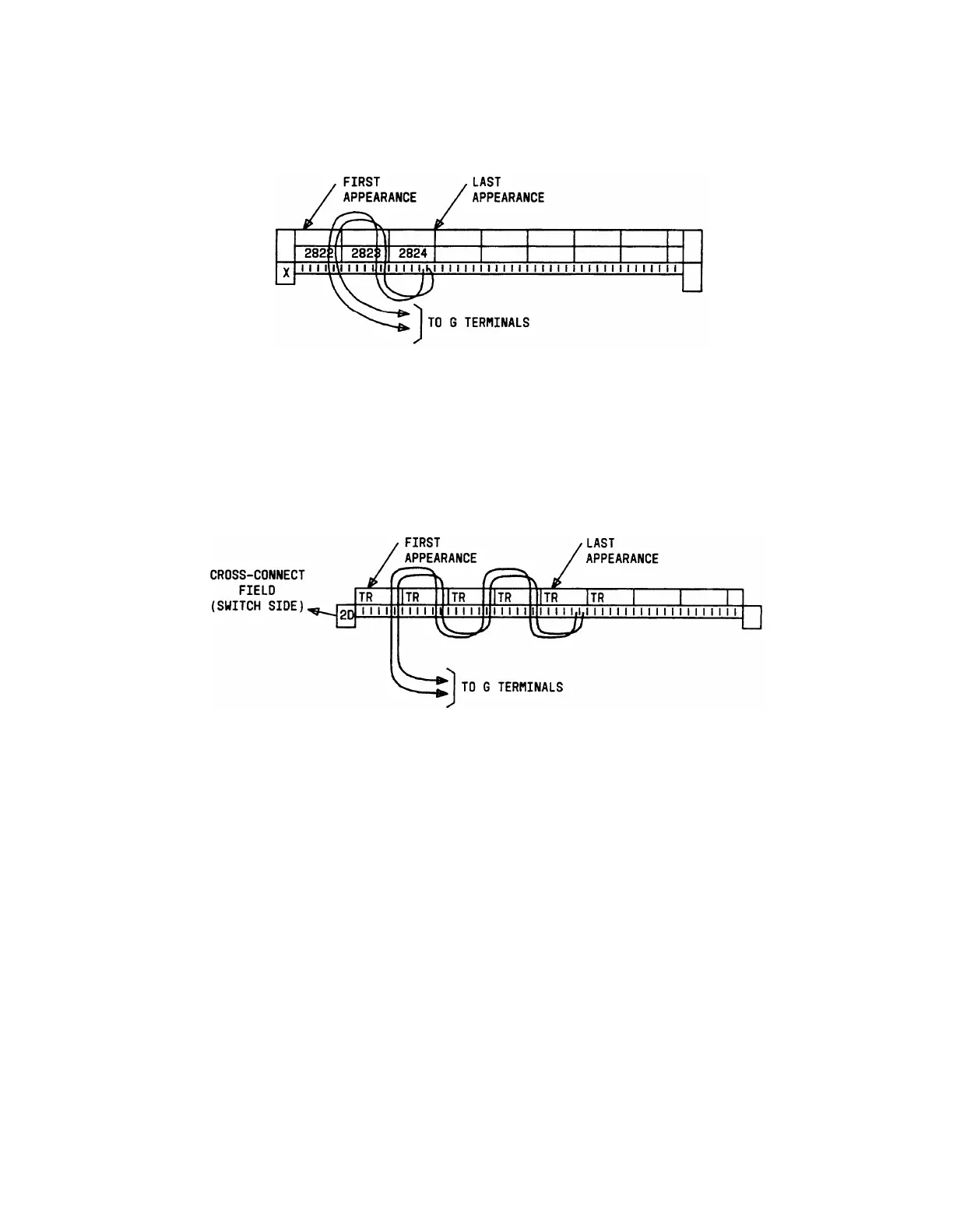

Figure 2-94. Ground Wiring Example (Three Voice Terminals Used Only for
Emergency Transfer)
Figure 2-95. Ground Wiring Example (Five Voice Terminals Used for
Emergency Transfer and as Normal Extensions)
2-136
