Z100-TYPE HARDWARE
3-PAIR STATION LABELS—BLUE AND WHITE
The blue label shown in Figure 2-31 identifies 3-pair station appearances (on-premises and
off-premises) at the cross-connect field. The on-premises labels are installed in sequence (1
to 560) starting with the first connector module installed. The off-premises labels must be
grouped together and installed in sequence (1 to 80) on Z100B1 connector modules (see Note).
Note: Z100B1 connector modules are located at the end of the cross-connect field when
Z100A1 connector modules are used at the cross-connect field to provide 4-pair circuits
from the equipment room to the station wiring.
The white label shown in Figure 2-31 identifies 3-pair station appearances at the cross-
connect field that connect to a satellite location. The white labels must be grouped and
numbered in sequence (1 to N) to correspond to the satellite location labeling.
●
USAGE:
IDENTIFIES 3-PAIR STATION
APPEARANCES THAT CONNECT
TO A 356A ADAPTER. ALSO
IDENTIFIES OFF-PREMISES
STATIONS CONNECTED FROM THE
CABLE ACCESS PANEL. LABELS
ARE NUMBERED IN SEQUENCE
FROM 1 TO 504 FOR 3-PAIR
STATIONS AND FROM 1 TO 80
FOR OFF-PREMISES STATIONS.
●
●
CODE NO:
●
110A THRU 114A,
107A (OFF-PREMISES STATIONS),
109A (UNNUMBERED),
116A (NUMBERED 1 TO 560)
USAGE:
IDENTIFIES 3-PAIR TIE CIRCUIT
APPEARANCES THAT CONNECT
TO A SATELLITE LOCATION. THE
LABELS ARE NUMBERED IN
SEQUENCE FROM 1 TO 160.
CODE NO:
122A (NUMBERED)
123A (UNNUMBERED)
WHITE
BLUE

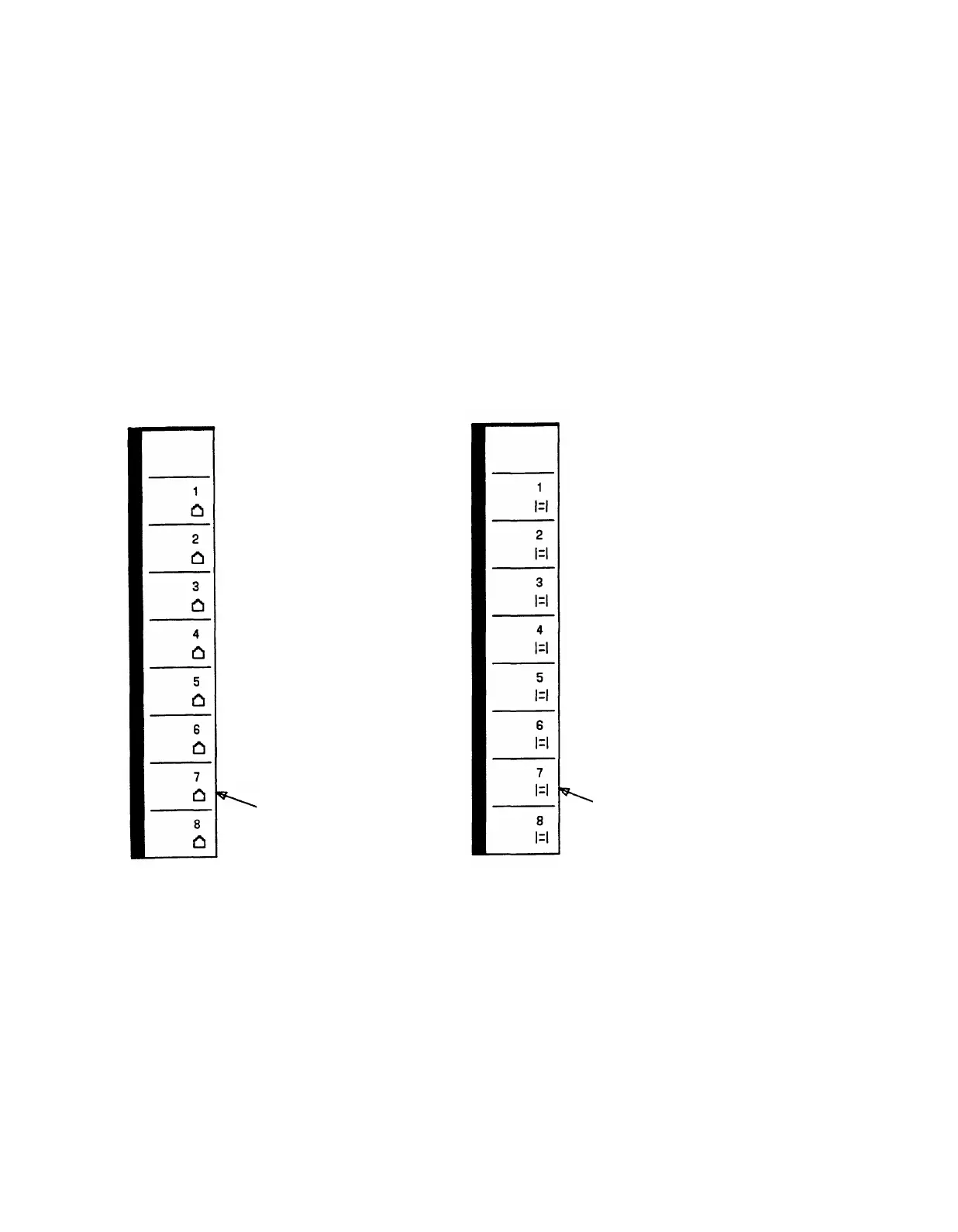

Figure 2-31. 3-Pair Station Appearance Labels
