AT&T 75 - Figure 2-113 Connections for Analog Line Port to Wake-Up Announcement Unit

Z100-TYPE HARDWARE

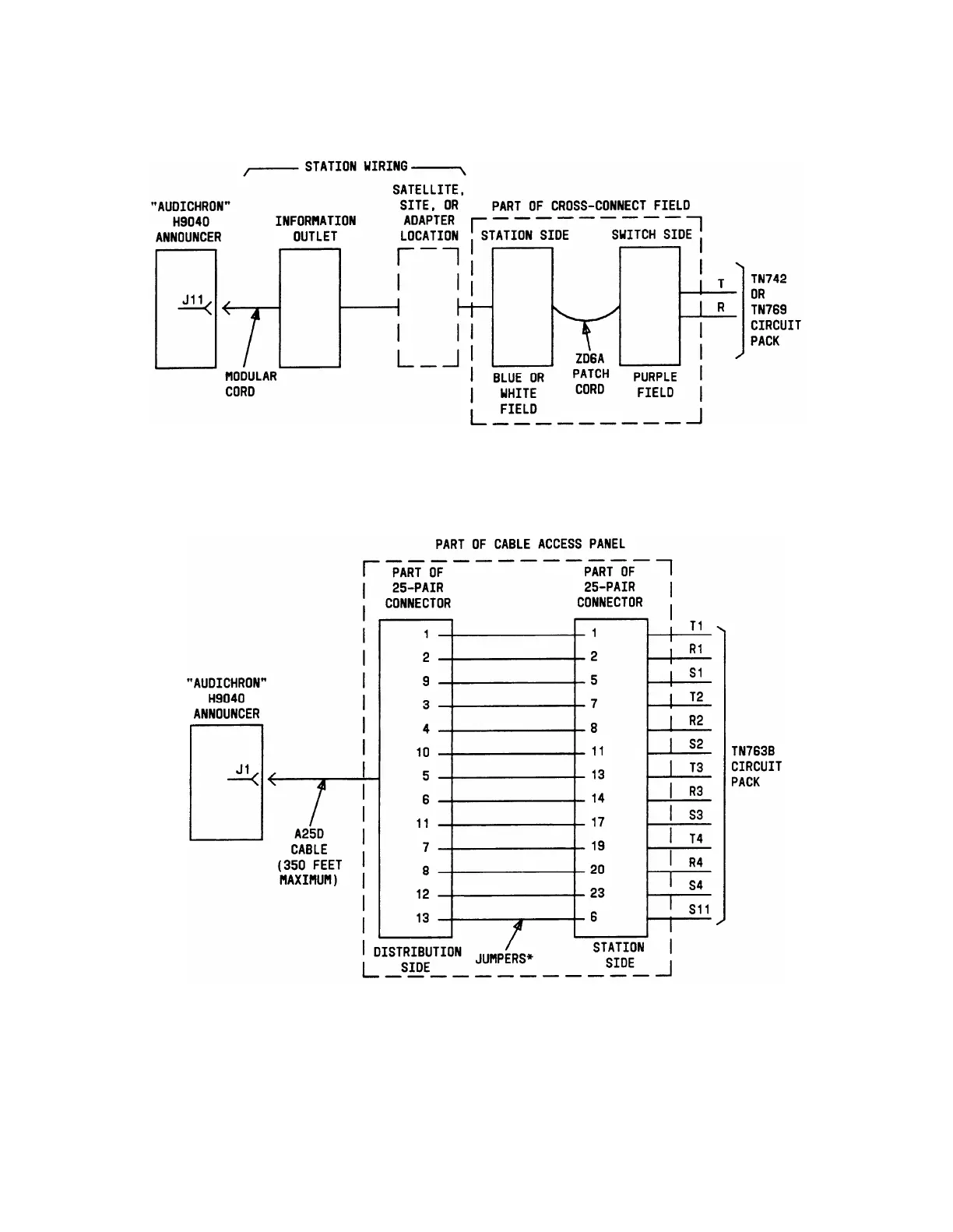

Figure 2-113. Connections for Analog Line Port to Wake-Up
Announcement Unit
*
JUMPERS MUST BE PLACED ON THE 110 TERMINAL BLOCK
ROWS INSIDE CAP. TERMINAL NUMBERS SHOWN ARE 110
TERMINAL BLOCK NUMBERS, REFER TO TABLE 3-A IN THE
110 SECTION FOR CONVERSION FROM CONNECTOR PIN NUMBERS.
Figure 2-114. Connections for Auxiliary Trunk Circuit Pack to Wake-
Up Announcement Unit
2-164
