9.7. DYNAMIC LIGHT BOARD AS1656
LD3
LD2
LD4
LD5
LD7
LD6
LD8
CN8
CN7
CN5
CN6
SW2
SW1
CN9 CN1 CN2LD1

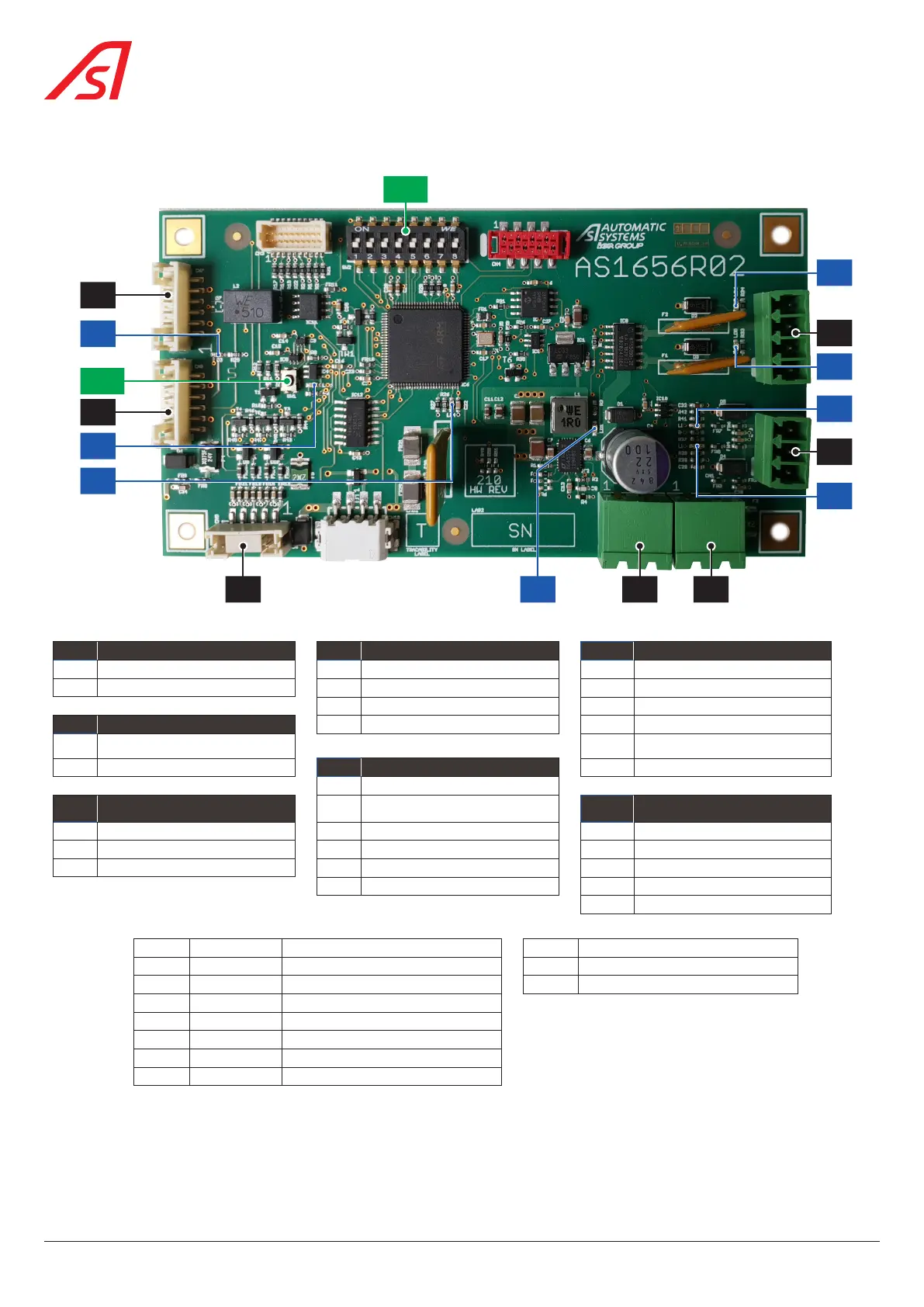

Fig. 111 - Dynamic light board AS1656
CN1 POWER INPUT 24VDC CN5 DIGITAL OUTPUTS CN8 LOCAL CAN BUS (AS1613)
1 +24 VDC 1 OUT 1 1 +24 VDC
2 GND 2 GND 2 GND
3 OUT 2 3 CAN +
CN2 POWER OUTPUT 24VDC 4 GND 4 CAN -
1 +24 VDC 5 GND
2 GND CN7 LOCAL CAN BUS (DIRAS E) 6 +24 VDC
1 +24 VDC
CN6 DIGITAL INPUTS 2 GND CN9 DYNAMIC LIGHTS
1 +24 VDC 3 CAN + 1 +5 VDC
2 IN 1 4 CAN - 2 I2C INT
3 IN 2 5 GND 3 I2C SDA
6 +24 VDC 4 I2C SCL
5 GND
LD1

Green Voltage present SW1 Reset button
LD 2

Green Watchdog SW2 CAN address DIP switches
LD 3

Yellow CAN bus statua CN4 Debug connector
LD 4

Red Defect present
LD 5

Yellow Digital output 1 status
LD 6

Yellow Digital output 2 status
LD 7

Green Digital input 1 status
LD 8

Green Digital input 2 status
