5. Unscrew the two (2) screws, nuts and washers holding the extension to the main frame of the gate at the top, as shown in
detail B in the figure above;
6. Place the extension in a safe place, out of the way, so that it cannot be damaged.
8.18. REMOVING A HOUSING EXTENSION WITH FILLER STAINLESS STEEL PANELS
1. Remove the right side panel - side A ( Chap. 8.3, page 54);
2. Turn off the power supply to the device ( Chap. 8.3, page 54);
3. Remove the cover ( Fig. 80, page 72):
- Insert the key in the lock, located under the horizontal strip of the extension, and turn counter-clockwise;
- Pull the cover upwards;
- Place the cover in a safe place, out of the way, so that it cannot be damaged.
4. Remove the front panel of the extension ( Fig. 81, page 72):
- Slightly unscrew the two (2) nuts with integrated lock washers so that the front panel can be removed:
κ Pull the front panel upwards and out of the extension frame;
κ Place it in a safe place, out of the way, so that it cannot be damaged.
5. Unscrew the two nuts and remove the washers from the two (2) fixing points located in the foot of the extension frame, as
shown in detail A in the figure below;
A
B
C

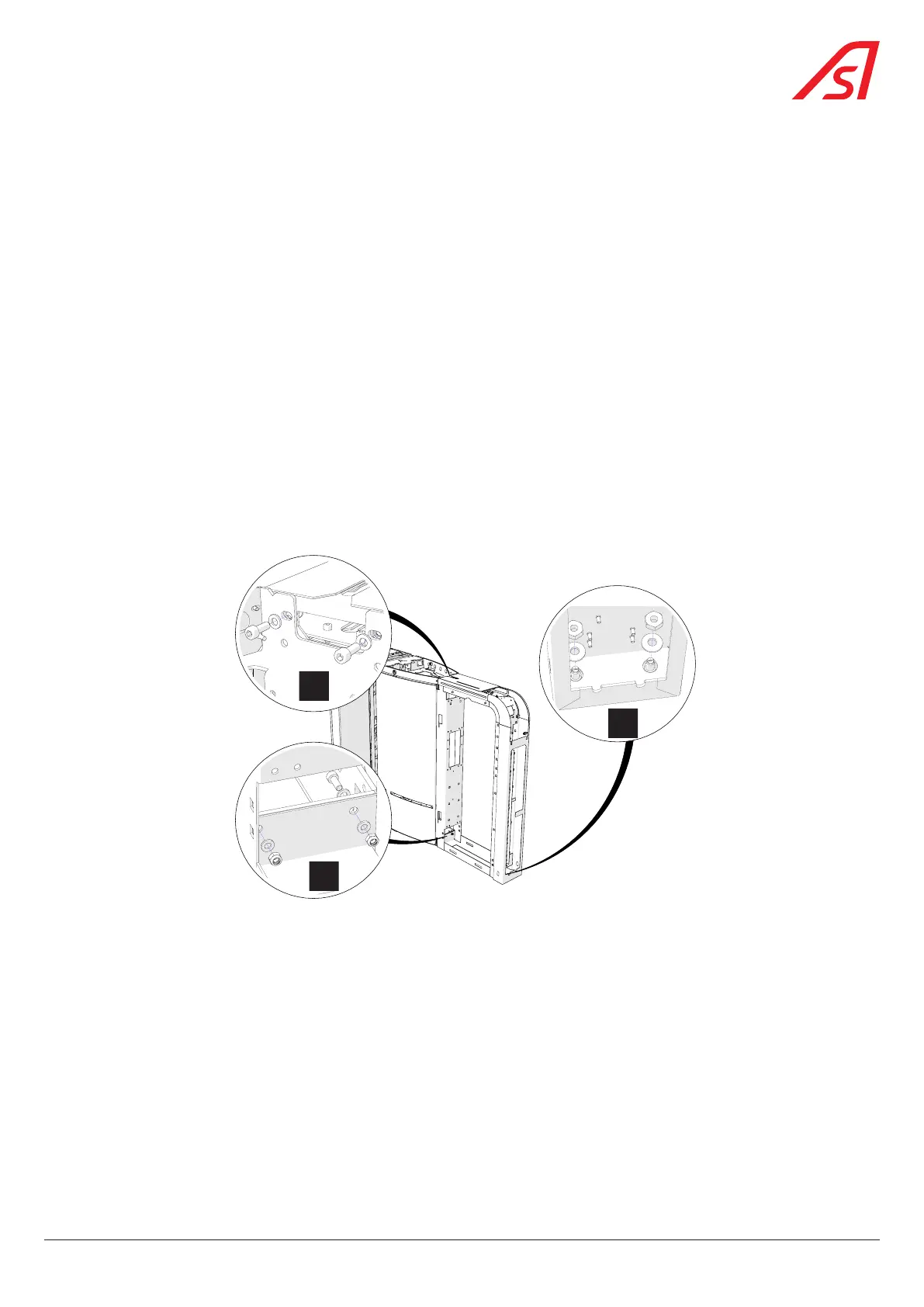

Fig. 83 - Housing extension with filler stainless steel panels fixing points
6. Unscrew the two (2) screws, nuts and washers holding the extension to the main frame of the gate at the top, as shown in
detail B in the figure above;
7. Unscrew the two (2) screws, nuts and washers holding the extension to the main frame of the gate at the bottom, as shown
in detail C in the figure above;
8. Place the extension in a safe place, out of the way, so that it cannot be damaged.
73
