4.7. LOCATION OF THE EXTERNAL COMPONENTS
The following illustrations apply to both standard units and wide units.
4.7.1. LEFT UNIT
4
8
21
10
5
3
6
7
9
10
12

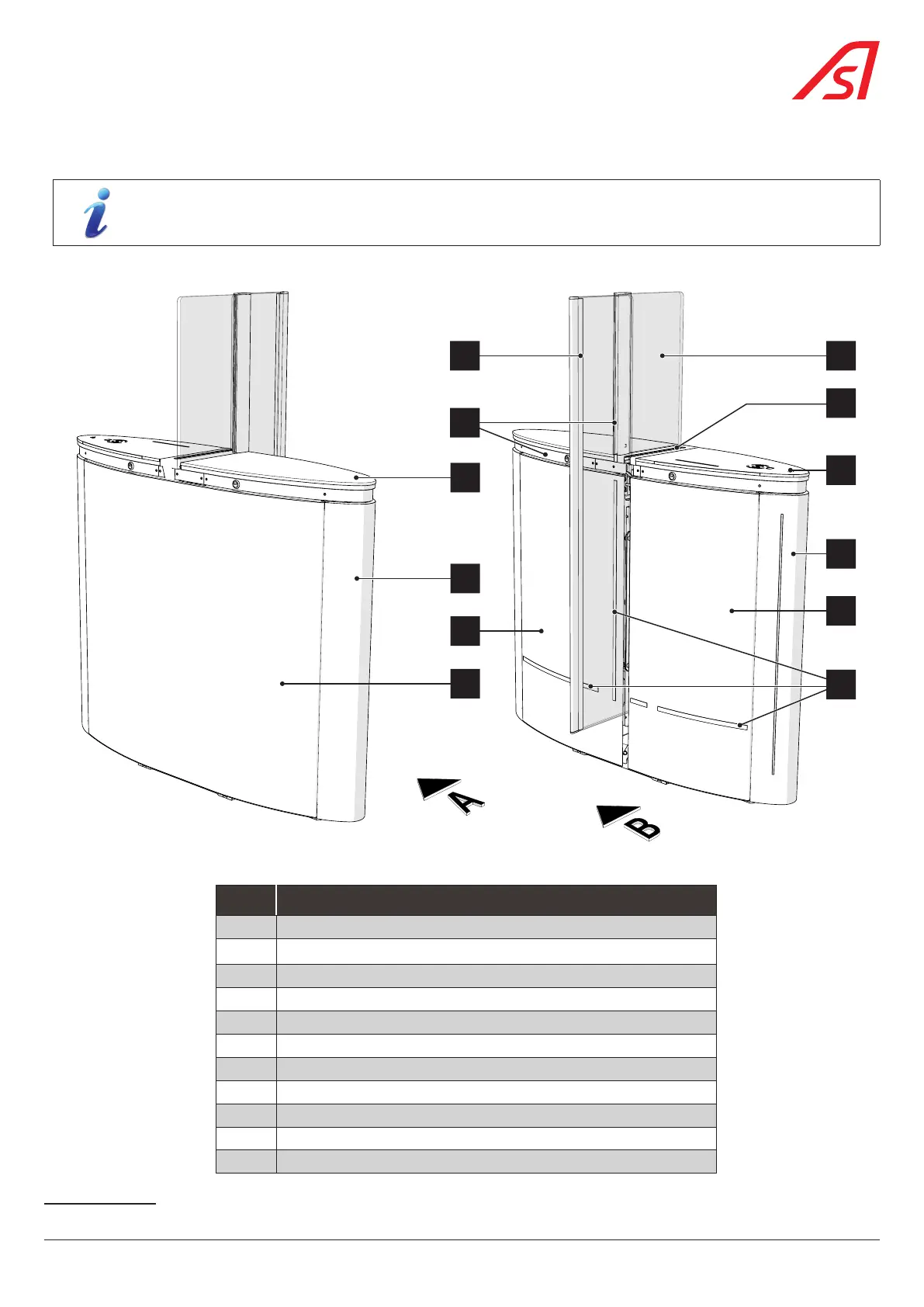

Fig. 7 - Location of the external components of the Standard SmartLane gate, left
REF. DESIGNATION
1 Mobile obstacle
2 Fixed obstacle
1
3 Glass plate with dynamic status light/RFID logo
4 Front panel with dynamic orientation light
5 Glass plate without dynamic status light / RFID logo
6 Front panel without dynamic orientation light
7 Rear panel
8 Right panel
9 Left panel
10 DIRAS detectors (Transmitter) behind a tinted screen
12 Flap
1 If mobile obstacle height ≥ 1200 mm
17
