101

SmartLane

9.8. CAN ADDRESSES OF THE DIFFERENT CIRCUIT BOARDS

LEFT UNIT /

INTERMEDIATE

RIGHT UNIT /

INTERMEDIATE

E1V

R1V

E2V

R2V

E3V

R3V

E1H

E2H

E5H

R6H

E6H

R5H

E3H

R3H

R2H

E4H

R4H

R1H

AS1605

AS1603

AS1656

AS1190

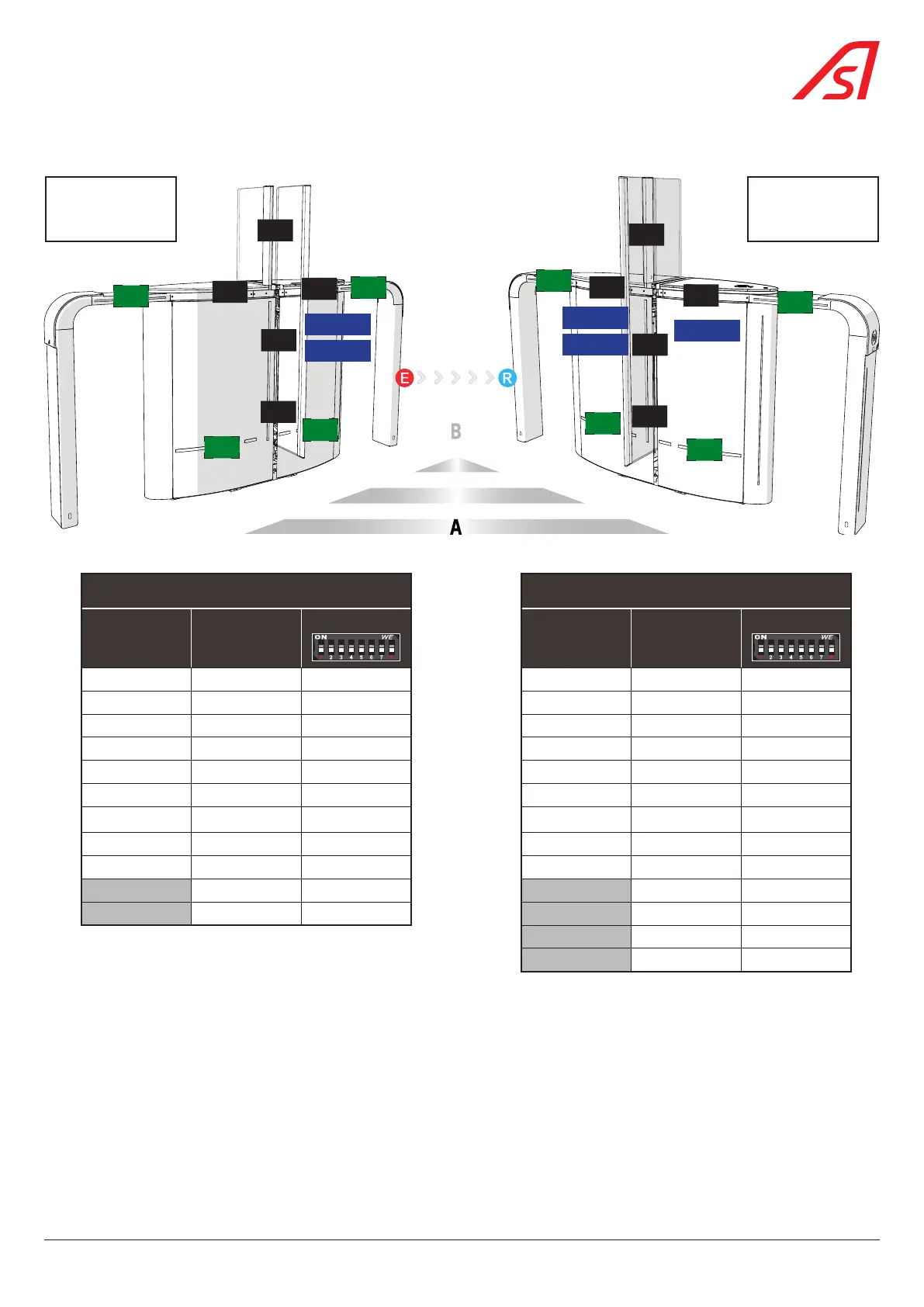

Fig. 112 - CAN addresses

LEFT/INTERMEDIATE UNIT RIGHT/INTERMEDIATE UNIT

REFERENCE BOARD

CAN ADDRESS

REFERENCE CIRCUIT BOARD

CAN ADDRESS

E1H * AS1642 00010101 R1H * AS1643 00010001

E2H AS1652 10010101 R2H AS1653 10010001

E3H AS1652 01010101 R3H AS1653 01010001

E4H * AS1642 11010101 R4H * AS1643 11010001

E5H AS1652 00100101 R5H AS1653 00100001

E6H AS1652 10100101 R6H AS1653 10100001

E1V AS1642 00110101 R1V AS1643 00110001

E2V AS1642 10110101 R2V AS1643 10110001

E3V AS1642 01110101 R3V AS1643 01110001

AS1605 10000011 AS1190

AS1656 00100011 AS1603 00000011

AS1656 11000011

ATV320 10000001

(*) With optional extension
