Automatic Systems SmartLane - General Dimensions; Fig. 4

To Next Page

To Previous Page

REF. DESIGNATION

1 Standard SmartLane Left

2 Standard SmartLane Intermediate

3 Intermediate SmartLane Hybrid Left

4 Wide SmartLane Intermediate

5 Intermediate SmartLane Hybrid Right

6 Standard SmartLane Right

4.5. GENERAL DIMENSIONS

200

1000

1020

241118

600 450 900 450 300

1200

146

391118

146

Left standard gate Right wide gate

Left hybrid

intermediate gate

STANDARD LANE WIDE LANE

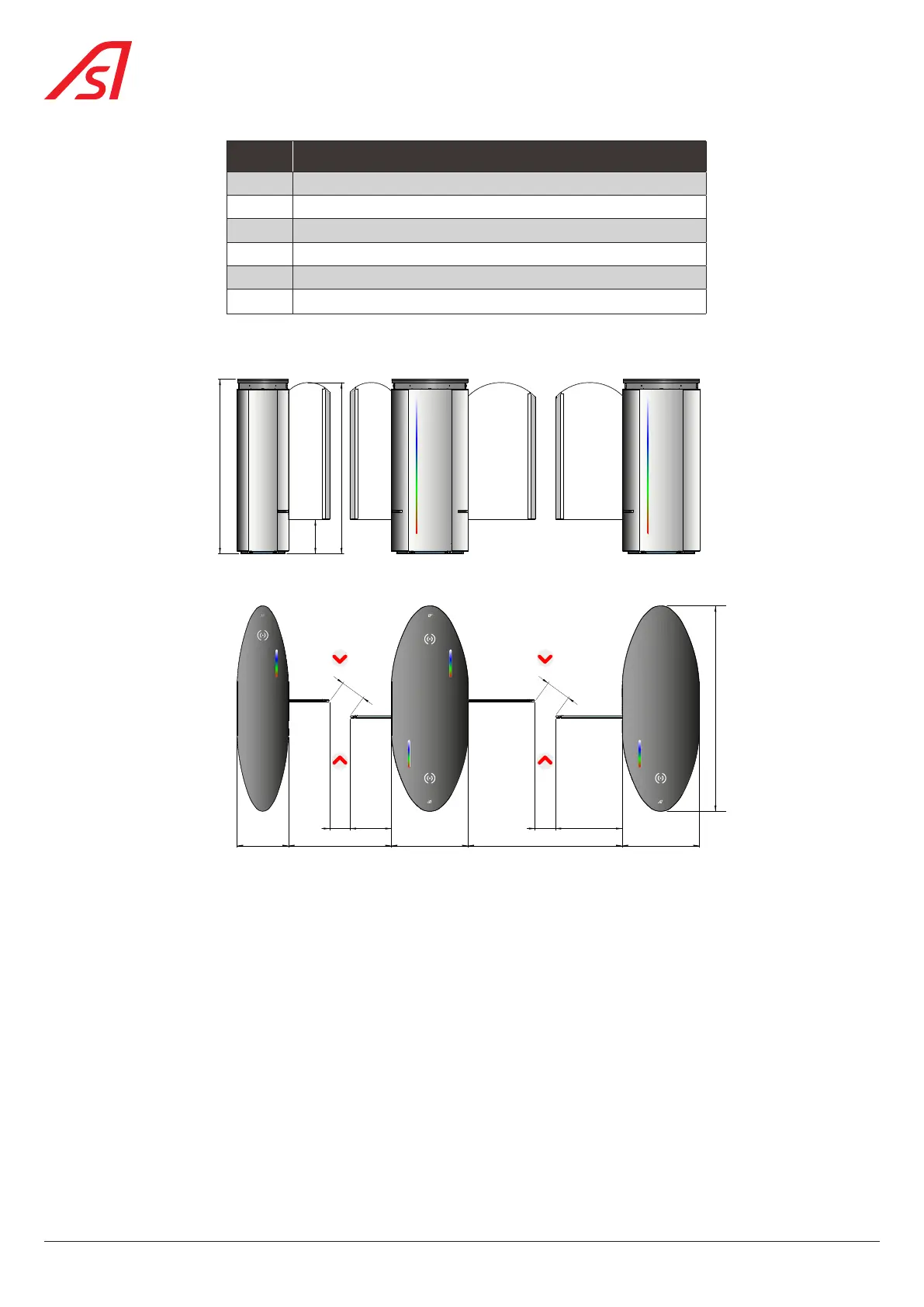

Fig. 4 - General dimensions (No extensions)
