The 'Compass' and 'Compass Mounting' components are identical to those of the standard kinematic. ( Fig. 94,
page 82)
STANDARD SMARTLANE
NARROW OBSTACLE
WITH/WITHOUT PROFILE
SPRING TYPE SHAFT POSITION COMPASS POSITION COMPASS FIXING POSITION
1000 Single 04 A 8 A8
1200 Single 02 A 1 A6
1500 Single 02 A 1 A7
1700 Single 02 A 1 A6
1800 Single 02 B 1 A5
1900 Single 02 B 1 A4
2000 Single 02 B 1 A4
WIDE SMARTLANE
WIDE OBSTACLE
WITH/WITHOUT PROFILE
SPRING TYPE COMPASS POSITION COMPASS FIXING POSITION
1000 Single 02 1 A4
1200 Double 04 3 A1
1500 Double 02 7 A2
1700 Double 02 7 A3
1800 Double 02 7 A3
1900 Double 02 7 A3
2000 Double 02 7 A3
8.25. REMOVING A MOTOR
A
C
B
D
3
2
4
6
5
1

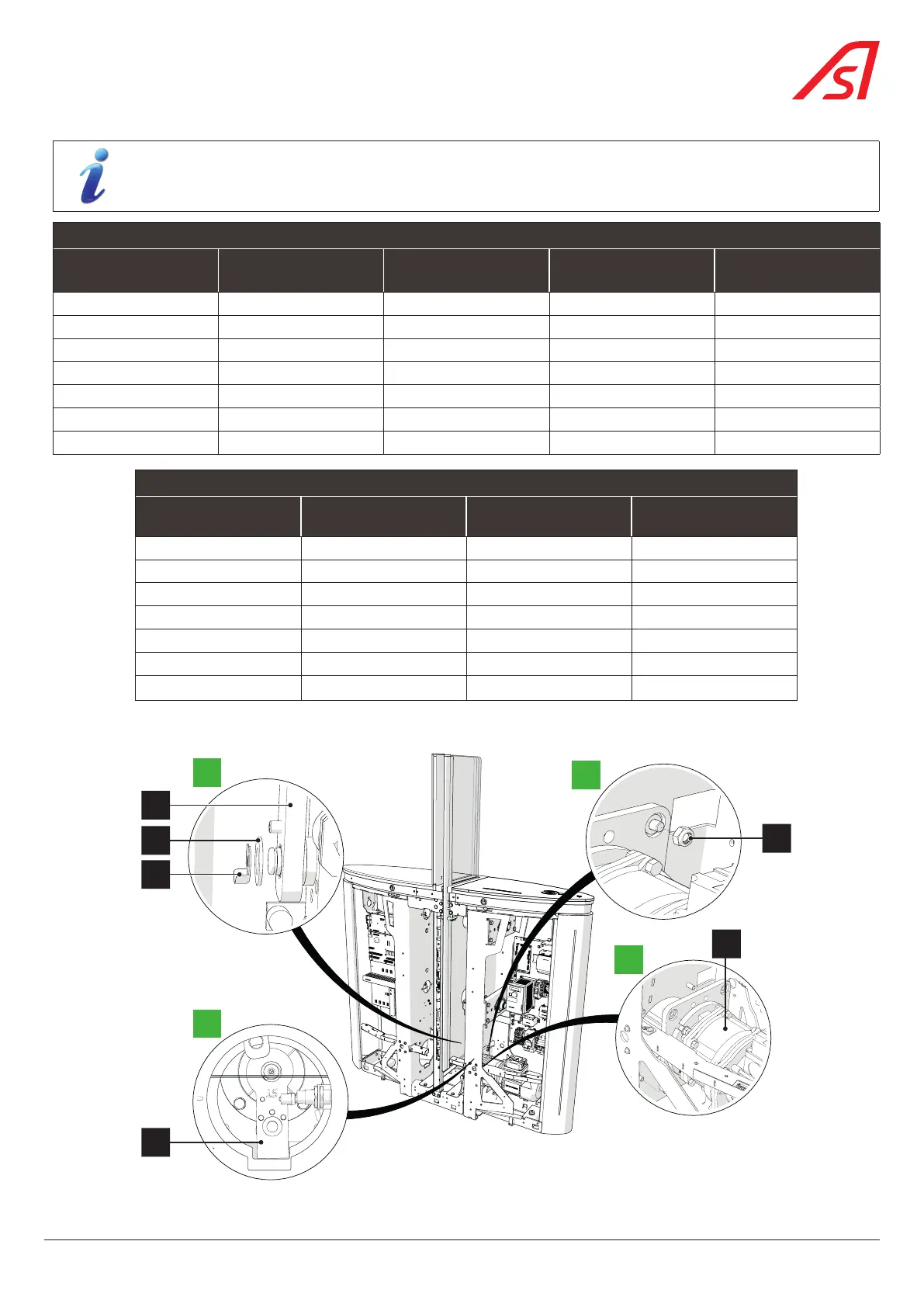

Fig. 96 - Removing a motor
83
SmartLane
