Level with an appropriate
grouting

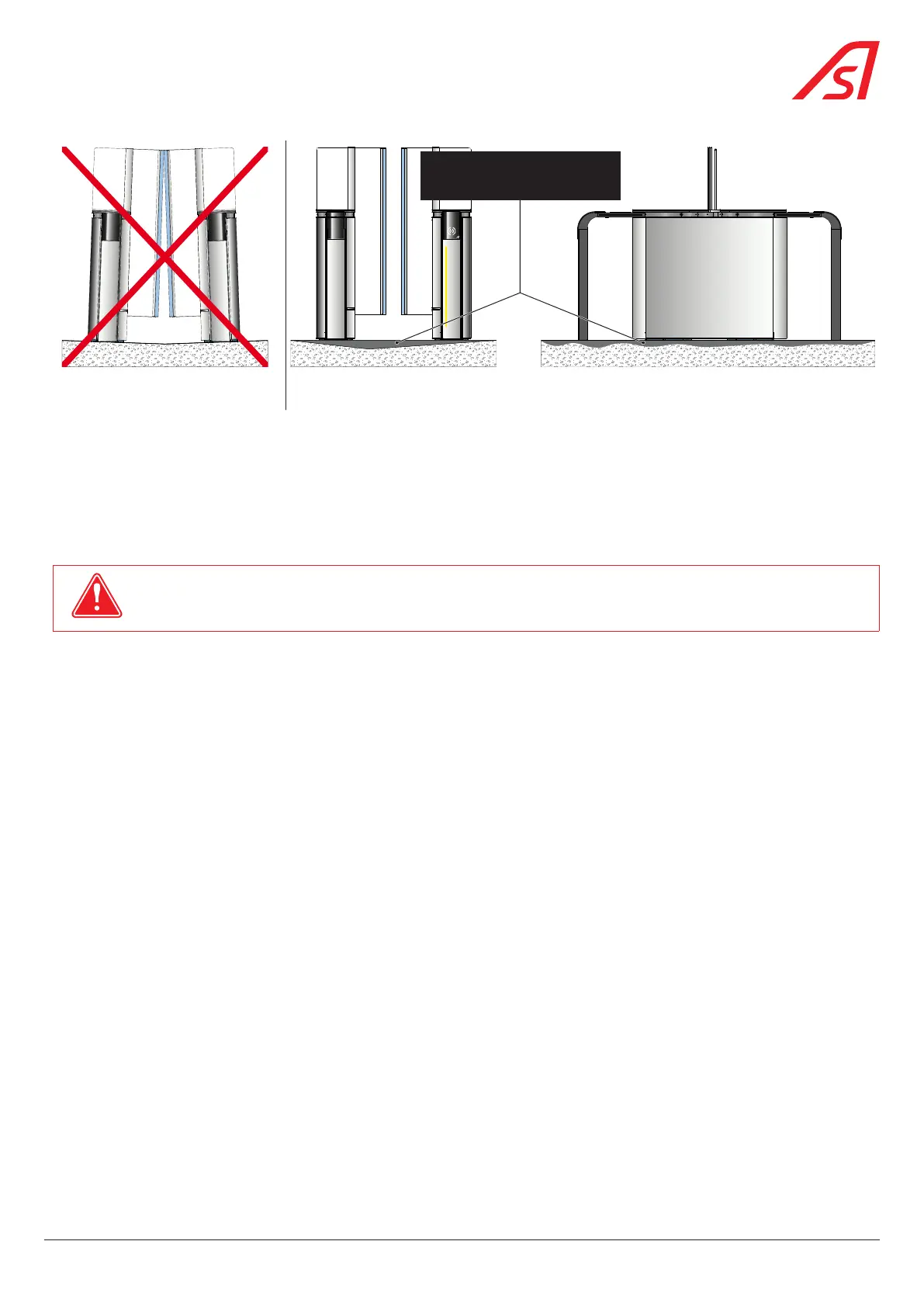

Fig. 22 - Do not exceed the flatness
tolerance.
Fig. 23 - Levelling the floor
• If the floor is uneven or has an uneven surface, Automatic Systems recommends grouting as shown below. ( Fig. 23)
• Steel shims can be added between the gate frame and the fixing surface.
• The thickness of the shims should not exceed 10 mm for each unit.
The entire base of the gate must lie flat on the floor. Under no circumstances should it be supported by its anchor points alone.
To ensure that the gate rests evenly over its entire footprint, stainless steel shims (supplied with the system) may be required.
NB!
THE CENTRAL AREA OF THE GATE (AREA WHERE THE MOVING GLASS OBSTACLES RETRACT INTO THE GATE) MUST
BE PARTICULARLY WELL SUPPORTED. INADEQUATE SUPPORT WILL CAUSE VIBRATIONS DURING NORMAL OPERATION.
5.4. STORAGE
Prior to installation, avoid any impact on the equipment and leave it in its original packaging in a dry place, protected from dust,
heat and the weather (see also “Technical specifications”, page 16).
Storage temperature range: -30 to +80 °C.
5.5. RECOMMENDED TOOLS
• Electrician's toolkit: screwdrivers, pliers, etc. (For electrical connection);
• Mallet (to anchor the equipment to the floor);
• Drill + drill bits suitable for the type of floor, up to 15 mm dia. (To anchor the equipment to the floor);
• Ratchet wrench + articulated with dial + extension + socket set. (To anchor the equipment to the floor and various other
operations);
• Cat 6 S/FTP unshielded Ethernet cable + RJ45 connector + crimping pliers. (To connect the lane to the network, if necessary);
• PC + mini USB or RJ45 Ethernet cable or supervision panel. (Optional) (To configure the lanes);
• Circlip pliers;
• Set of Allen keys.
29
SmartLane
