4.8. LOCATION OF THE INTERNAL COMPONENTS
4.8.1. RIGHT CABINET
3
2
4
6
8 71 11
0
11
2
4
5

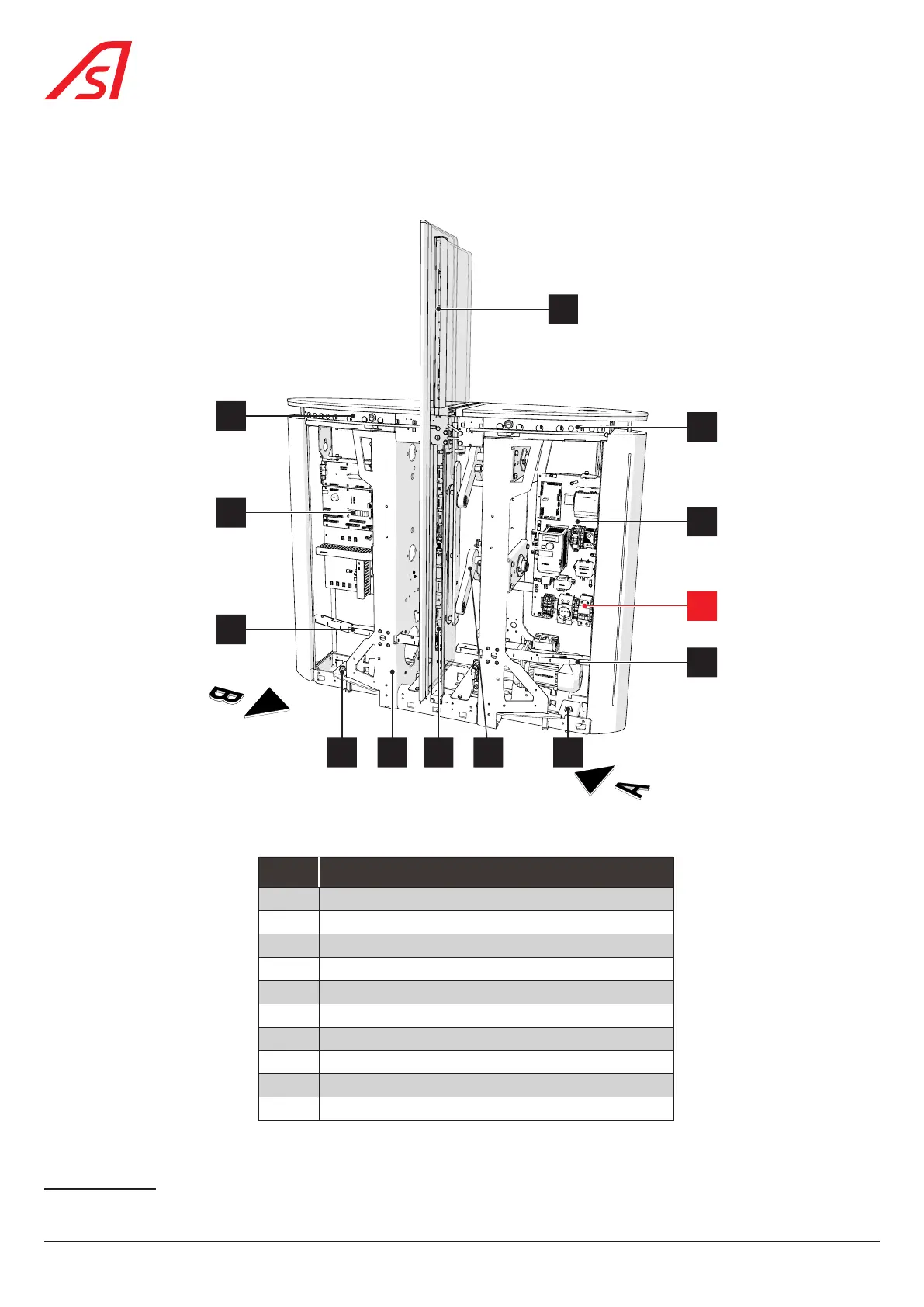

Fig. 10 - Internal components - Right cabinet
REF. DESIGNATION
0 Main circuit breaker
1 Frame
2 Assy. DIRAS (Receiver) low plane
4
3 Assy. - Logic board, right
4 Assy. DIRAS (Receiver) high plane
5 Assy. Fixed obstacle detection (Receiver)
5
6 Assy. Board power
7 Assy. Kinematics
8 Assy. DIRAS (Receiver) vertical plane
11 Fixing clamp
4  ‘Trolley’ type reinforced DIRAS electronic detection option
5 E/R cell if mobile obstacle height = 1200 mm, DIRAS if mobile obstacle height ≥ 1500 mm.
