8.15.2. REMOVING A LONG PLATE (UNITS WITH LOW GLASS OBSTACLES)
0
0
1/4
1/2
3/4
1
1/4
1 2 3
mm cm inch
2
1

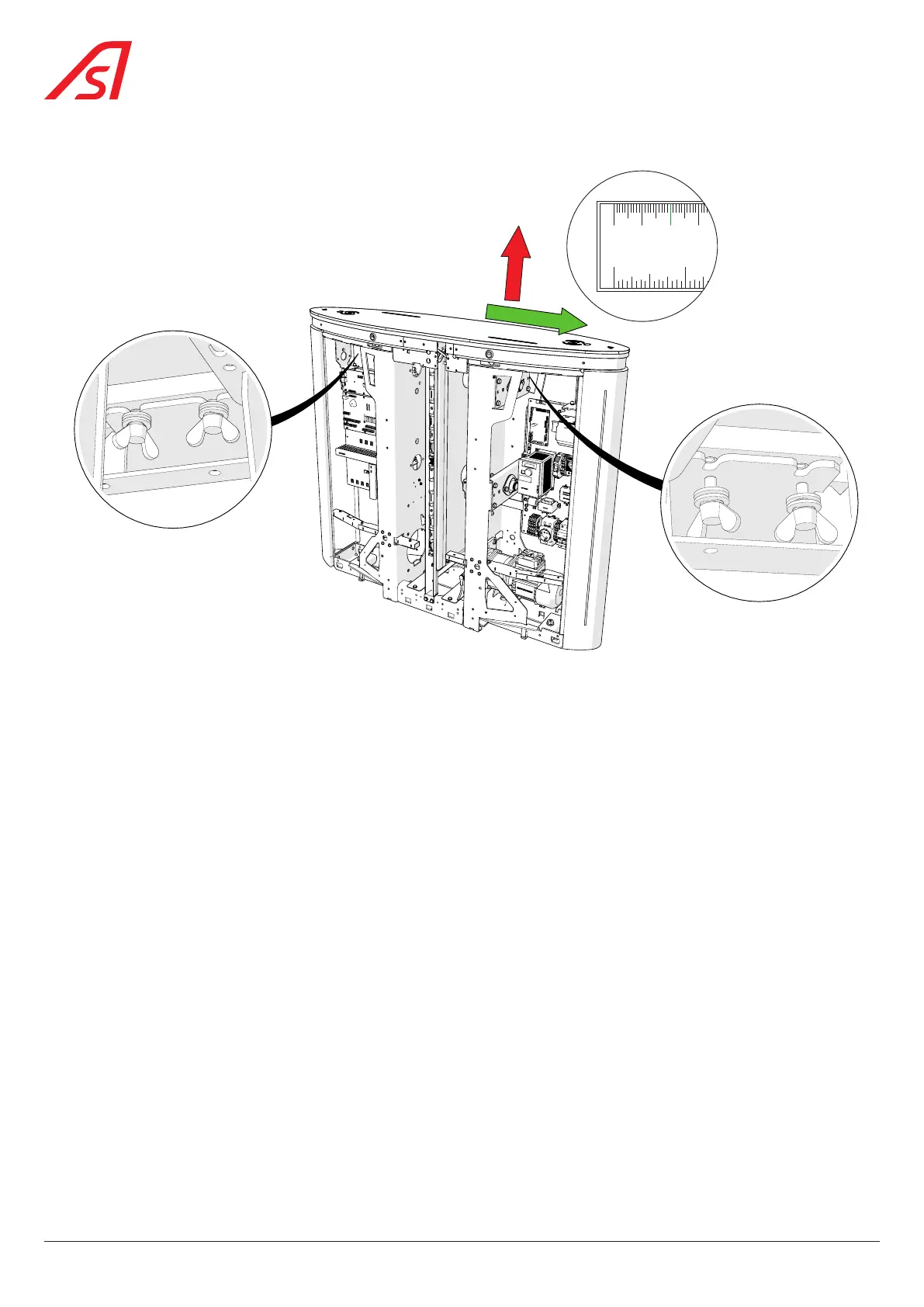

Fig. 77 - Removing a long plate
1. Switch off the device ( Chap. 8.3, page 54) and remove the second panel located under the long plate to be removed;
2. On the one side, remove the two (2) butterfly screws and put them in a safe place so that they can be used later to replace
the plate;
3. On the other side, unlock the two (2) butterfly screws, without removing them;
4. Slide the plate ± 20 mm forward (towards the front) and then lift it off.
5. Remove the plate safely.
