8.26.3. SMARTLANE SPECIFIC CONFIGURATION SETTINGS (NEW GENERATION)

[50.000 bauds (kbit/s)]

[OFF > 127]

[125.000 bauds (kbit/s)]

[250.000 bauds (kbit/s)]

[500.000 bauds (kbit/s)]

[1 Mbauds (Mbit/s)]

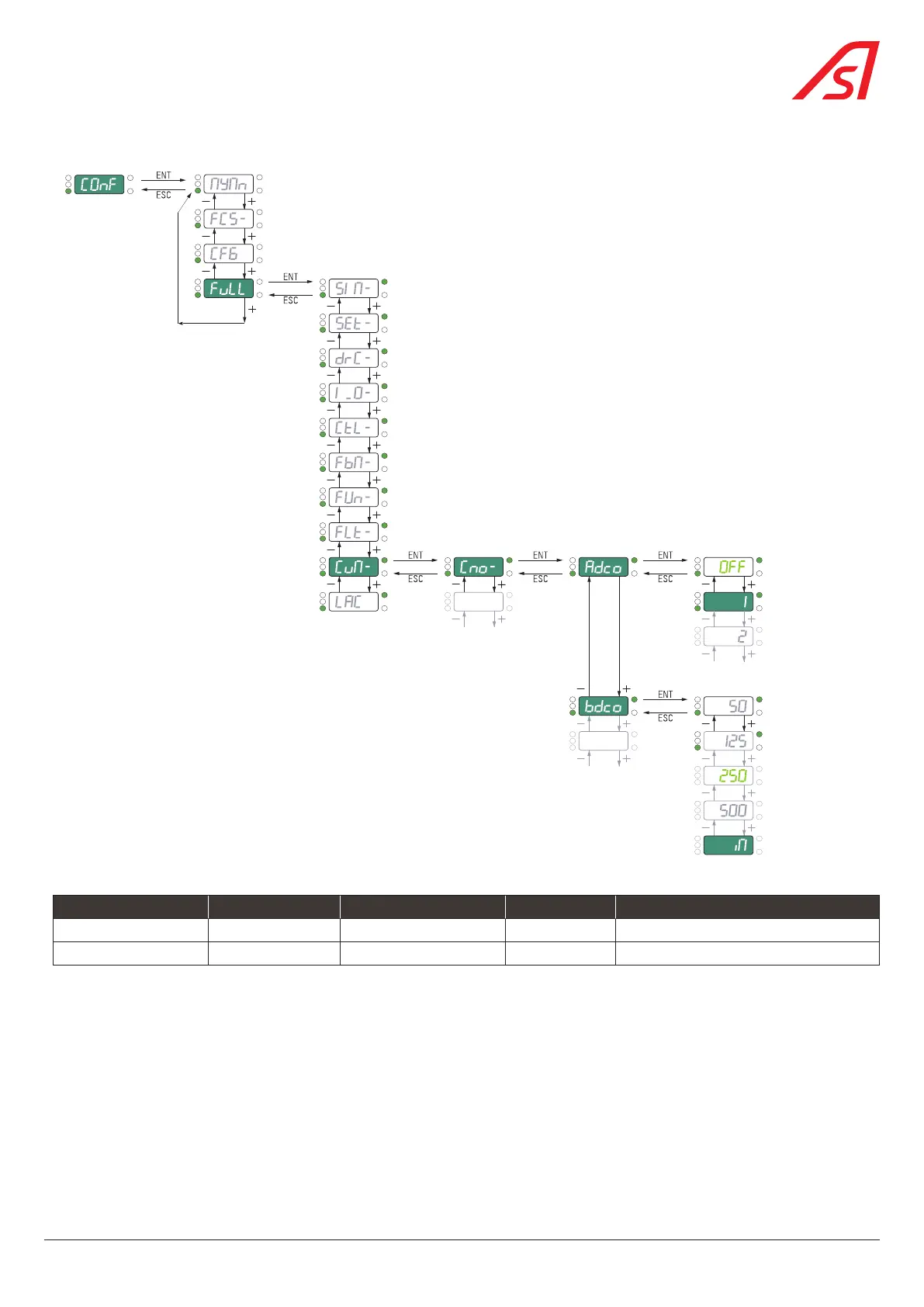

Fig. 98 - Variable frequency inverter menu tree

MENU SETTING DESIGNATION VALUE COMMENT(S)

CONF  FULL  COM AdCo CAN Open address 1 Address N°1

CONF  FULL  COM bdCo CAN Open speed 1M 1 Mbit/s
