Automatic Systems SmartLane - Assy. Board Power; Fig. 15

To Next Page

To Previous Page

4.8.5. ASSY. BOARD POWER

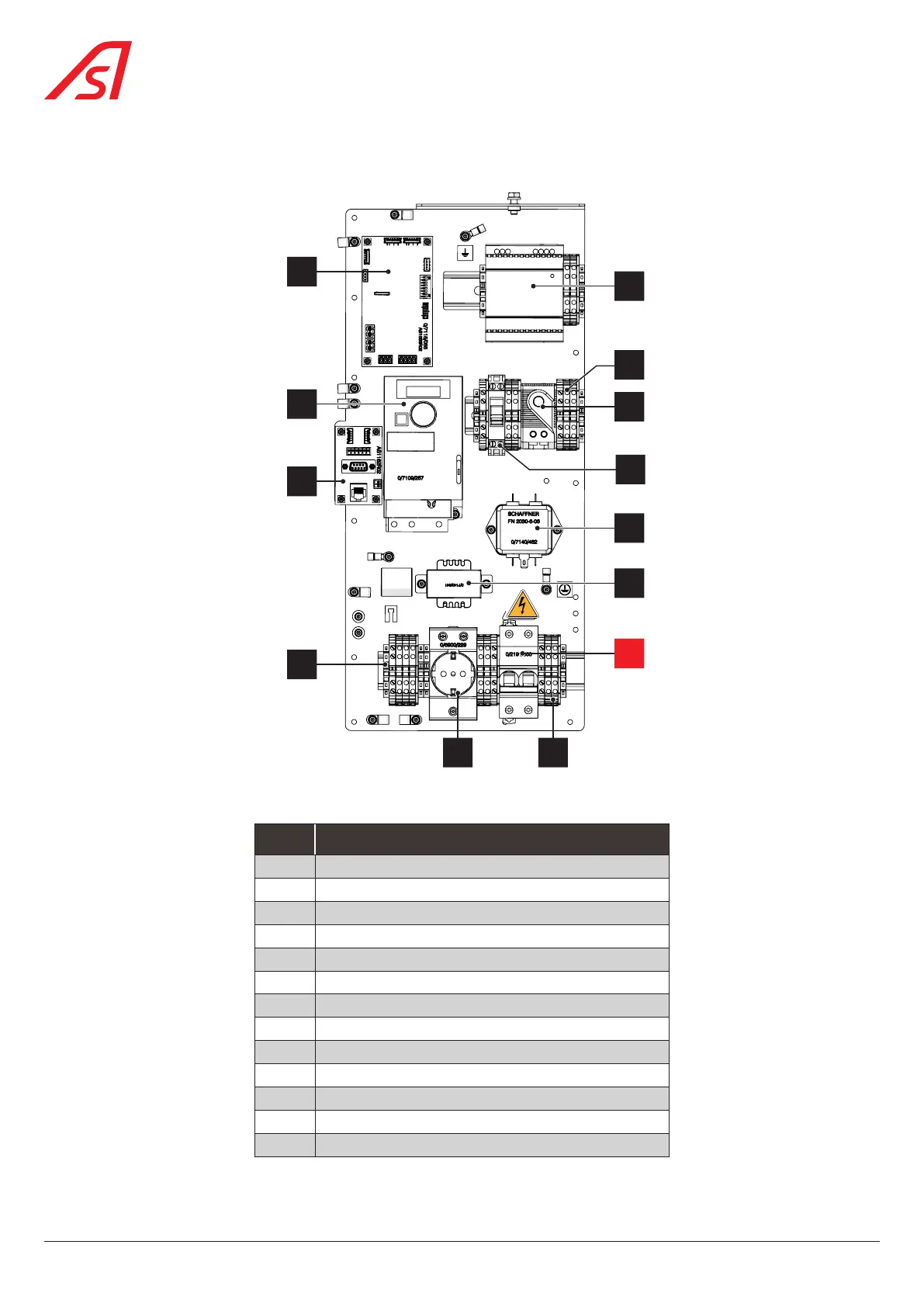

Fig. 15 - Board power

REF. DESIGNATION

0 Main circuit breaker

1 Power supply terminal block

2 DIN rail mono socket option

3 Motor cable connection terminal block

4 AS1162 board - Variable drive Can

5 Variable frequency inverter ATV320

6 AS1656 board - Dynamic LED strip

7 Regulated power supply

8 Secondary terminal block

9 Heating option

10 Frequency inverter protection

11 Sector filter

12 Self
