4.7.3. INTERMEDIATE UNIT
9
1
2
3
4 4
3
8 8
9
11 10
12 12
11 10

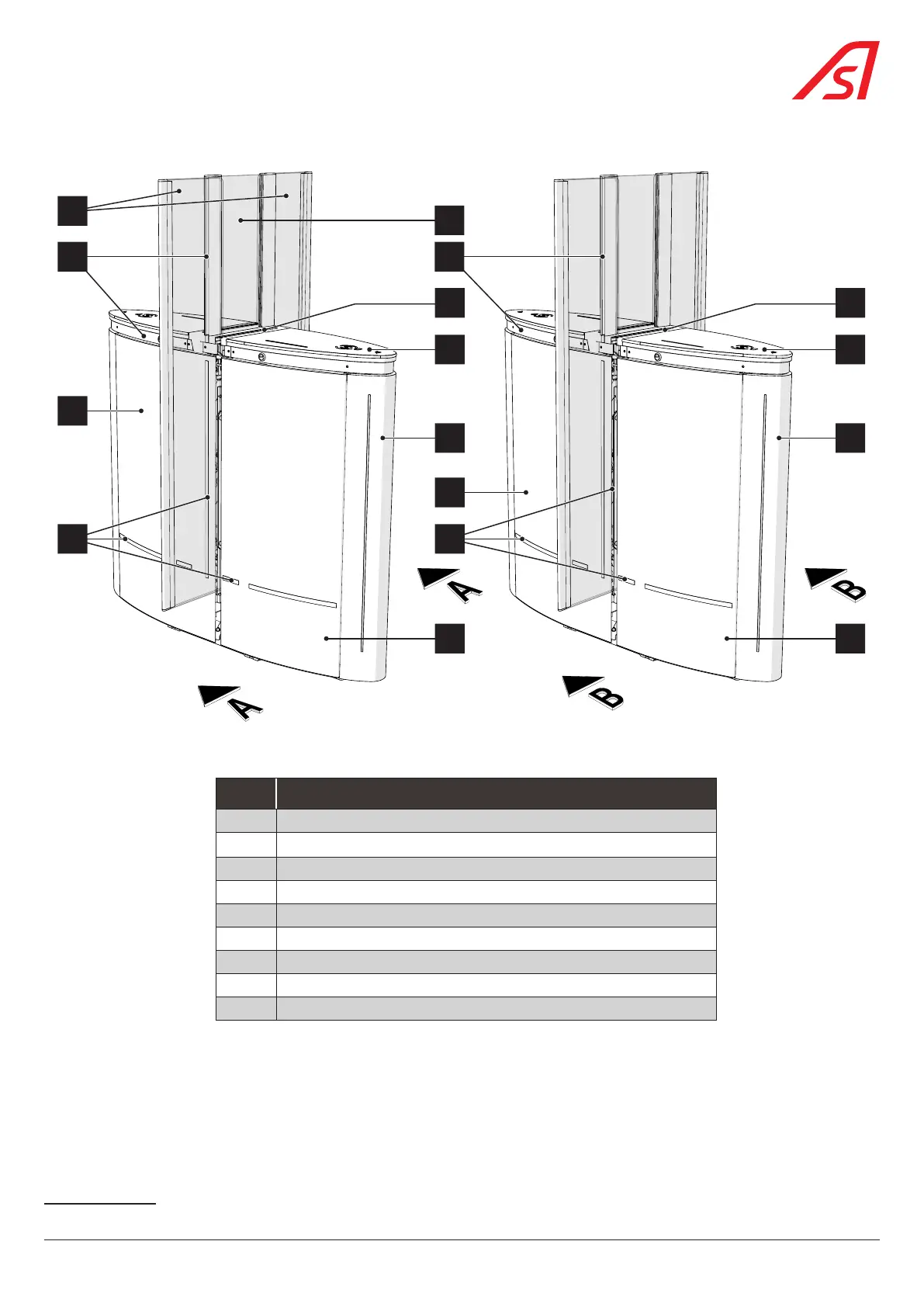

Fig. 9 - Location of the external components of the Standard SmartLane gate, intermediate
REF. DESIGNATION
1 Mobile obstacle
2 Fixed obstacle
3
3 Glass plate with dynamic status light/RFID logo
4 Front panel with dynamic orientation light
8 Right panel
9 Left panel
10 DIRAS detectors (Transmitter) behind a tinted screen
11 DIRAS detectors (Receiver) behind a tinted screen
12 Flap
3 If mobile obstacle height ≥ 1200 mm
19
