8.11. REPLACING THE PROTECTIVE SEAL ON THE MOBILE OBSTACLE
1. Unscrew the Torx screw (3) and remove the spacer (4) from one of the two (2) plugs (5) (located on either side of the
protective seal).
2. Pull the protective seal (2) out of the aluminium profile (1);
3. Spray water into the profile to facilitate the insertion of the new seal;
4. Push the new seal onto the profile;
The seal is intentionally longer than the profile and must be compressed when inserted into the profile (do not
shorten it).
5. Screw the plug back on.
4
4
3
5
5
3
21
1
1
2
2

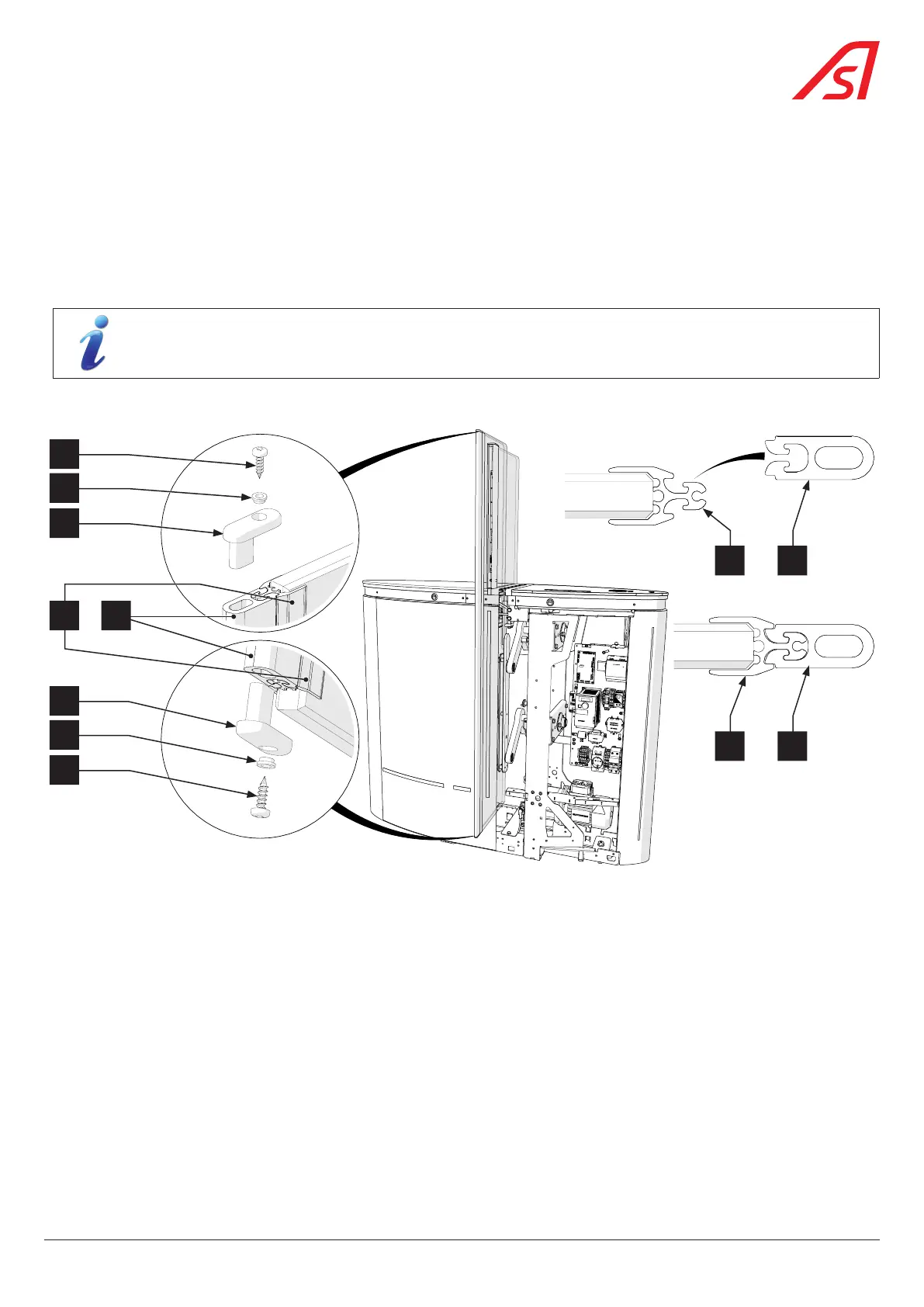

Fig. 71 - Replacing the protective profile
