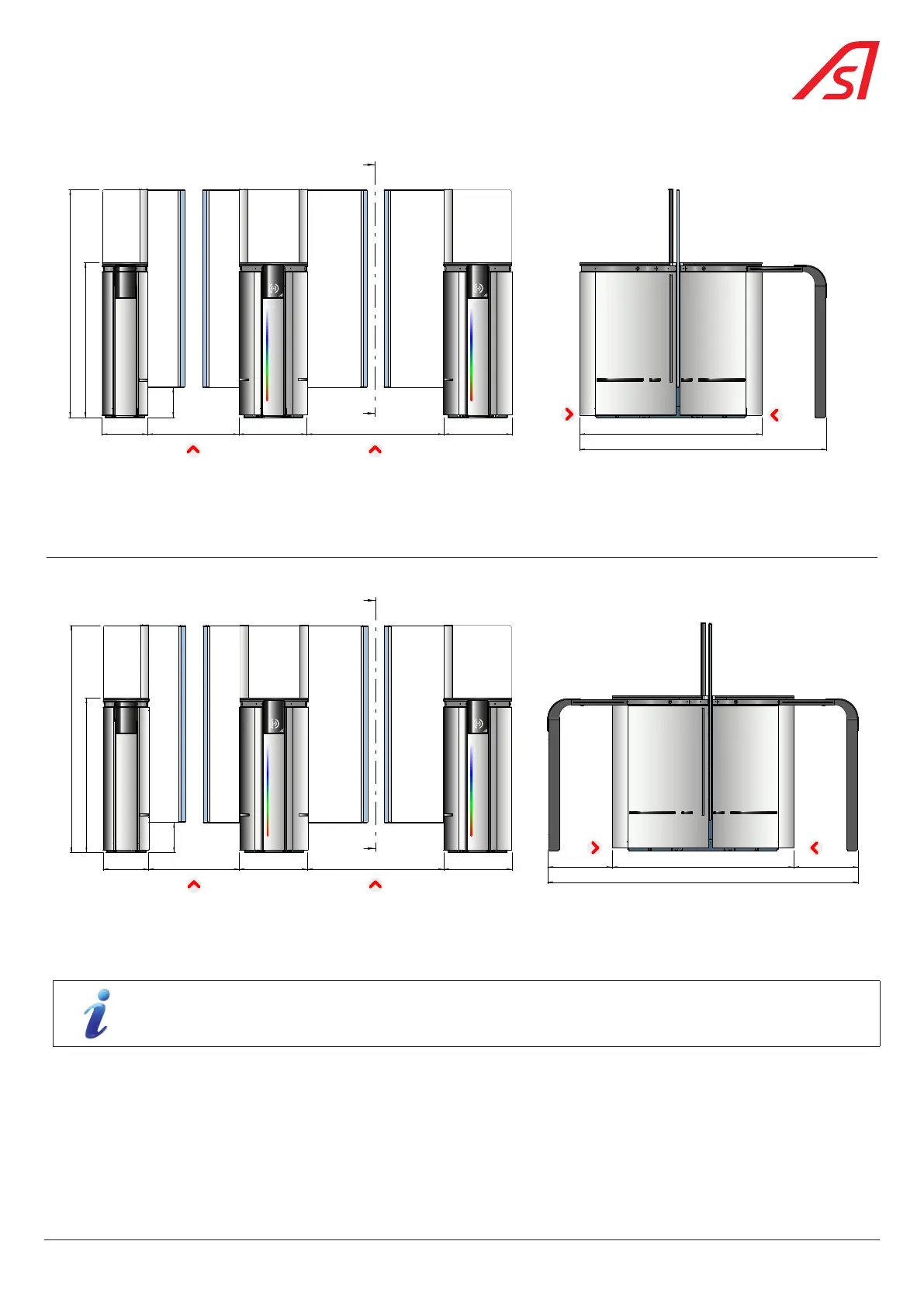

Automatic Systems SmartLane - Fig. 5 - General Dimensions (with Optional Extensions in One Direction); Fig. 6 - General Dimensions (with Optional Extensions in both Directions)

110 pages

Save Page as PDF

To Next Page

To Previous Page

SECTION B-B

200

1020

1200 > 2000

600 1200

1620

300 450 450900

A A

Left standard gate Right wide gate

Left hybrid

intermediate gate

STANDARD LANE WIDE LANE

Fig. 5 - General dimensions (With optional extensions in one direction)

SECTION B-B

1200 420

2040

420

200

1020

1200 > 2000

600300 450 450900

A A

Left standard gate Right wide gate

Left hybrid

intermediate gate

STANDARD LANE WIDE LANE

Fig. 6 - General dimensions (With optional extensions in both directions)

The overall dimensions and footprint are the same for a housing extension orhousing extension with filler

stainless steel panels.
