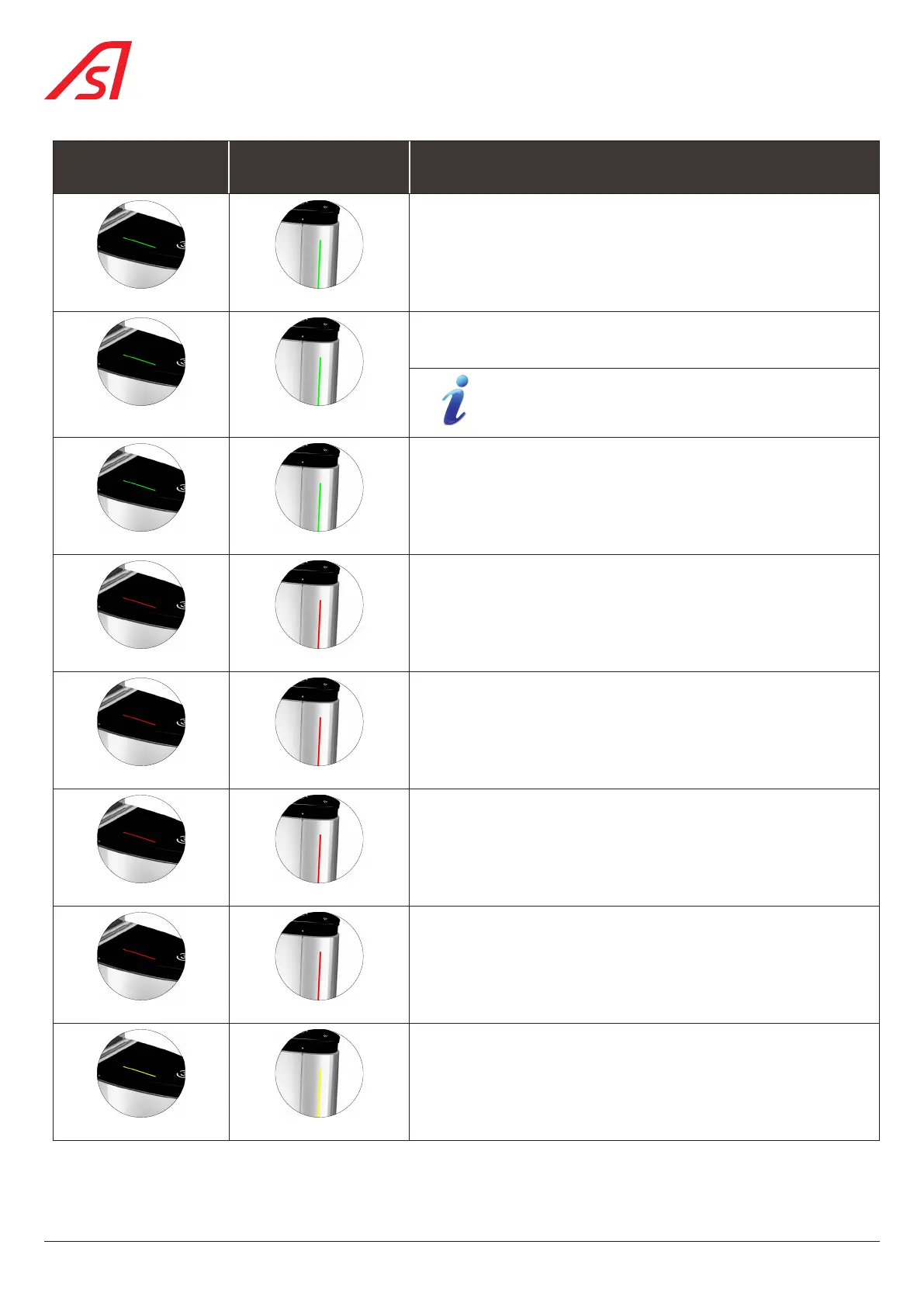

DYNAMIC STATUS LIGHT DYNAMIC ORIENTATION LIGHT MEANING
GREEN (FLASHING) GREEN (FLASHING)
• The lane is in ‘evacuation’ mode in the direction shown.
GREEN (FLASHING) GREEN (FIXED)
• Access to lane authorized in the direction shown.
Once the obstacles have been cleared, the user loses his or
her authorization to pass through.
GREEN (FIXED) GREEN (FIXED)
• Free mode (opens if presence detected).
• Normally open mode (obstacles are permanently open in the chosen
direction and close when an attempt is made to pass in the opposite
direction).
RED (FIXED) RED (FIXED)
• Breach detected.
• Evacuation in the reverse direction.
RED (FLASHING) RED (FIXED)
• Invalid badge control.
RED (FIXED) RED (FIXED)
• Passage forbidden.
• Passage under way in the wrong direction.
• Lane locked closed.
RED (FIXED) RED (FLASHING)
• Lane out of service.
YELLOW (SCROLLING) YELLOW (SCROLLING)
• Lane in Maintenance mode.
40
SmartLane
