Avaya DEFINITY ONE User Manual

Installation and Upgrades for DEFINITY ONE and
IP600 Internet Protocol Release 10
555-233-109
Issue 6
December 2001
Install and Cable the Cabinet
1-114Install the BRI terminating resistor
1
Terminating resistor adapter

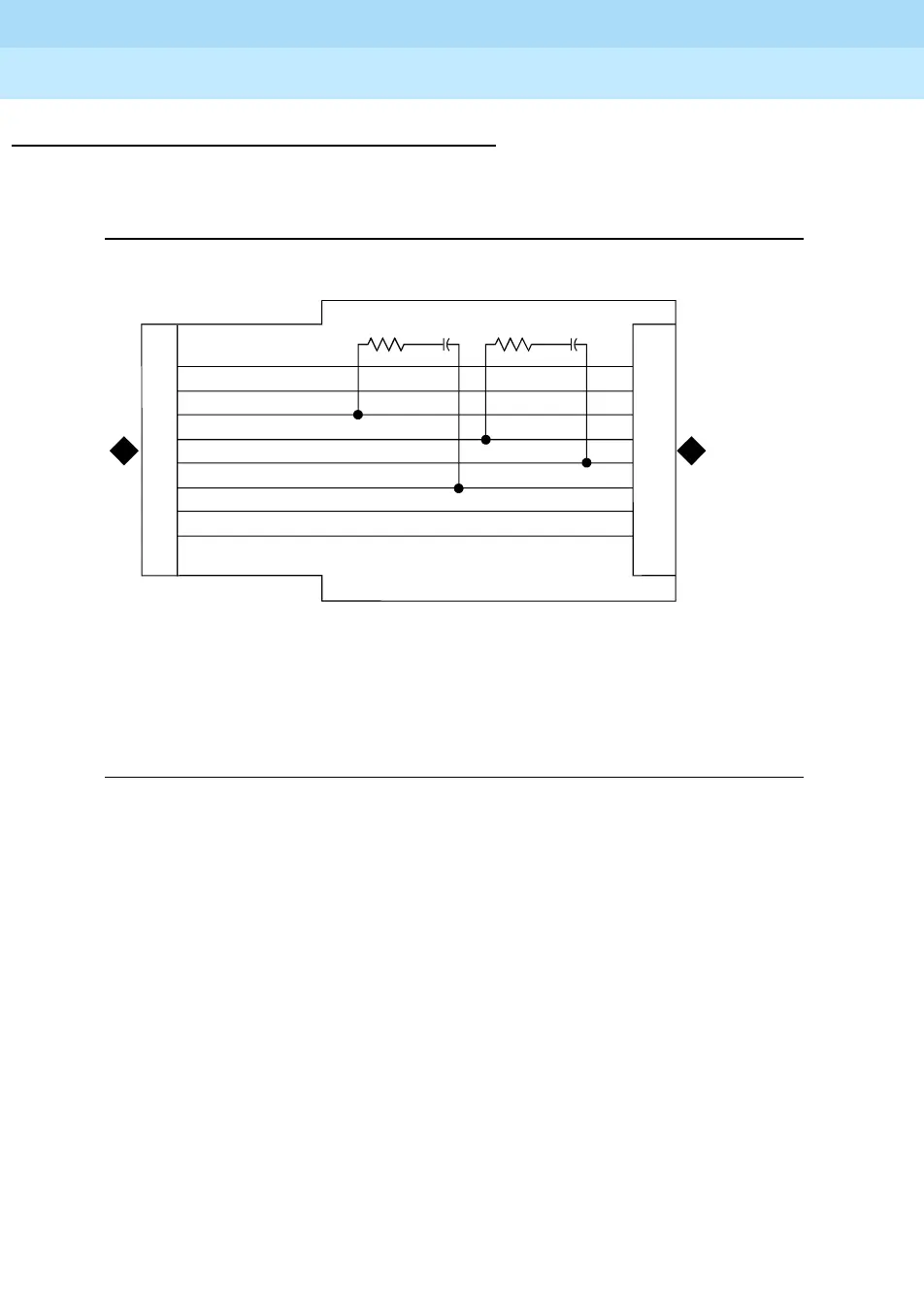

Figure 1-56 shows an 8-pin 440A4 terminating resistor adapter. The adapter has
an 8-wide plug at 1 end, a short cord, and an 8-wide jack at the opposite end.
Figure 1-56. 8-wide terminating resistor adapter (440A4)
Figure Notes
1. 8-wide plug 2. 8-wide jack
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
RRCC
r910013 RPY 012098
1 2
