Phone Based Administration Page 19
- Issue 6a (Thursday, February 22, 2018)IP Office Basic Edition
Comments on this document? infodev@avaya.com
Overview: DS Phones
1.3.6 Administration Menus

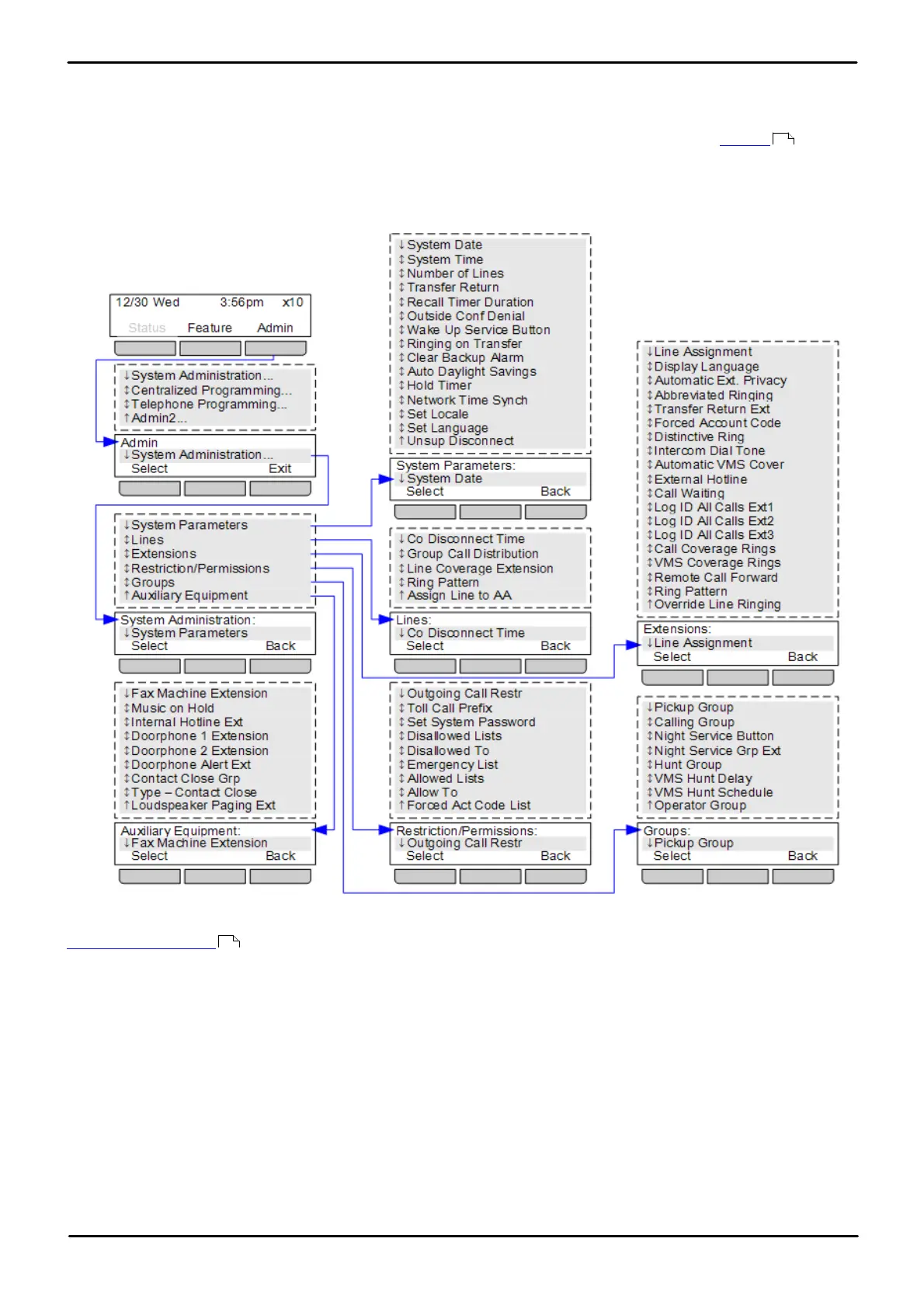

The following diagrams summarize the Admin menu options provided phones that use DS ports (1400 Series and 9500
Series). The phones supported for phone base administration are the 1408, 1416, 9504 and 9508.
These phones can still, after having selected a function, move between functions using the appropriate # codes .
1.3.6.1 System Administration Menu
The System Administration menu is only shown on the first two extensions in the system.
There are some programming functions that do not appear in the menu. Instead they are accessed by dialing the
appropriate # code after having accessed the menu by pressing Admin | System Administration. Refer to the
Programming Functions .
The Groups | Operator Group option is only available on systems running in PBX system mode.
