Azbil VDC User Manual

Operation using the data setting device Azbil Corporation
5-28 Model MTG11A/18A, MTG11B/18B, MTG14C

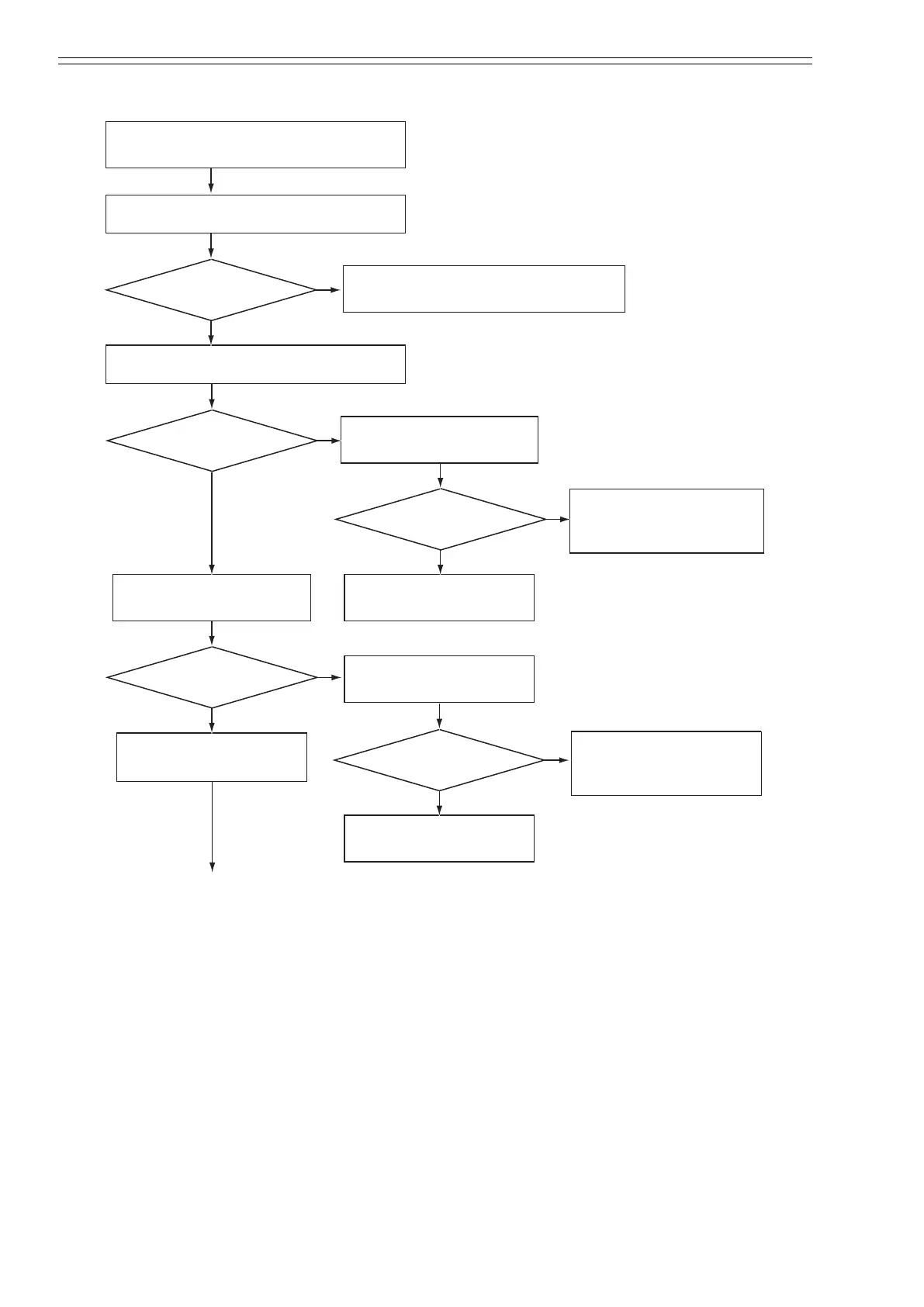

Electrode status diagnostic flow chart
Install the MTG 2 to the pipe. Pipe should be empty
Electrode Status Diagnostic function
Default setting: SENSITIVITY OFF
Change the SENSITIVITY to HIGH
when the pipe is empty or the scale appears on electrode.
Electrode Status Diagnostic function is not applicable.
Change the SENSITIVITY to OFF.
Blink
"EMPTY OR SCALE
ON ELECTRODE"
Blink
"EMPTY OR SCALE
ON ELECTRODE"
Change the SENSITIVITY to
HIGH when the flowtube is
filled with the process fluid.
Blink
"EMPTY OR SCALE
ON ELECTRODE"
Use the Electrode Status
Diagnostic function with the
SENSITIVITY HIGH.
Change the SENSITIVITY to
MID when the flowtube is filled
with the process fluid.
Use the Electrode Status
Diagnostic function with the
SENSITIVITY MID.
Blink
"EMPTY OR SCALE
ON ELECTRODE"
Change the SENSITIVITY to LOW
when the pipe is empty or the scale
appears on electrode.
Blink
"EMPTY OR SCALE
ON ELECTRODE"
Change the SENSITIVITY to LL
when the pipe is empty or the scale
appears on electrode.
Electrode Status Diagnostic
function is not applicable.
Change the SENSITIVITY
to OFF.
Electrode Status Diagnostic
function is not applicable.
Change the SENSITIVITY
to OFF.
Change the SENSITIVITY to MID
when the pipe is empty or the scale appears on electrode.
NO
YES
NO
NO
YES
NO
YES
YES
NO
YES
CM2-MTG300-2001.book 28 ページ ２０１５年９月２９日 火曜日 午前１０時１４分
