Operation using the data setting device Azbil Corporation
6-30 Model MTG11A/18A, MTG11B/18B, MTG14C
Displaying flow rate measured value: INPUT key
Procedure
Use the following procedure to be able to read the instantaneous flow rate value
measured by the converter from the SFC.

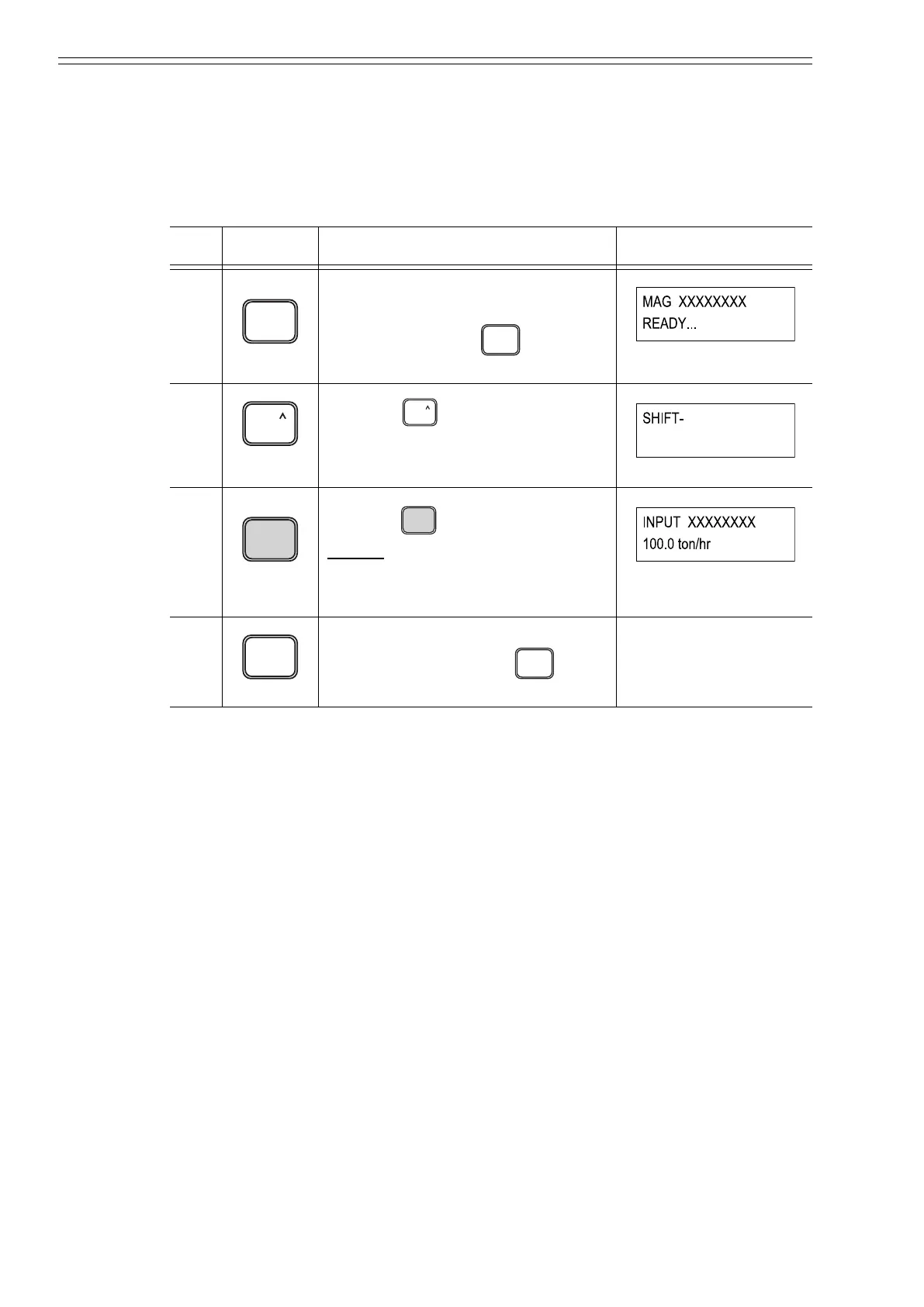

Step Key Procedure SFC screen
1 Make sure that the SFC is set to
“READY”.
If it is not, press the key to set
it to “READY”.
2
Press the key.
3
Press the key.
Result:
• The instantaneous flow rate value
appears as shown on the right.
4 After checking the instantaneous
flow rate value, press the key to
return to at step 1.
CLR
( No )
CLR
( No )
SFCM00006009D
SHIFT
SHIFT
SFCM00006002D
OUT-
J
PUT
INPUT
OUT-
J
PUT
INPUT
SFCM00006010D
CLR
( No )
CLR
( No )
