Azbil VDC User Manual

Azbil Corporation Operation using HART communicator
Model MTG11A/18A, MTG11B/18B, MTG14C 7-39

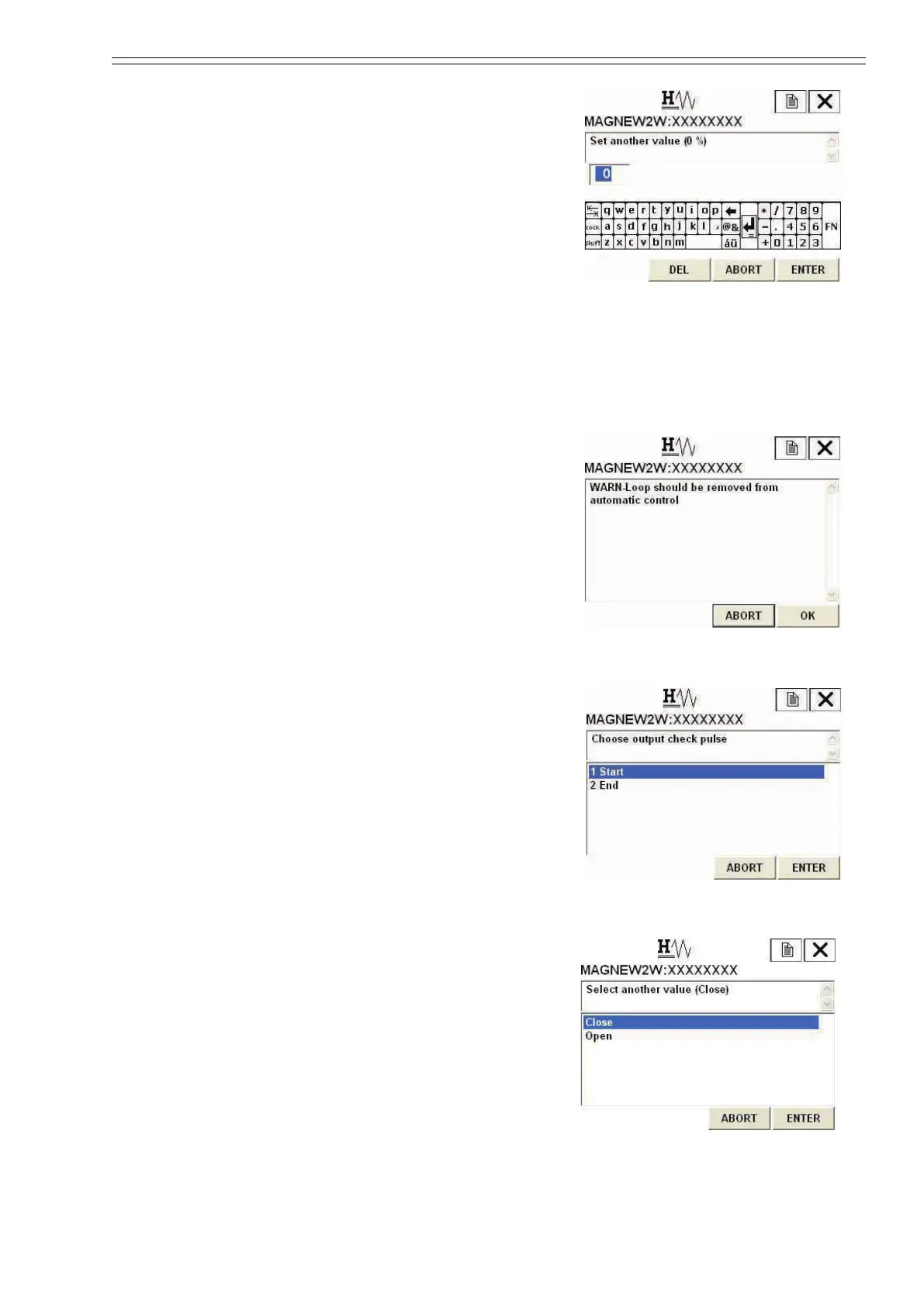

Contact output check
To output contact fixed value, proceed as follows:
4. Use the numeric keys to enter a fixed
value to be output in the value input
display. Setting range is duty ratio of
0% to +100%. When value is entered,
press F4 (ENTER). Pulse
corresponding to its output will be
output. Press F3 (ABORT) to return to
the previous menu.
Figure 7-86
1. From online menu,
Select:
1. Device setup
 2. Diag/Service
 2. Loop test
 4. Out put check Do
Figure 7-87 will then be displayed.
If the control system is not affected by
the forcible change of the current
signal, press F4 (OK). By pressing F3
(ABORT), the procedure is canceled.
Figure 7-87
2. Figure 7-88 will then appear. Choose
START to start fixed value of contact
output, and then press F4 (ENTER)
Figure 7-88
3. Figure 7-89 will appear. Move the
arrow key up or down to select an
OPEN or CLOSE. After making a
selection, press F4 (ENTER). Selected
contact will be output. Press F3
(ABORT) to return to the previous
menu.
Figure 7-89
CM2-MTG300-2001.book 39 ページ ２０１５年９月２９日 火曜日 午前１０時１４分
