Azbil Corporation Operation using HART communicator
Model MTG11A/18A, MTG11B/18B, MTG14C 7-25
7-2-7 : Burnout setting
Analog output burnout setting
To set the output direction of analog current output at critical failure, proceed as follows:
Pulse output burnout setting
To set the output direction of pulse output at critical failure, proceed as follows:
1. From online menu,
Select:
1. Device setup
4. Detailed setup
2. Conf output
1. Analog output
5. Burn out AO

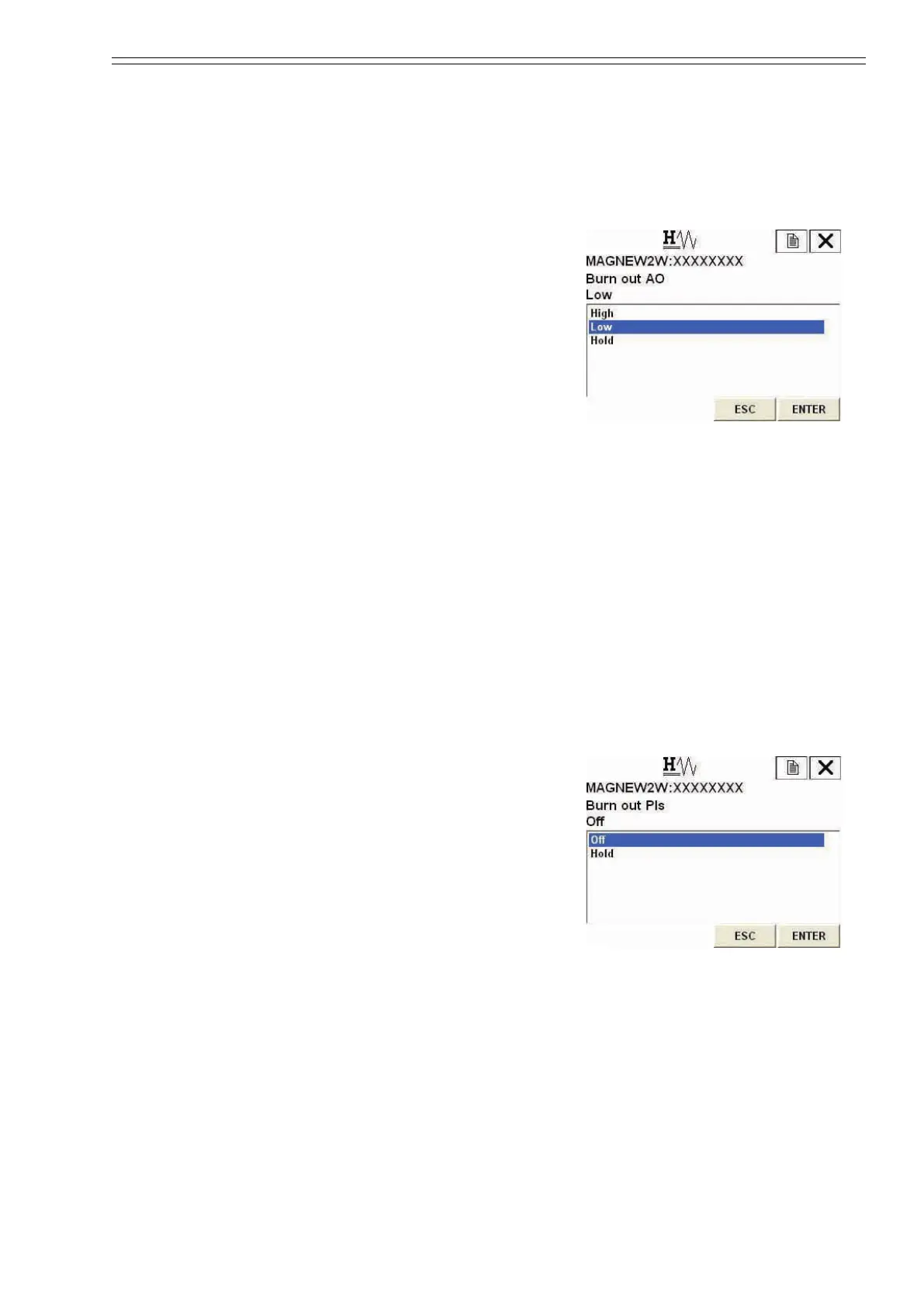

Figure 7-41 will then be displayed.
Figure 7-41
2. Once the display as shown in Figure 7-41 appears, move the arrow key up or
down to select HIGH, LOW, or HOLD. After making a selection, press F4
(ENTER). If F3 (ESC) is pressed here, the selection will be canceled and the
display will return to the Analog output menu.
3. After returning to the Analog output menu, press F2 (SEND). Changed setting
will be transmitted to the converter. The HART communicator mark will
appear on the upper right hand corner while HART is communicating with the
device. The mark will disappear once communication has properly completed.
1. From online menu,
Select:
1. Device setup
4. Detailed setup
2. Conf output
2. Pulse output
5. Burn out pls
Figure 7-42 will then be displayed.
Figure 7-42
2. Once the display as shown in Figure 7-42 appears, move the arrow key up or
down to select Off or Hold. After making a selection, press F4 (ENTER). If F3
(ESC) is pressed here, the selection will be canceled and the display will
return to the Pulse output menu.
3. After returning to the Pulse output menu, press F2 (SEND). Changed setting
will be transmitted to the converter. The HART communicator mark will
appear on the upper right hand corner while HART is communicating with the
device. The mark will disappear once communication has properly completed.
