Operation using the data setting device Azbil Corporation
6-64 Model MTG11A/18A, MTG11B/18B, MTG14C

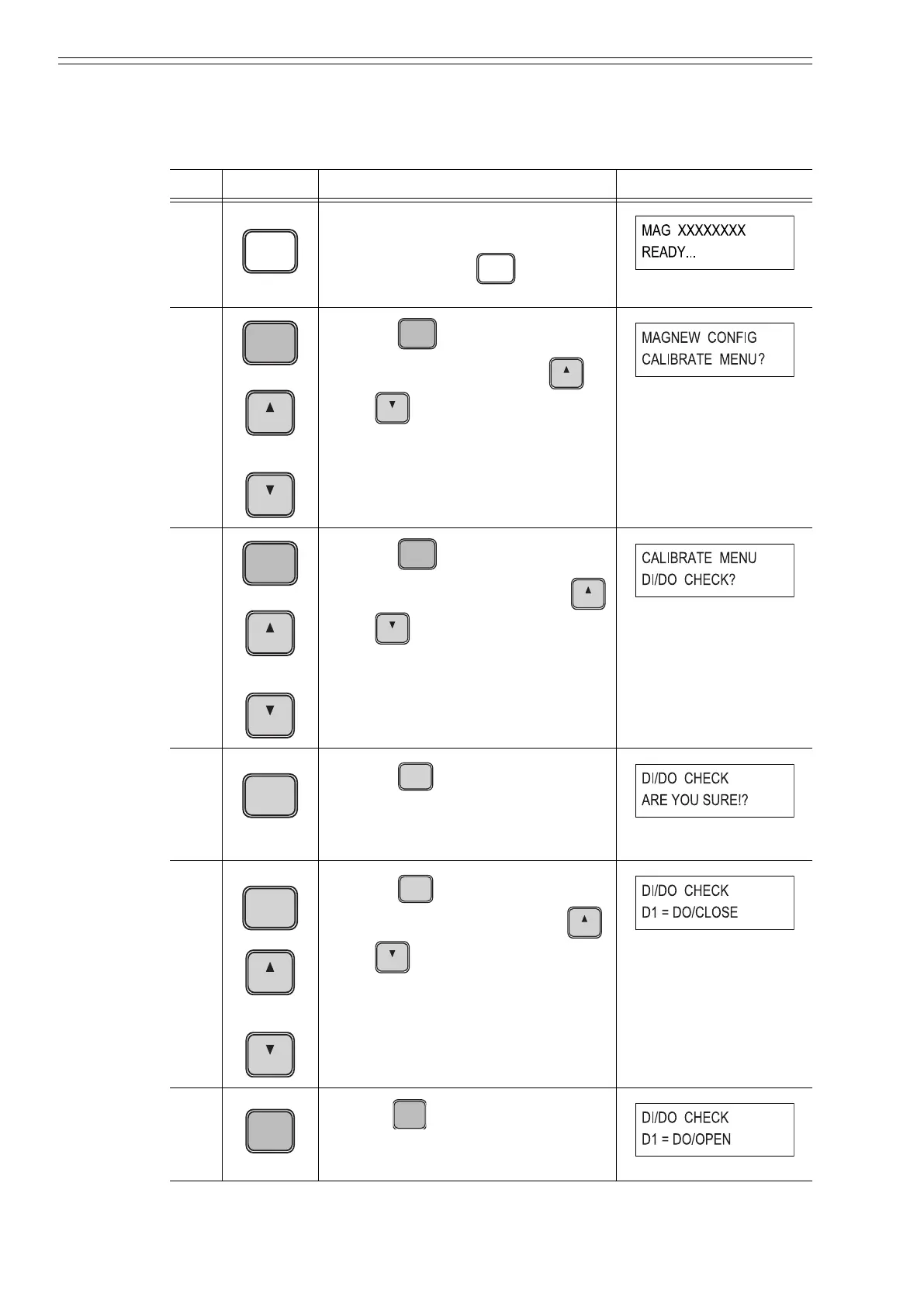

Checking output of contact output: [DI/DO CHECK] function
Output of the contact output can be checked from SFC.
Use the following procedure to check the output of the contact output.
Step
Key Procedure SFC screen
1 Confirm that the SFC is set to
“READY”.
If it is not, press the key to set it
to “READY”.
2
or
Press the key to access the
CONFIG functions. Press the
key or key to show the screen
here to the right
3
or
Press the key to access the
CALIBRATE function, press the
key or key to display the screen
as shown on the right.
4
Press the key.
The screen shown as shown on the right
appears and you will be asked whether
you want to check the contact output.
5
or
Press the key to access the DI/
DO CHECK function. Press the
key or key to show the screen
here to the right.
Present contact output status appears.
6
Press the key and select the status
to be set.
You can select OPEN or CLOSE.
CM2-MTG300-2001.book 64 ページ ２０１５年９月２９日 火曜日 午前１０時１４分
To Next Page
