Operation using HART communicator Azbil Corporation
7-16 Model MTG11A/18A, MTG11B/18B, MTG14C
Setting the average processing time
To set the value of the average processing time, proceed as follows:
Low flow cutoff
To set the low flow cutoff, proceed as follows:
1. From online menu,
Select:
1. Device setup
4. Detailed setup
3. Noise immunity
4. Mvng av time

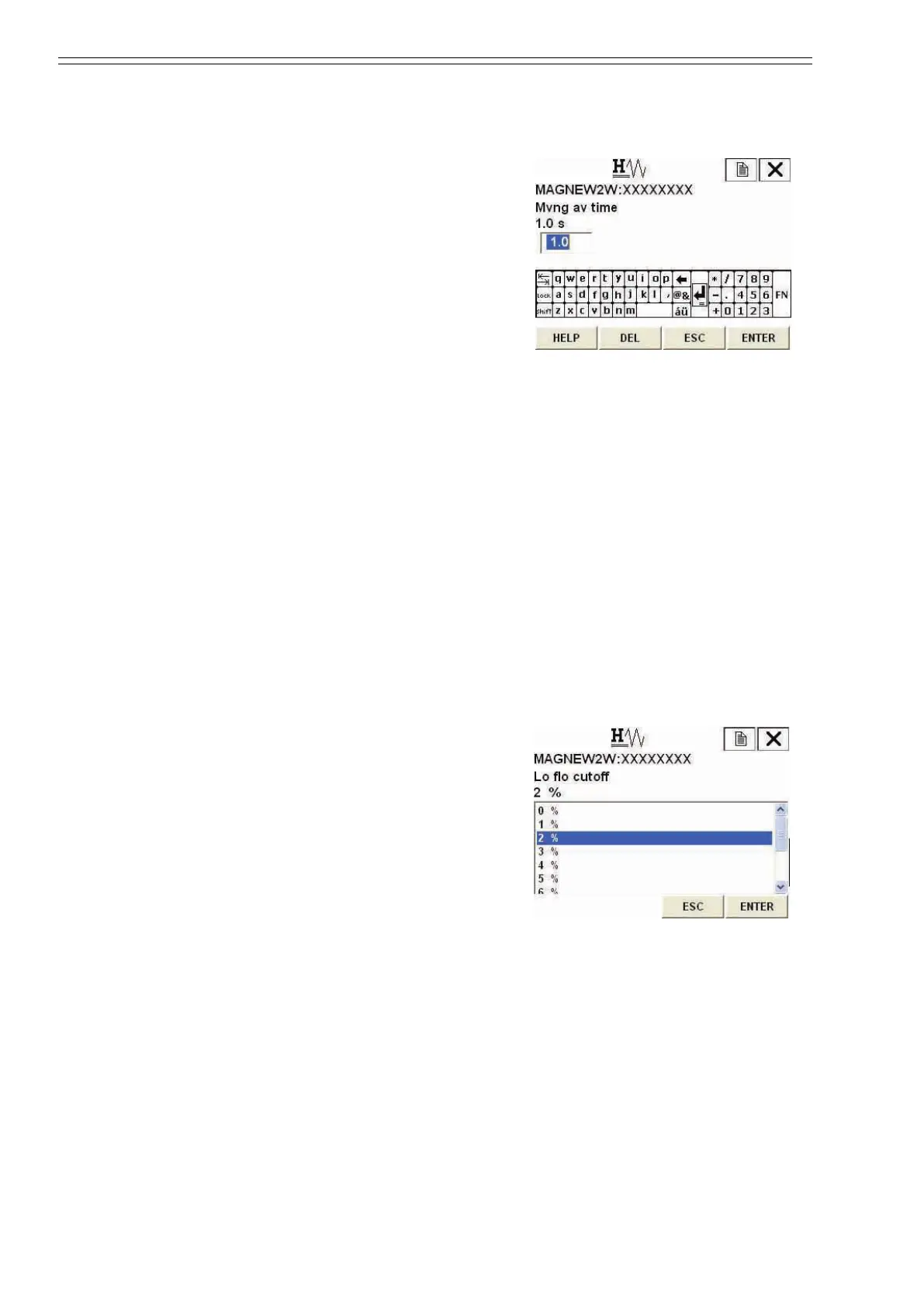

Figure 7-25 will then be displayed.
Figure 7-25
2. Use the numeric keys to enter an average processing time in the value input
display. Setting range of average processing time 1.0s to 30.0s.
3. Once a new value is entered, press F4 (ENTER) to return to the Noise
immunity menu. When the value is outside the range, error will be displayed.
Input the value again.
4. After returning to the Noise immunity menu, press F2(SEND). Changed
setting will be transmitted to the converter. The HART communicator mark
will appear on the upper right hand corner while HART is communicating
with the device. The mark will disappear once communication has properly
completed.
1. From online menu,
Select:
1. Device setup
4. Detailed setup
3. Noise immunity
5. Lo flow cut
Figure 7-26 will then be displayed.
Figure 7-26
2. Once the display as shown in Figure 7-26 appears, move the arrow key up or
down to select low flow cut value. Value can be specified from 1% to 10%.
After making a selection, press F4(ENTER). If F3 (ESC) is pressed here, the
selection will be canceled and the display will return to the Noise immunity
menu.
3. After returning to the Noise immunity menu, press F2(SEND). Changed
setting will be transmitted to the converter. The HART communicator mark
will appear on the upper right hand corner while HART is communicating
with the device. The mark will disappear once communication has properly
completed.
CM2-MTG300-2001.book 16 ページ ２０１５年９月２９日 火曜日 午前１０時１４分
