Azbil Corporation Operation using HART communicator
Model MTG11A/18A, MTG11B/18B, MTG14C 7-7
Range
The upper limit of the flow range is set as follows:
Specific gravity
The specific gravity, when selecting the unit of weight is set as follows:
1. From online menu,
Select:
1. Device setup
3. Basic setup
3. PV URV

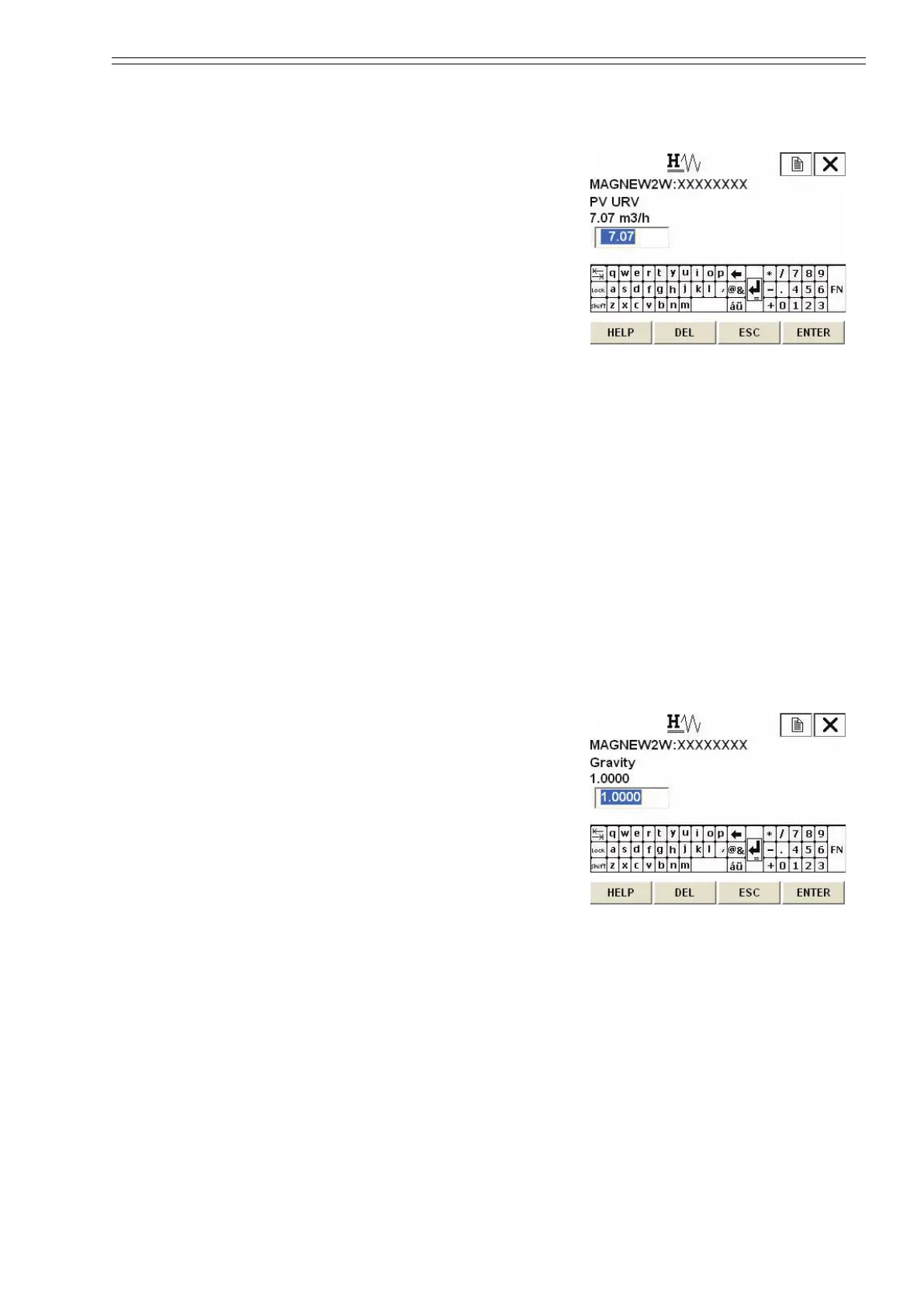

Figure 7-8 will then be displayed.
Figure 7-8
2. Use the numeric keys to enter a new range value in the value input display. Up
to six digits including a decimal point can be entered. Setting range of the flow
range is 0.3 m/s to 10 m/s in flow rate.
3. Once a new value is entered, press F4 (ENTER) to return to the basic setup
menu. When the value is outside the range, error will be displayed. Input the
value again.
4. After returning to the basic setup menu, press F2 (SEND). Changed setting
will be transmitted to the converter. The HART Communicator mark will
appear on the upper right hand corner while HART is communicating with the
device. The mark will disappear once communication has properly completed.
1. From online menu,
Select:
1. Device setup
3. Basic setup
4. Gravity
Figure 7-9 will then be displayed.
Figure 7-9
2. Use the numeric keys to enter a specific gravity value in the value input
display. Up to six digits including a decimal point can be entered. Setting
range of the specific gravity is 0.1000 to 5.9999.
3. Once a new value is entered, press F4 (ENTER) to return to the basic setup
menu. When the entered value is outside the range, error will be displayed.
Input the value again.
4. After returning to the basic setup menu, press F2 (SEND). Changed setting
will be transmitted to the converter. The HART Communicator mark will
appear on the upper right hand corner while HART is communicating with the
device. The mark will disappear once communication has properly completed.
CM2-MTG300-2001.book 7 ページ ２０１５年９月２９日 火曜日 午前１０時１４分
