Azbil Corporation Operation using HART communicator
Model MTG11A/18A, MTG11B/18B, MTG14C 7-15
7-2-3 : Signal processing
Auto spike cut
To set On/OFF for auto spike cut, proceed as follows:
Setting average processing
To set ON/OFF for average processing, proceed as follows:
1. From online menu,
Select:
1. Device setup
 4. Detailed setup
 3. Noise immunity
 2. Auto spike cut

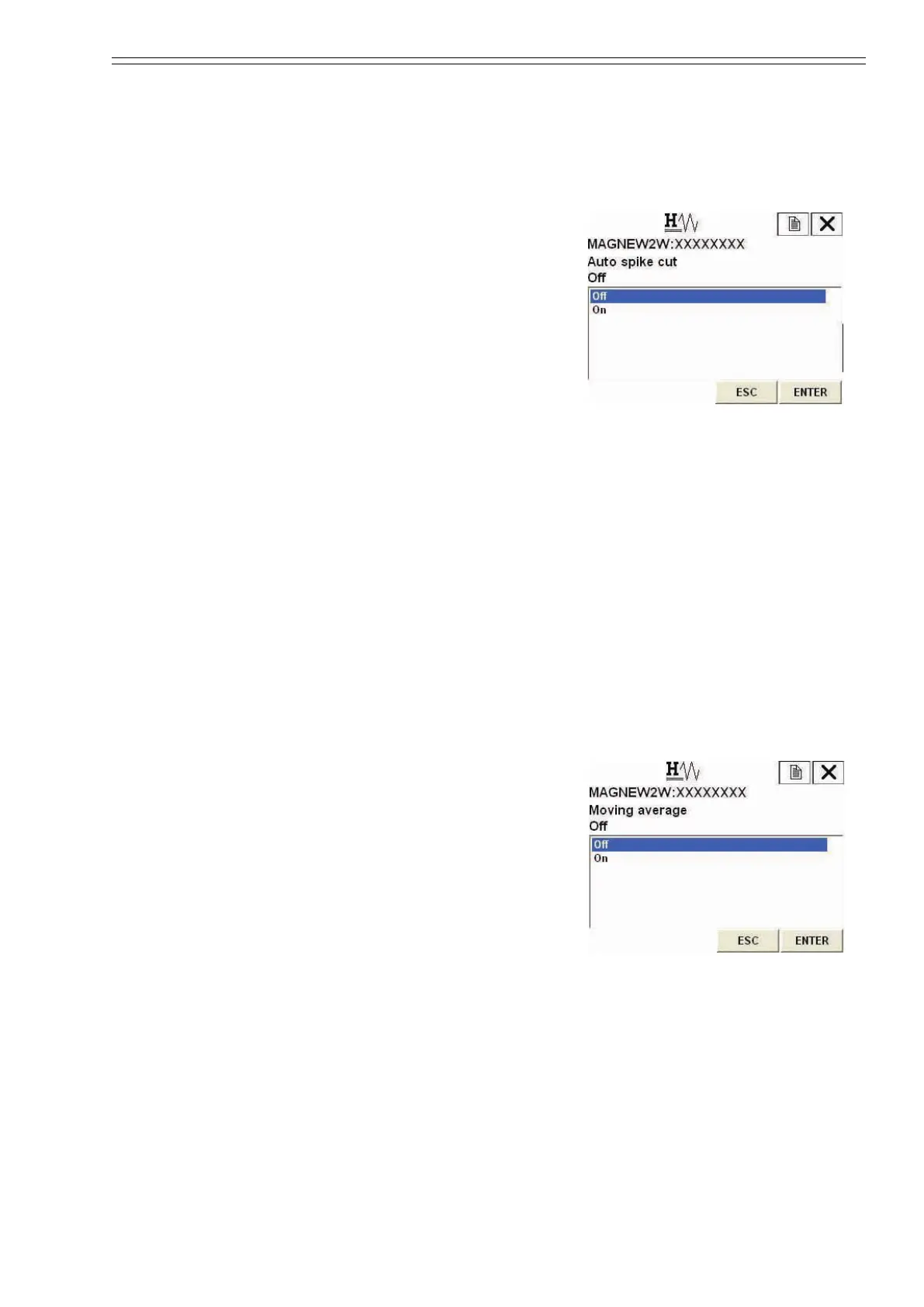

Figure 7-23 will then be displayed.
Figure 7-23
2. Once the display as shown in Figure 7-23 appears, move the arrow key up or
down to select On or OFF. After making a selection, press F4 (ENTER). If F3
(ESC) is pressed here, the selection will be canceled and the display will
return to the Noise immunity menu.
3. After returning to the Noise immunity menu, press F2 (SEND). Changed
setting will be transmitted to the converter. The HART communicator mark
will appear on the upper right hand corner while HART is communicating
with the device. The mark will disappear once communication has properly
completed.
1. From online menu,
Select:
1. Device setup
 4. Detailed setup
 3. Noise immunity
 3. Moving average
Figure 7-24 will then be displayed.
Figure 7-24
2. Once the display as shown in Figure 7-24 appears, move the arrow key up or
down to select On or OFF. After making a selection, press F4 (ENTER). If F3
(ESC) is pressed here, the selection will be canceled and the display will
return to the Noise immunity menu.
3. After returning to the Noise immunity menu, press F2 (SEND). Changed
setting will be transmitted to the converter. The HART communicator mark
will appear on the upper right hand corner while HART is communicating
with the device. The mark will disappear once communication has properly
completed.
