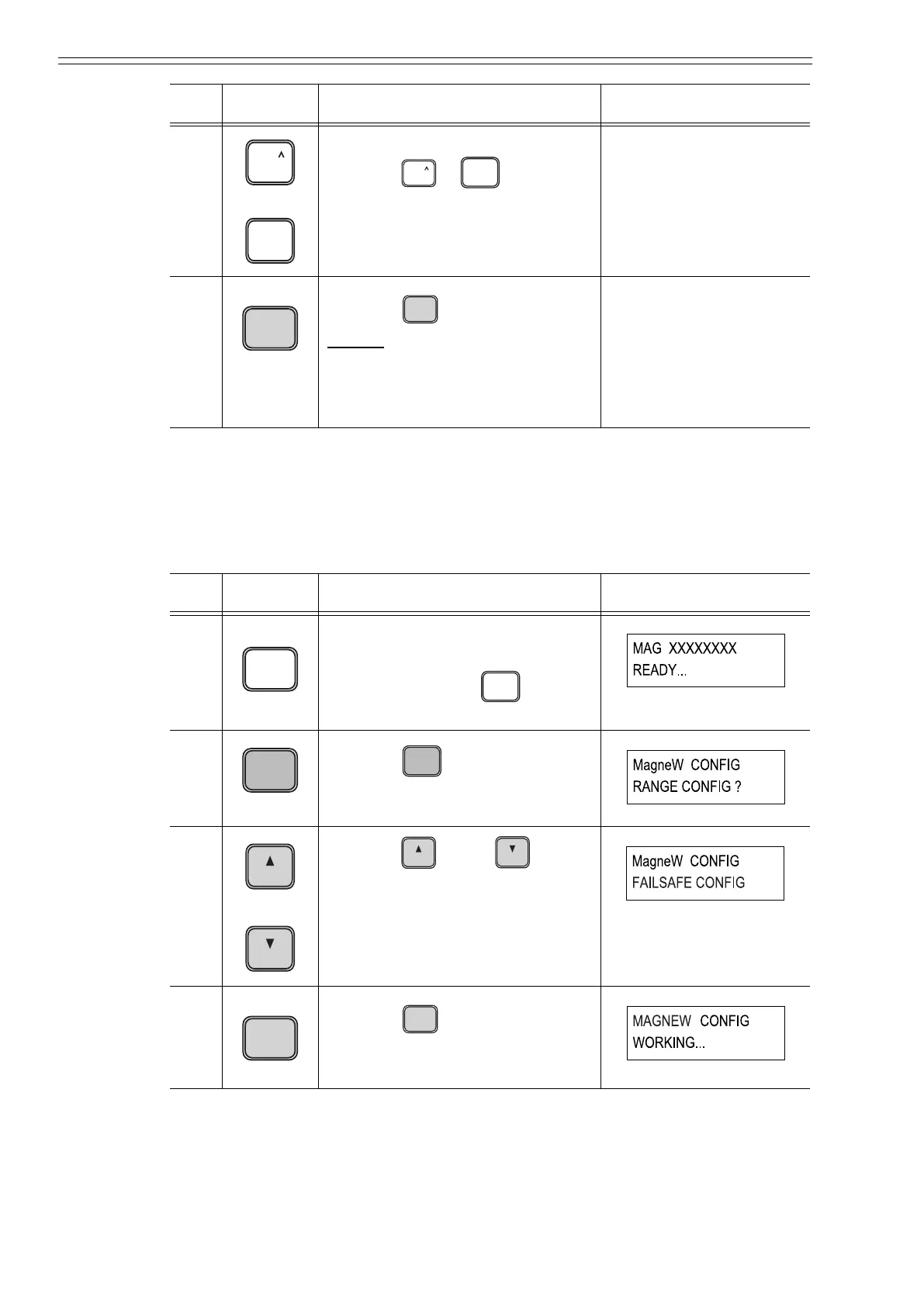

Operation using the data setting device Azbil Corporation
6-58 Model MTG11A/18A, MTG11B/18B, MTG14C
Setting burnout direction of pulse output: [F/S SETUP] function
Use the following procedure to display and to set the fail-safe direction of pulse
output.
9
+
To exit the F/S SET UP function,
press the + keys.
10
Press the key.
Result:
• The screen exits the F/S SET UP
function and returns to the screen
as in step 1.
Step
Key Procedure SFC screen
1 Confirm that the SFC is set to
“READY”.
If it is not, press the key to
set it to “READY”.
2
Press the key to access the
CONFIG functions.
3
or
Press the key or key to
show this screen.
4
Press the key.
Step
Key Procedure SFC screen
CM2-MTG300-2001.book 58 ページ ２０１５年９月２９日 火曜日 午前１０時１４分
