Operation using the data setting device Azbil Corporation
6-50 Model MTG11A/18A, MTG11B/18B, MTG14C
Setting detector type: [TYPE] function
Introduction
The type of the detector of the converter is set at the factory according to the ordered
specifications. The settings of this type can be changed. When using two wired
magnetic flowmeter, it is necessary to select “MGG” (refer to step 6) for detector type.
Procedure

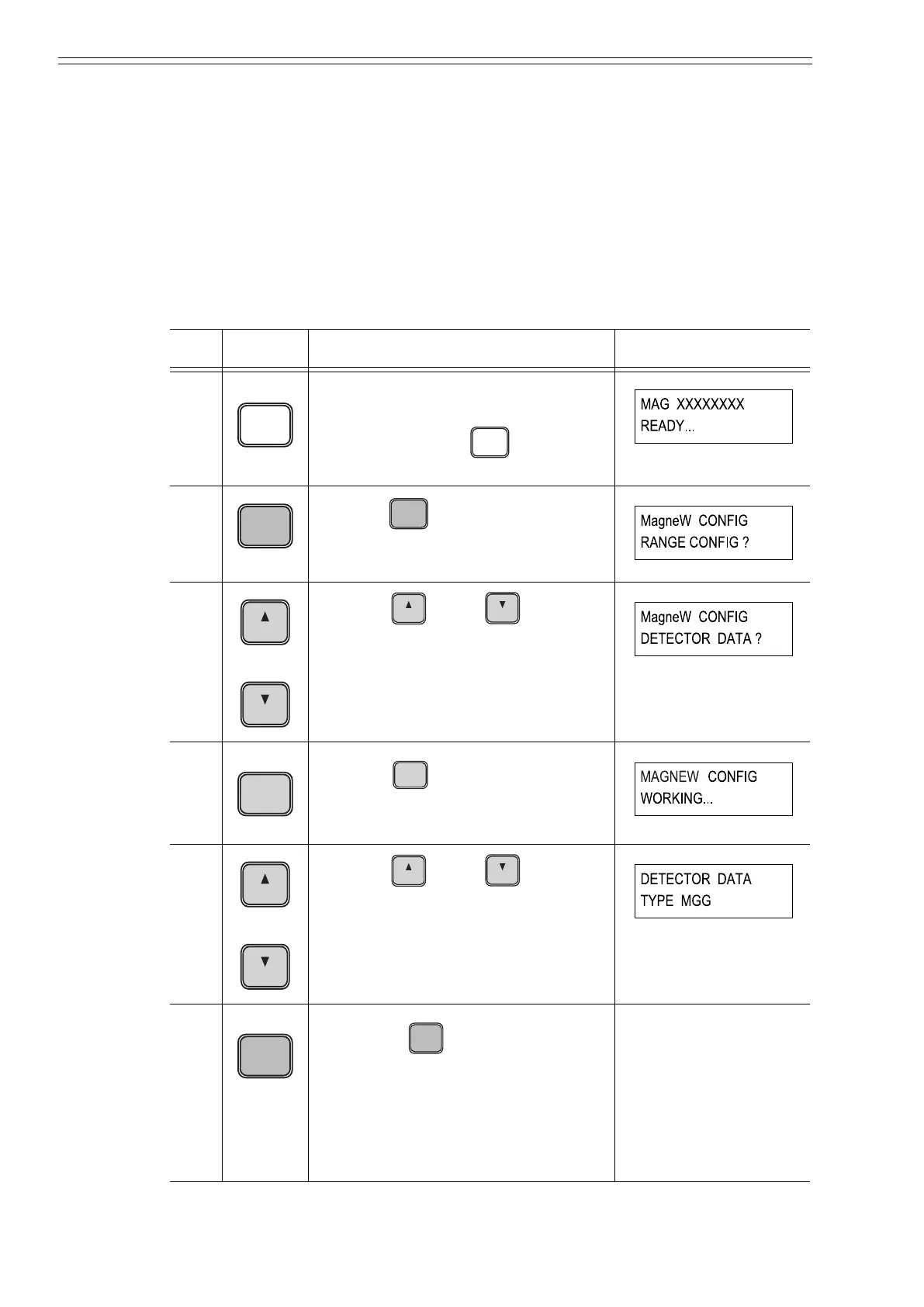

Use the following procedure to set the type of the detector.
Step
Key Procedure SFC screen
1 Make sure that the SFC is set to
“READY”.
If it is not, press the key to set it
to “READY”
2
Press the key to access the
CONFIG functions.
3
or
Press the key or key to
display the screen as shown on the
right.
4
Press the key.
5
or
Press the key or key to
display the screen as shown on the
right.
6
Pressing the key changes the sign
to the right of TYPE displayed on the
screen from MGG KID NNM
NNK DUMMY=0... NNK
DUMMY=9SMWSMFSMC,
sequentially. Display the detector type
to be set on the screen.
