Operation using the data setting device Azbil Corporation
6-76 Model MTG11A/18A, MTG11B/18B, MTG14C

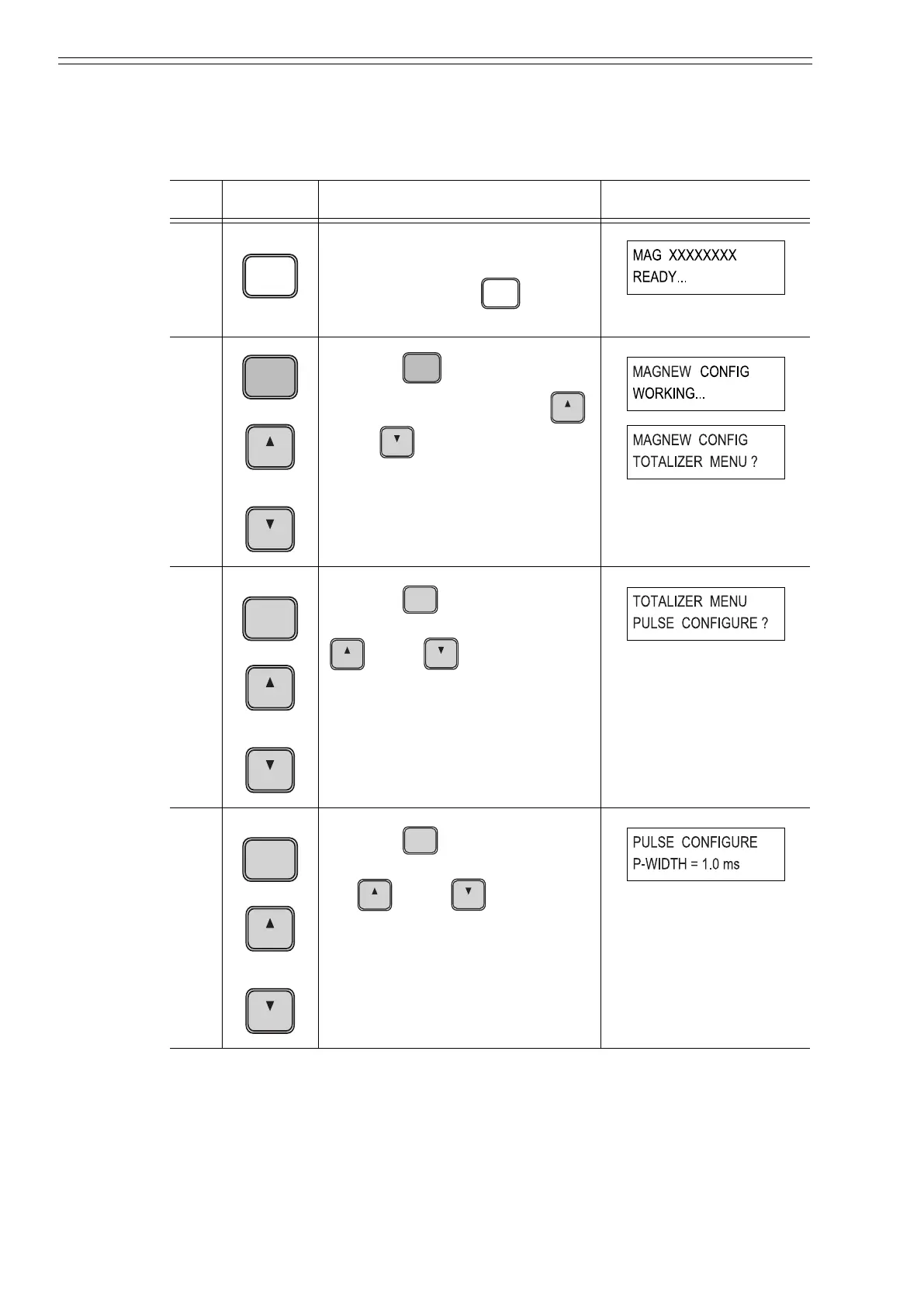

Setting pulse width [PULSE CONFIGURE] function
Use the following procedure to set the pulse width. Available setting range of pulse
width is DUTY rate < 70%
Step
Key Procedure SFC screen
1 Confirm that the SFC is set to
“READY”.
If it is not, press the key to
set it to “READY”.
2
or
Press the key to access the
CONFIG functions. Press the
key or key to display the
screen as shown on the right
3
or
Press the key to access the
TOTALIZER functions. Press the
key or key to display
the screen as shown on the right
4
or
Press the key to enter into
[PULSE] setting function and press
the key or key to
display the screen as shown on the
right.
Displays the actual pulse width.
CM2-MTG300-2001.book 76 ページ ２０１５年９月２９日 火曜日 午前１０時１４分
To Next Page
