Operation using the data setting device Azbil Corporation
6-66 Model MTG11A/18A, MTG11B/18B, MTG14C

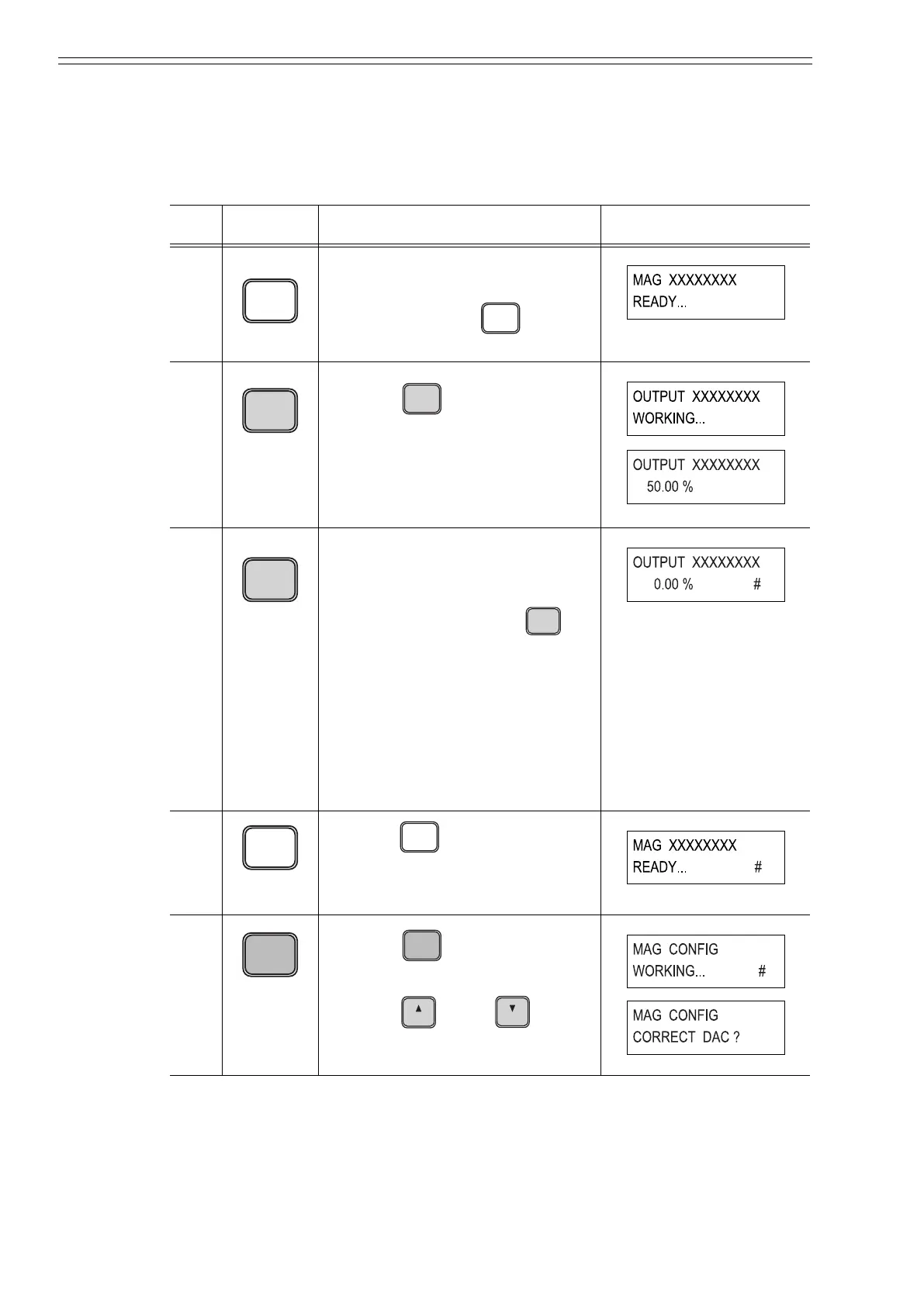

Adjusting analog current output [CORRECT DAC] function
Analog current output can be adjusted from converter by changing it into constant
current generation mode by SFC. Use the following procedure to adjust the analog
current output.
Step
Key Procedure SFC screen
1 Confirm that the SFC is set to
“READY”.
If it is not, press the key to
set it to “READY”.
2
Press the key.
Actual output value will be
displayed.
3 Press the numeric keys to enter the
output value to be adjusted. For
example, in case of adjusting 0%,
enter “0%”, and press the
key, the display as shown on the
right appears. This display
confirms constant current
generation mode. Output value is
fixed to 0% (4 mA)
* “#” mark shown in the bottom
right presents the constant current
generation mode.
4
Press the key. Display
returns back to the screen as in step
1. Output value is still fixed at 0%.
5
Press the key to access the
[CONFIG] function.
Press the key or key.
Display as shown on the right
appears.
CLR
( No )
CLR
( No )
SFCM00006009D
OUT-
J
PUT
INPUT
OUT-
J
PUT
INPUT
SFCM00006068D
SFCM00006116D
ENTER
( Yes )
NON-VOL
ENTER
( Yes )
NON-VOL
SFCM00006117D
CLR
( No )
CLR
( No )
SFCM00006119D
B
CONF
B
CONF
H
NEXT
L
PREV
SFCM00006118D
SFCM00006120D
CM2-MTG300-2001.book 66 ペー
