Azbil Corporation Operation using the data setting device
Model MTG11A/18A, MTG11B/18B, MTG14C 6-67
6
or

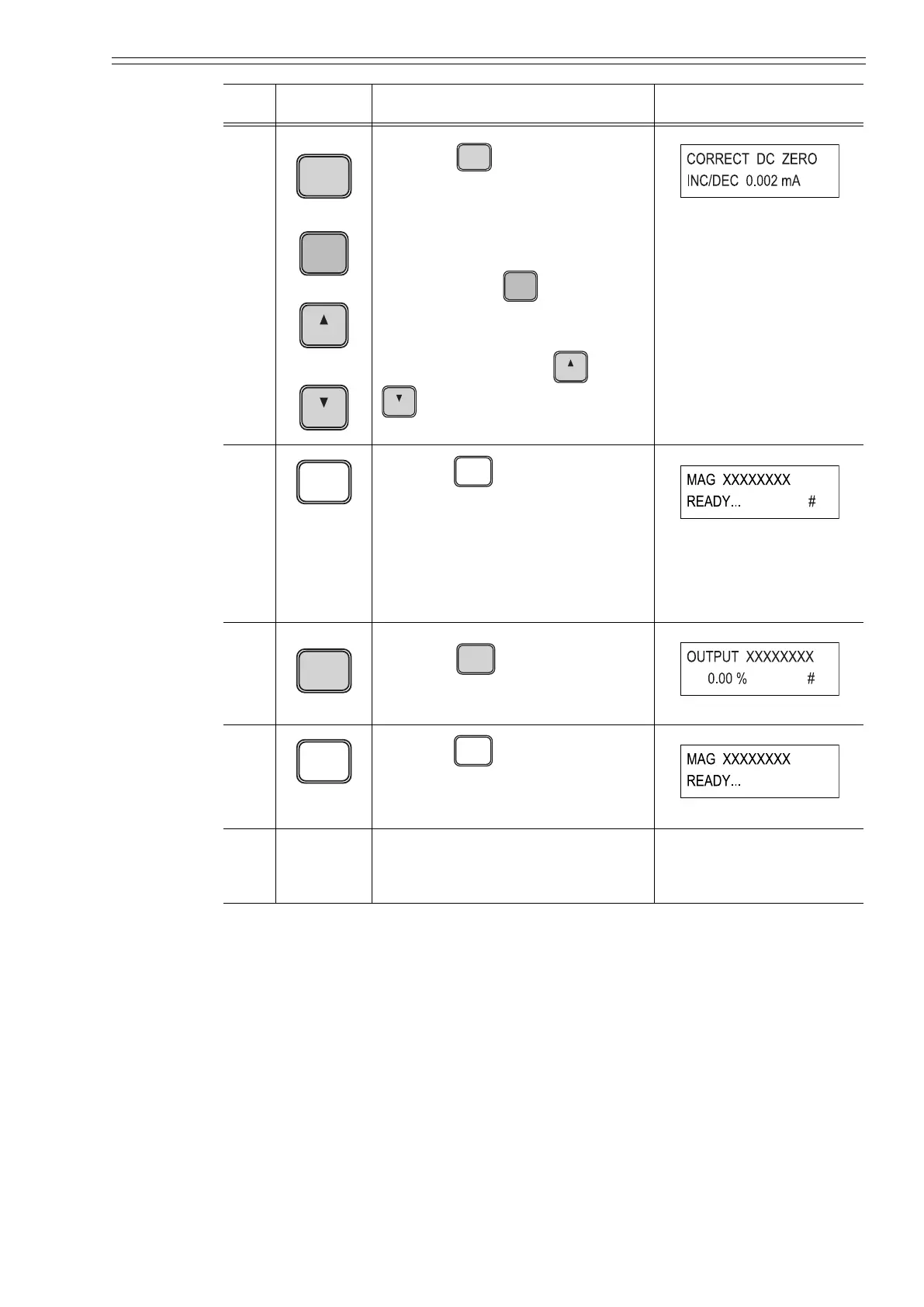

Press the key and enter into
the CORRECT DAC screen.
Current value shown in the bottom
right screen presents the
adjustment variation.
By pressing the key, you can
change from 0.002, 0.01, 0.05 to
0.25 mA.
Adjust by pressing the key or
key.
7
Press the key.
Display return back to the screen
shown to the right. # will be shown
in the bottom right screen. This
shows that it is still in constant
current generation mode. You need
to clear this mode.
8
Press the key again.
9
Press the key.
Confirm that the “#” mark has been
deleted.
10 Adjust to 100% (20 mA) by
following the same procedure as
for adjusting 0% (4 mA).
Step Key Procedure SFC screen
ENTER
( Yes )
NON-VOL
MENU
I
ITEM
DE CONF.
H
NEXT
L
PREV
ENTER
( Yes )
NON-VOL
MENU
I
ITEM
DE CONF.
H
NEXT
L
PREV
SFCM00006121D
CLR
( No )
CLR
( No )
SFCM00006119D
OUT-
J
PUT
INPUT
OUT-
J
PUT
INPUT
SFCM00006117D
CLR
( No )
CLR
( No )
SFCM00006009D
CM2-MTG300-2001.book 67 ページ ２０１５年９月２９日 火曜日 午前１０時１４分
