Operation using HART communicator Azbil Corporation
7-8 Model MTG11A/18A, MTG11B/18B, MTG14C
Damping time constant
The damping time constant is set as follows:
1. From online menu,
Select:
1. Device setup
3. Basic setup
5. PV Damp

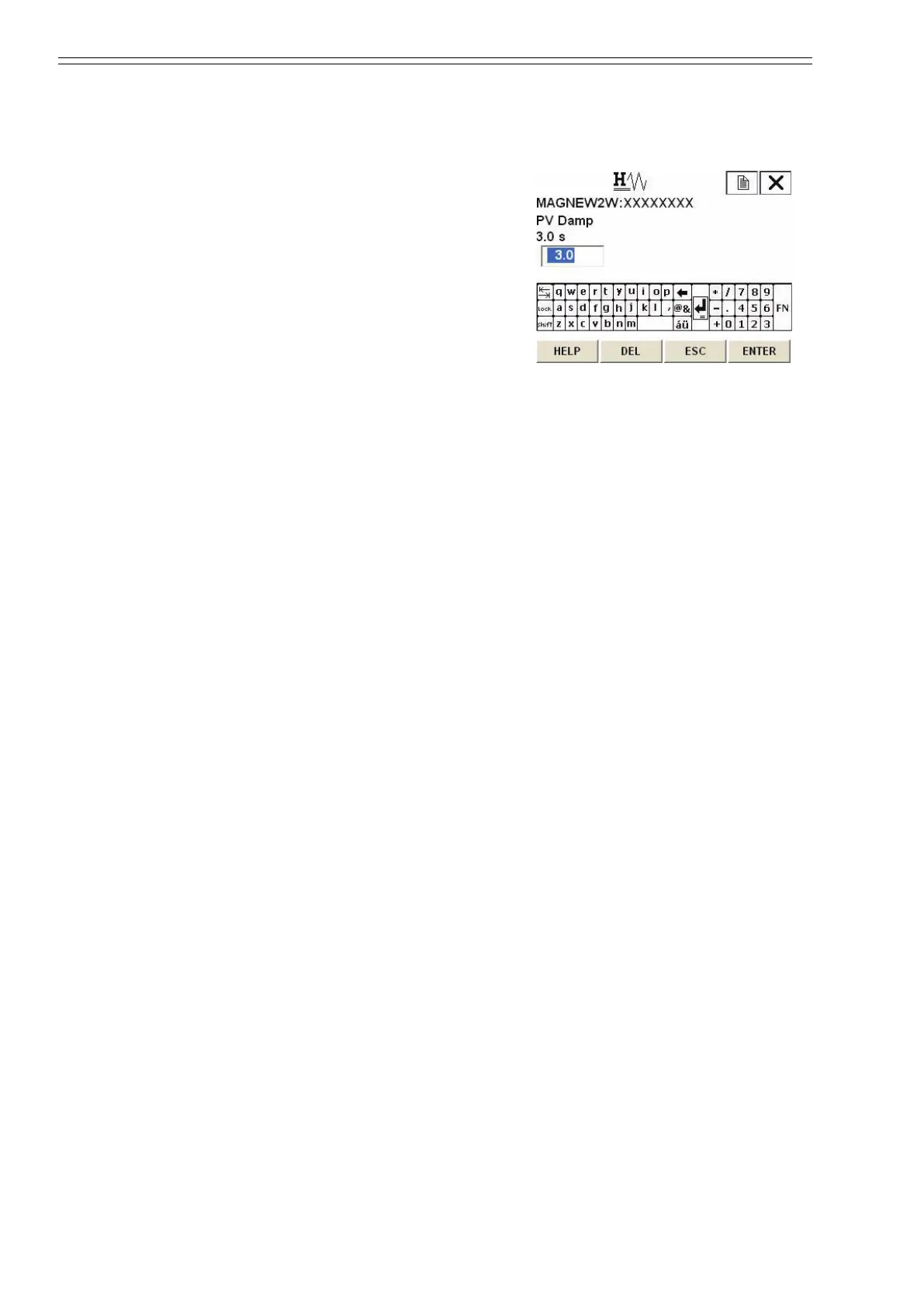

Figure 7-10 will then be displayed.
Figure 7-10
2. Use the numeric keys to enter a damping time constant value in the value input
display. Up to five digits including a decimal point can be entered. Setting
range of the damping constant is 0.5 to 199.9.
3. Once a new value is entered, press F4 (ENTER) to return to the basic setup
menu. When the value is outside the range, error will be displayed. Input the
value again.
4. After returning to the basic setup menu, press F2 (SEND). Changed setting
will be transmitted to the converter. The HART Communicator mark will
appear on the upper right hand corner while HART is communicating with the
device. The mark will disappear once communication has properly completed.
