Azbil Corporation Operation using the data setting device
Model MTG11A/18A, MTG11B/18B, MTG14C 6-29
Making zero adjustment: CORRECT key

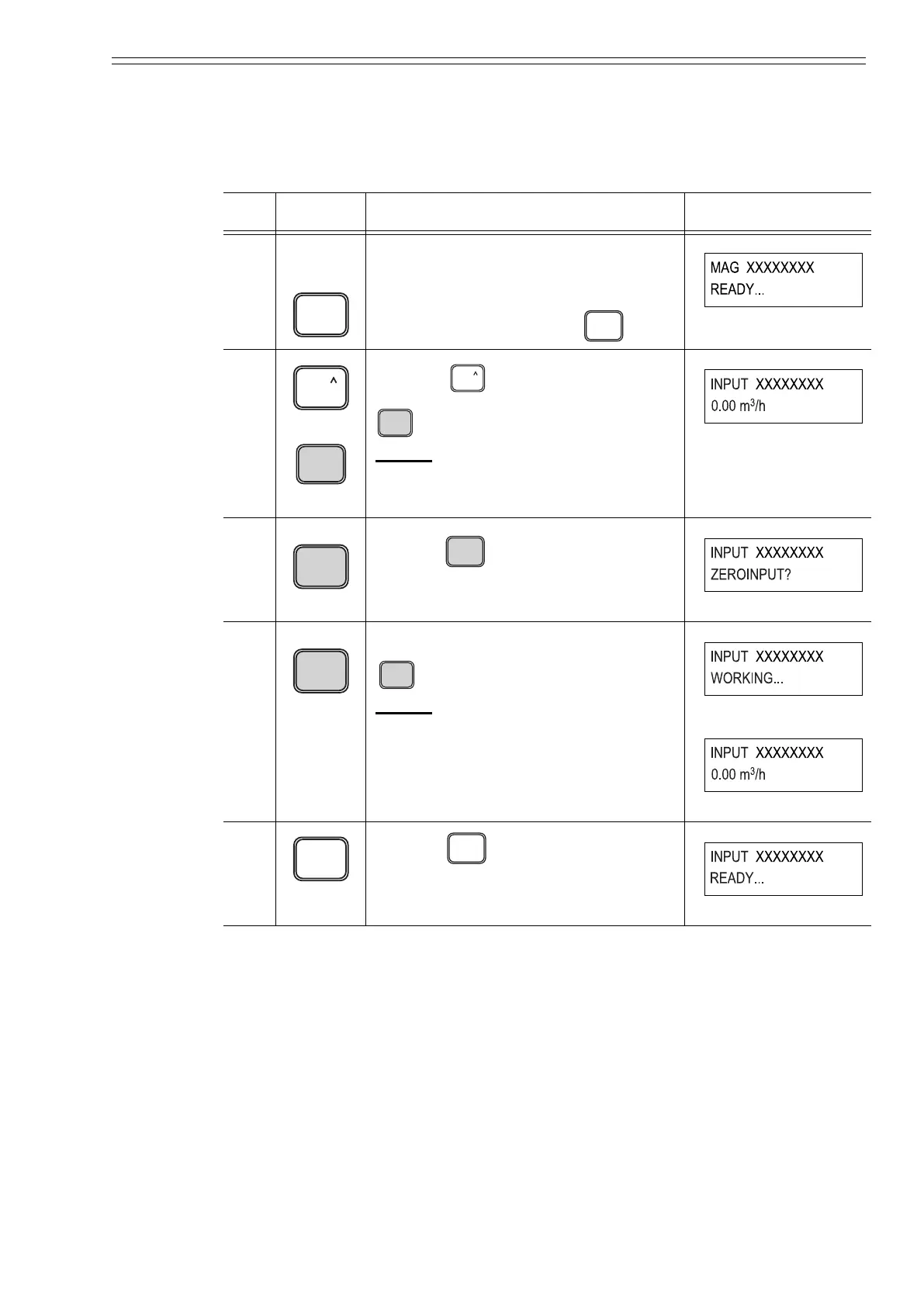

Use the following procedure to do the auto zero adjustment from the SFC.
When adjusting auto zero point, stop and make static the fluid in the flow meter.
Step
Key Procedure SFC screen
1 Make sure that the SFC is set to
“READY”.
If a screen other than the one here to the
right is displayed, press the key.
2
Press the key, and then press the
key,
Result:
The actual measured value appears as
shown on the right.
3
Press the key. ‘Zero INPUT?’ will
be displayed. Confirm that the actual
flow rate equals to zero.
4 After checking the flow rate, press the
key.
Result:
Auto zero point adjustment is initiated.
It takes approx. 2 min. When the screen
returns to the previous screen, auto zero
adjustment is completed.
5
Press the key to return to at step 1.
CLR
( No )
CLR
( No )
SFCM00006009D
SHIFT
OUT-
J
PUT
INPUT
SHIFT
OUT-
J
PUT
INPUT
SFCM00006075D
COR-
K
RECT
RESET
COR-
K
RECT
RESET
SFCM00006076D
ENTER
( Yes )
NON-VOL
ENTER
( Yes )
NON-VOL
SFCM00006077D
SFCM00006075D
CLR
( No )
CLR
( No )
SFCM00006078D
