Model MTG11A/18A, MTG11B/18B, MTG14C 6-1
Chapter 6 : Operation using SFC communicator
6-1 : Structure and functions of SFC
6-1-1: Structure of SFC
Introduction
~Note Do not overcharge or over discharge (leave with the switch on) the built-
in battery of the SFC. This may shorten the battery life.
Detailed information
The SFC has been developed not only as a converter but also as a communicator to be
used in connection with various smart field instruments. If you need explanation for
instruments other than the loop powered magnetic flowmeter, see the model SFC160/
260 User's Manual of the respective series’.
Structure of Smart Field Communicator (SFC)
Names of components

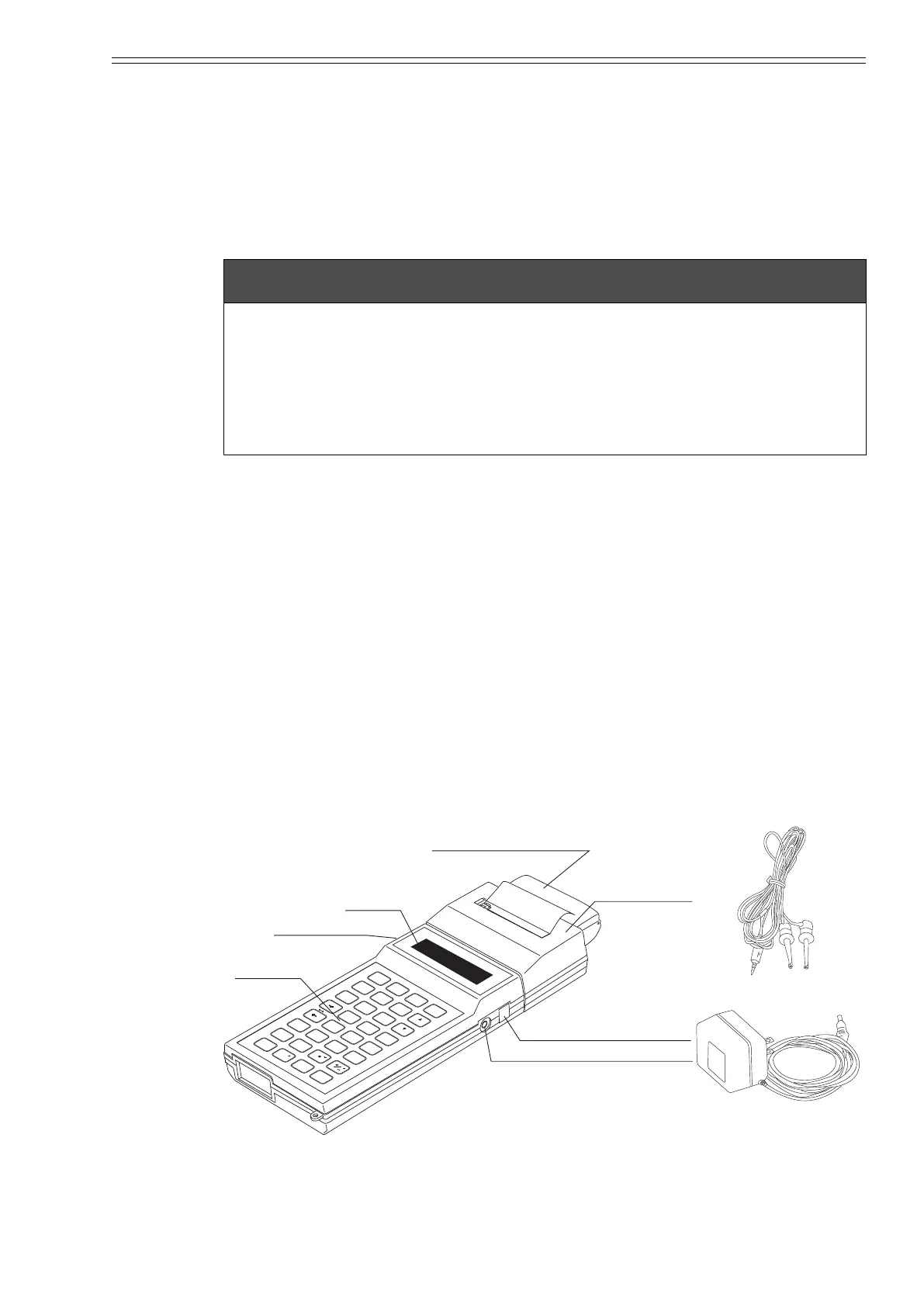

Figure 1-1 shows the structure and names of components for the Smart Field
Communicator (SFC).
Figure 6-1 Details of SFC
m CAUTION
• When communication with the converter is started using the SFC in a system with
analog output, be sure to change the control loop of the process to “manual”
(manual control).
• Be sure to use the SFC with software version 7.0 or later. Using earlier versions
may result in problems such as the absence of some setting items or failure in
setting correctly.
S-SFC
DE READ
DE CONF.
INPUT
RESET
FEED PRINT
A
DE
F/S DIR
SW VER
URL
ACT PR
SCR PAD
TIME
NON-VOL
A
ID
B
CONF
C
DAMP
D
UNITS
H
NEXT
G
SET
URV
F
100%
LRV
E
0%
MENU
I
ITEM
OUT-
J
PUT
COR-
K
RECT
L
PREV
M
N
7
O
8
P
9
Q
R
4
S
5
T
6
X
3
W
2
V
1
U
STAT
Y
SPAN
Z
0
ALPHA
SHIFT
CLR
( No )
ENTER
( Yes )
Printer (Option)
Battery charger connector
Communication cable connector
Roll paper compartment
Display
Power switch
Key board
Communication cable
