Azbil Corporation Operation using HART communicator
Model MTG11A/18A, MTG11B/18B, MTG14C 7-11
Correction coefficient setting
Correction coefficient can be set in case multiplying the correction coefficient to the
output flow rate according to its need.
The correction coefficient is set as follows:
1. From online menu,
Select:
1. Device setup
3. Basic setup
9. Coefficient

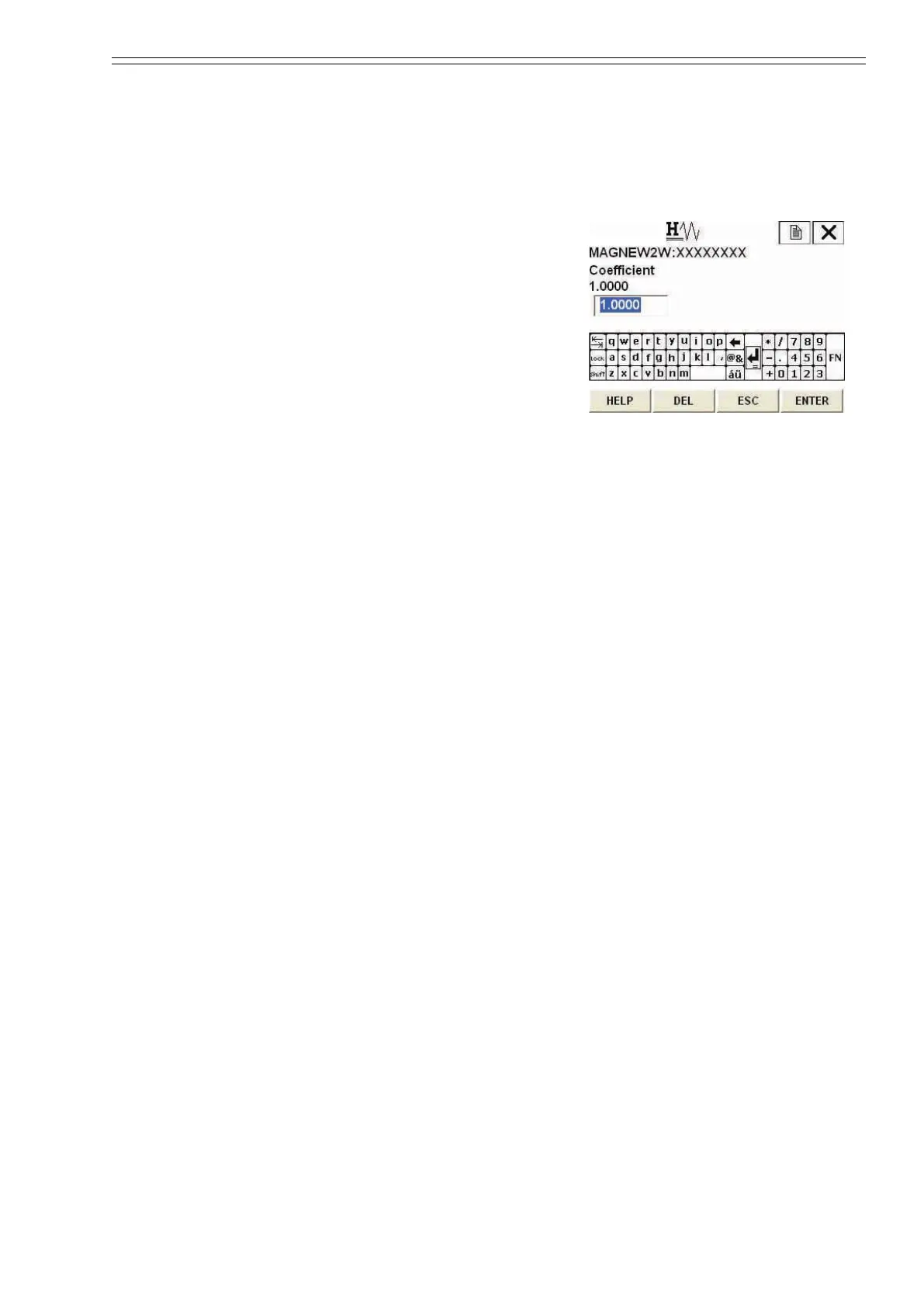

Figure 7-16 will then be displayed.
Figure 7-16
2. Use the numeric keys to enter a correction coefficient value in the value input
display. Up to six digits including a decimal point can be entered. Setting
range of correction coefficient is 0.1000 to 5.9999.
3. Once a new value is entered, press F4 (ENTER) to return to the basic setup
menu. When the value is outside the range, error will be displayed. Input the
value again.
4. After returning to the basic setup menu, press F2 (SEND). Changed setting
will be transmitted to the converter. The HART Communicator mark will
appear on the upper right hand corner while HART is communicating with the
device. The mark will disappear once communication has properly completed.
