Azbil Corporation Maintenance and troubleshooting
Model MTG11A/18A, MTG11B/18B, MTG14C 8-13
8-3-3: Spare parts for remote type detector

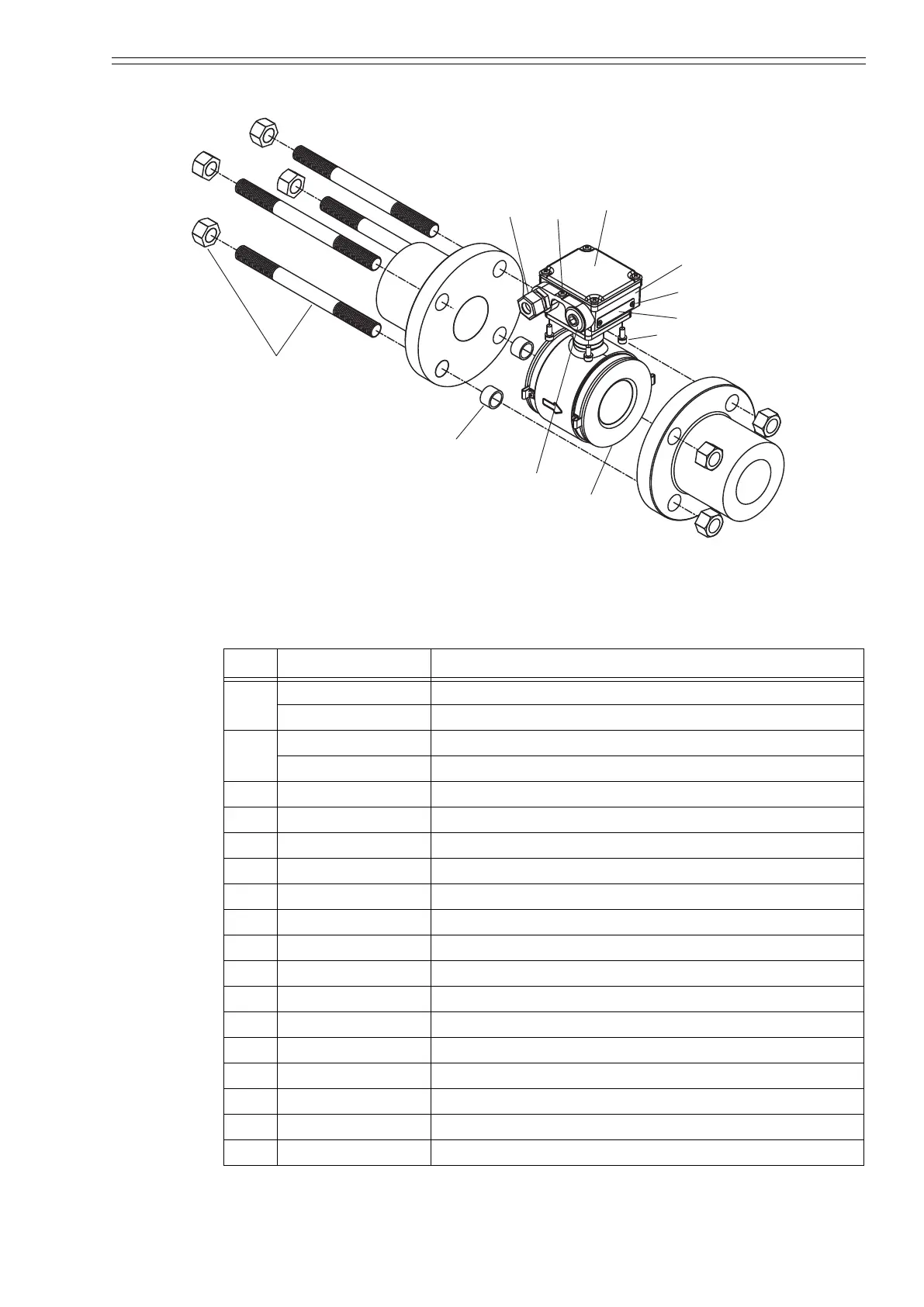

Figure 8-10 Spare parts for remote type detector
Table 8-3 Spare parts for remote-type detector
No. Parts number Parts name
1 80380573-00100 Terminal box cover (standard finish)
80380573-00300 Terminal box cover (corrosion proof finish)
2 80380571-00100 Terminal boxes (conduit connection G1/2, standard finish)
80380571-00900 Terminal boxes (conduit connection G1/2, corrosion proof finish)
3 80380584-00100 Tag plate
4 HS311-230-05000 Screw
5 80356995-00100 Screw
6 80381052-00100 Plug assembly (G1/2)
7 80352997-00100 Plastic gland
8 80356020-10100 Watertight gland assembly (brass Ni plate)
9 HS311-240-06000 Grounding terminal
10 Refer to Table 8-4 Wafer type grounding ring assembly
10-1 Refer to Table 8-4 Screw
10-2 Refer to Table 8-4 PTFE gasket for grounding ring other than SUS
10 Refer to Table 8-5 Wafer type grounding ring assembly
10-1 Refer to Table 8-5 Screw
10-2 Refer to Table 8-5 PTFE gasket for grounding ring other than SUS
11 Refer to Table 8-6 Through bolt and nut for wafer type detector
12 Refer to Table 8-7 Special centering tool for wafer type detector
1
9
7, 8
2
4
3
5
12
6
10, 10-1,
10-2
11
