Azbil VDC User Manual

Operation using the data setting device Azbil Corporation
6-40 Model MTG11A/18A, MTG11B/18B, MTG14C
Printing example
An example of an action printout corresponding to actual key operation will be
explained.
7
Press the key.
8
Press the key.
Result:
The action printout operation ends
by printing:
* ACTION PRINT * END
Then, the screen returns to step 2.

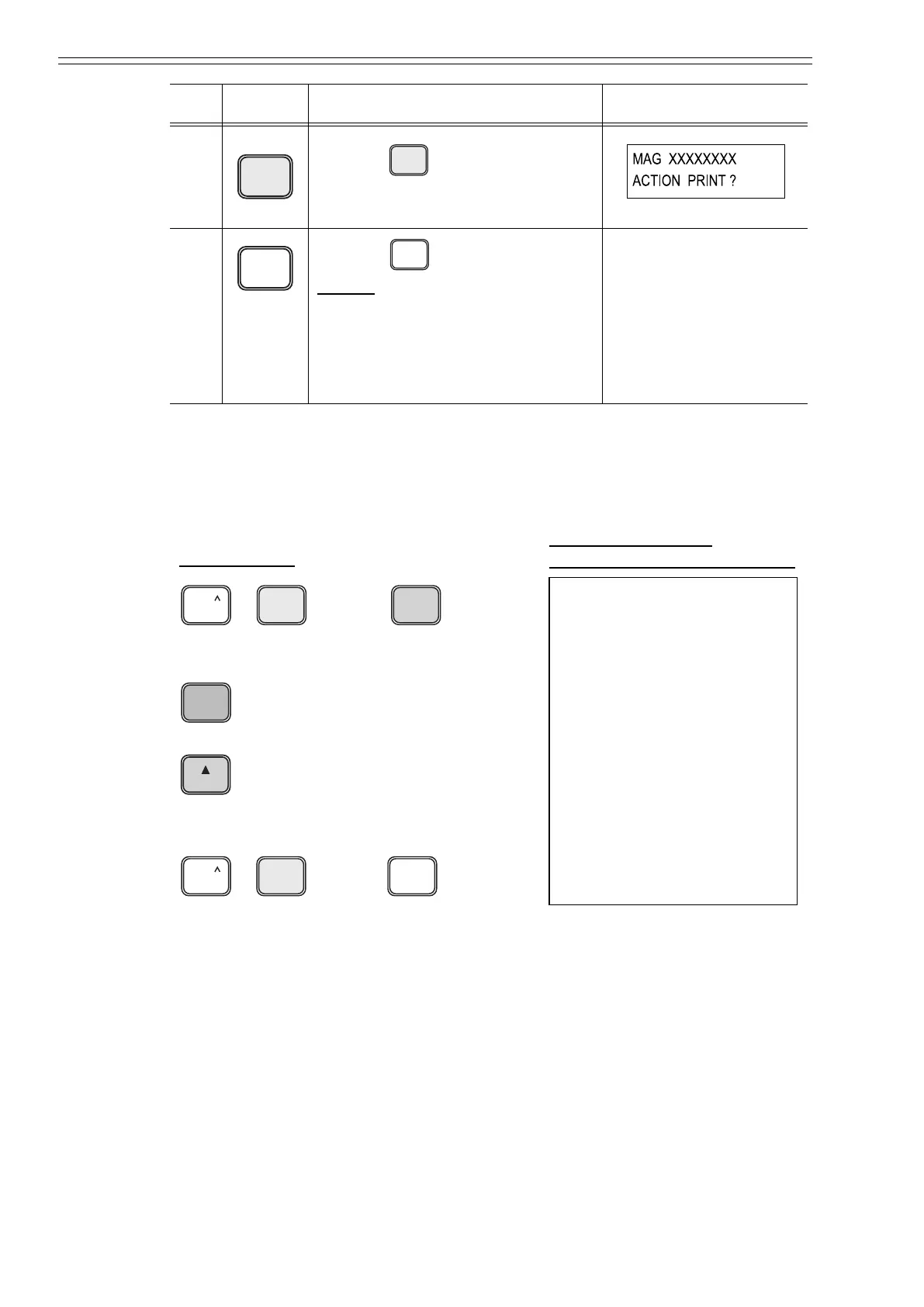

Step Key Procedure SFC screen
Z
0
ACT PR
Z
0
ACT PR
SFCM00006017D
CLR
( No )
CLR
( No )
Z
0
ACT PR
SHIFT
ENTER
( Yes )
NON-VOL
keys
0
SHIFT
CLR
( No )
keys
C
DAMP
key
key
* ACTION PRINT * START
TAG. No. FIC-123
 ’02-06-05 15:35
DAMP XXXXXXXX
3.0 S
DAMPING XXXXXXXX
4.0 S
* ACTION PRINT * END
Key operation
Printing example of
corresponding action printout
+
+
+
(ACT PR)
+
(ACT PR)
H
NEXT
