Azbil Corporation Operation using the data setting device
Model MTG11A/18A, MTG11B/18B, MTG14C 6-45
6
Press the key.
Result:
• The screen as shown on the right
appears and the set low flow
cutoff is confirmed.
7
or
Press the key or key to
show this screen (DOWN LOAD).
8
Press the key.
Result:
• The screen as shown on the right
appears and the changed setting is
written into the database of the
converter. The screen returns to
step 2.
~Note
• In step 5, if you try to set
displaying “CUT OFF = OFF” or
“CUT OFF = ON 00%”,
“INVALID REQUEST” will
appear on the screen. Converter
will reject the database to be
written in.
9
+
To exit this setting function, press
the + keys.
10
Press the key.
Result:
• Exiting the low flow cutoff setting
function, the screen returns to the
screen in step 1.

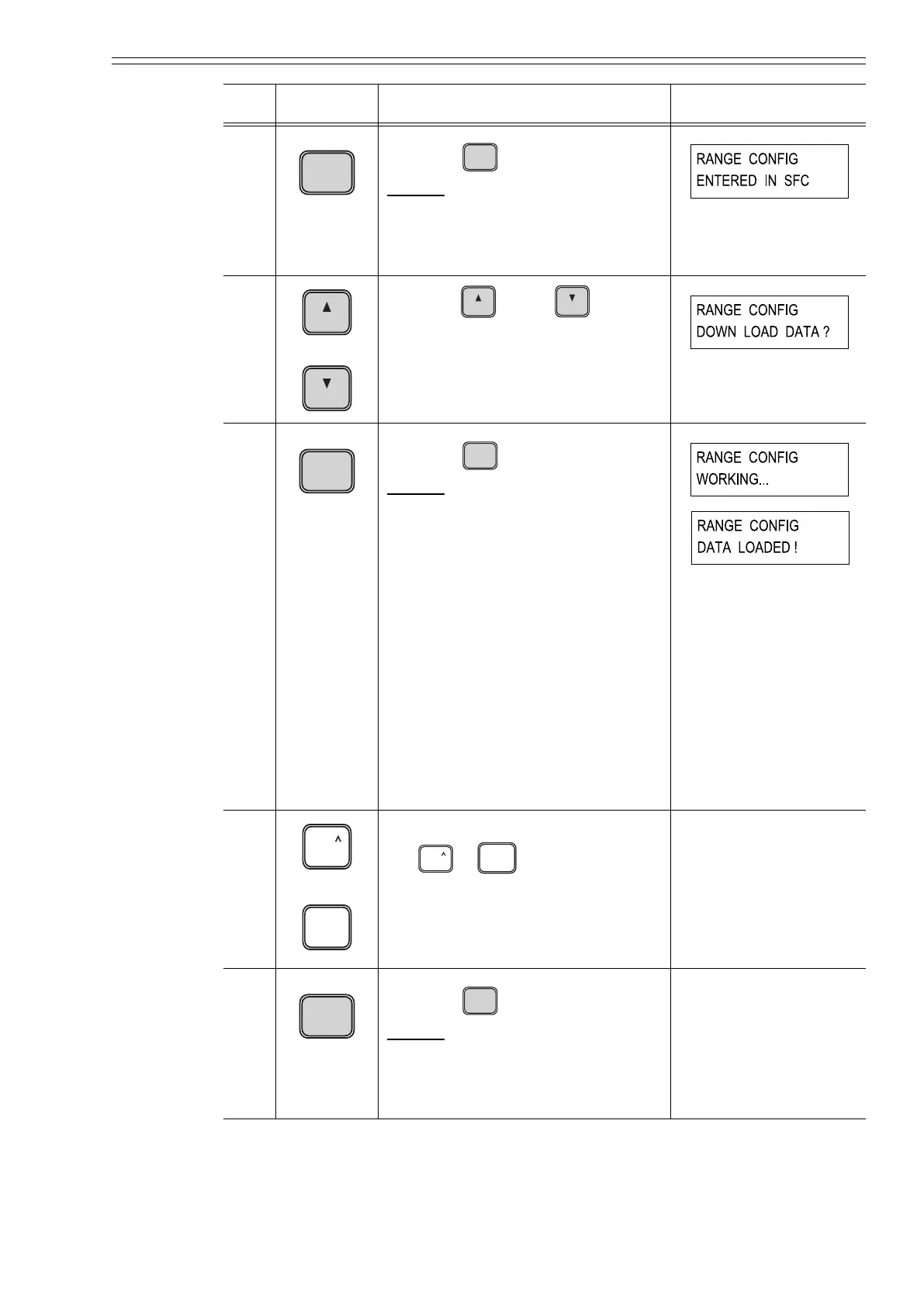

Step Key Procedure SFC screen
ENTER
( Yes )
NON-VOL
ENTER
( Yes )
NON-VOL
SFCM00006051D
H
NEXT
L
PREV
H
NEXT
L
PREV
SFCM00006053D
ENTER
( Yes )
NON-VOL
ENTER
( Yes )
NON-VOL
SFCM00006054D
SFCM00006055D
SHIFT
CLR
( No )
SHIFT
CLR
( No )
ENTER
( Yes )
NON-VOL
ENTER
( Yes )
NON-VOL
CM2-MTG300-2001.book 45 ページ ２０１５年９月２９日 火曜日 午前１０時１４分
