Bartec MAK TIGER 3003 - Wiring; Maintenance and Servicing

Flow Meter MID type 6823-x
106
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
16.4 Wiring
The MID is supplied as standard with 5 m of cable which is connected as
shown on the diagram below. Please follow the directions for use of the follow-
on device when wiring.

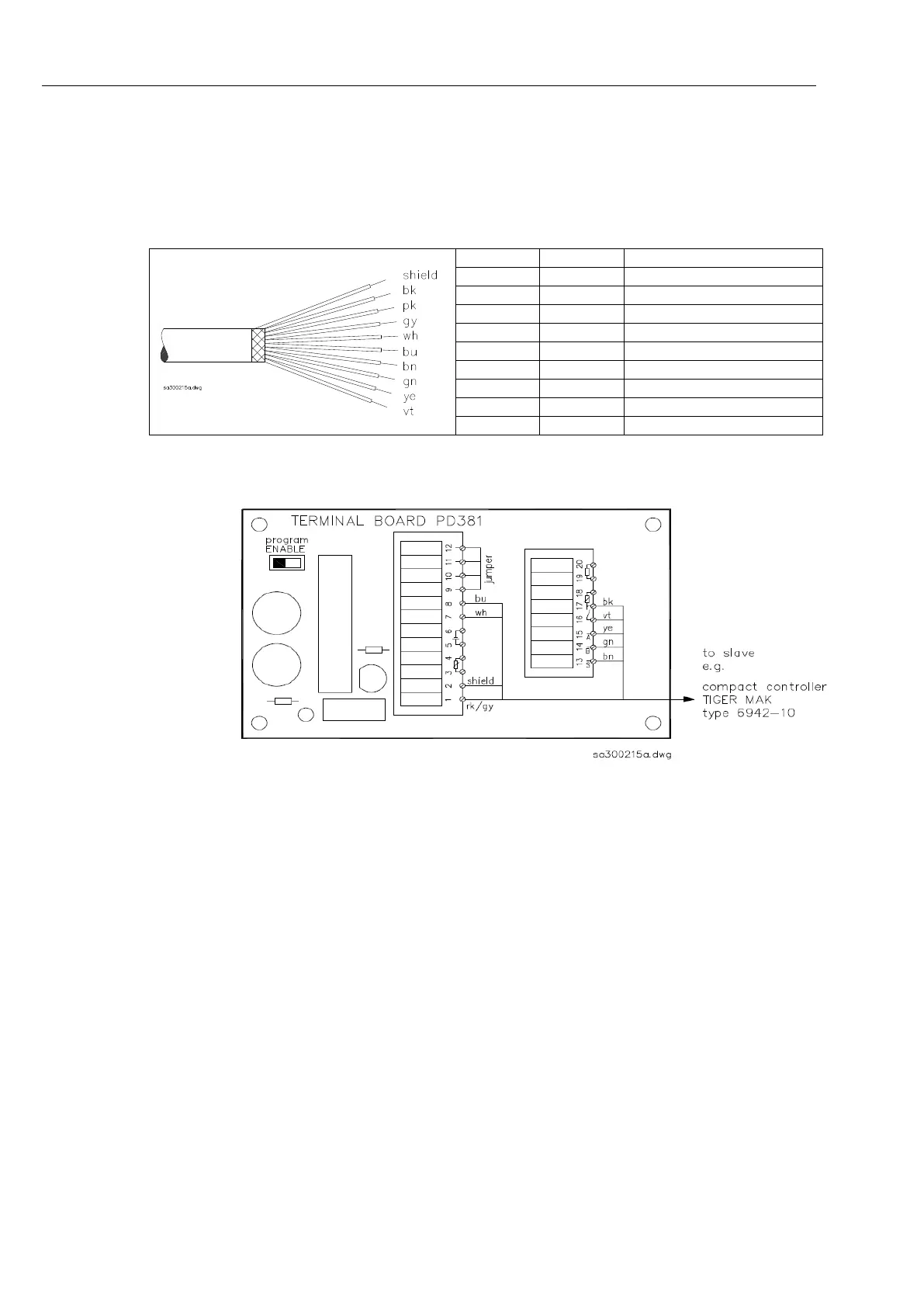

MID wired with P-NET, pulse output connection and display unit connection.
16.5 Maintenance and servicing
The usual cleaners approved for use with food in the dairy industry can be
used to clean the flow rate meter.
The cleaning fluid passing through the system must not exceed the tempera-
ture limit of max. + 100 °C.
Terminal
Colour
Signal
1
pk/gy
+DC 24 V
2
Shield
-Supply
7
wh
+Display unit
8
bu
-PD 210
13
bn
P-NET S
14
gn
P-NET B
15
ye
P-NET A
16
vt
Output 3 (pulse output)
17
bk
GND
