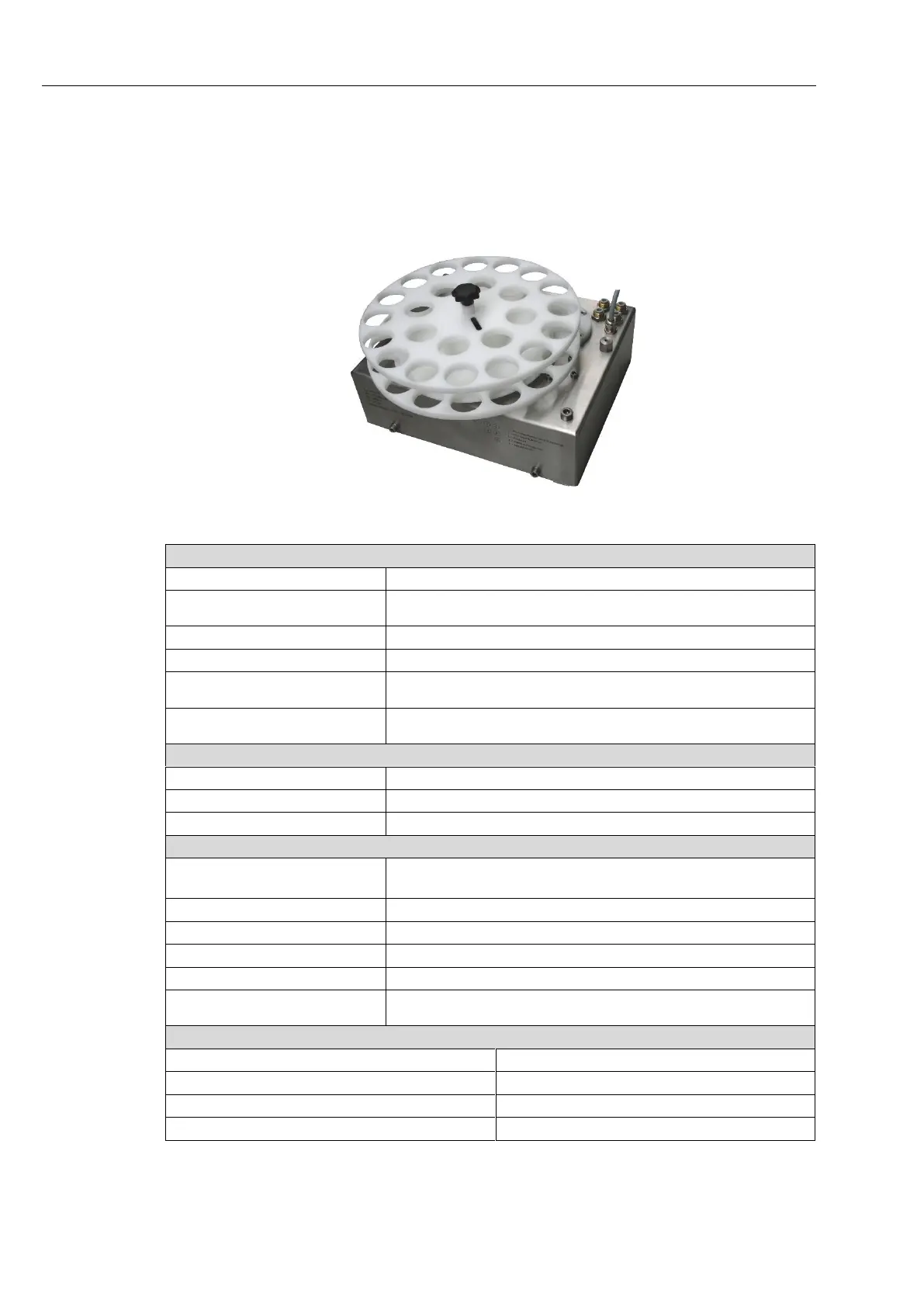

26.6 Bottle Drive Mini (max. 16 bottles)
type 6774-12
Order no.: 362272
26.6.1 Technical Data
Device-specific data
Number of sample bottles
Max. 16 (optional capacity for 8 spare bottles)
Barcode reader
Fitting facility for bar code reader, e.g. type 6727-40 (not supplied
with the product)
Connection cable
7 m oil resistant flexible cable, 2 x 0.75 mm²
Input voltage
24 V DC, must be conducted via relay with freewheeling diode
Fuses
No internal fuses, approx. 3 A, must be fused via
drive system
Pneumatic supply
Plug-in connections for pneumatic hose with 6 mm
outer diameter
Ambient conditions
Operating temperature
-10 °C …+50 °C
Storage temperature
-10 °C …+70 °C
Protection class
IP 20
Mechanical Data
Dimensions
285 x 279 x 170 mm (incl. bottle holder)
285 x 243.5 x 106.5 mm (excl. bottle holder)
Mounting holes
4 x diameter 9 mm, 240 x 190 mm
Weight incl. bottle holder
Approx. 6 kg
Weight of bottle holder
Approx. 1,1 kg
Housing specification
Stainless steel, plastic (POM)
Bottle holder
Type 6774-306 for 16 sample bottles
(Optional capacity for 8 spare bottles)
Spare parts and accessories
Designation
Order number
Holder for 16 bottles, type 6774-306
362571
Magnetic holder, type 6774-305
362535
Plastic hose PAN 6 x 1,00 mm (silver)
306004
