Bartec MAK TIGER 3003 - Wiring

Barcode reading unit type 6723-10
117
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

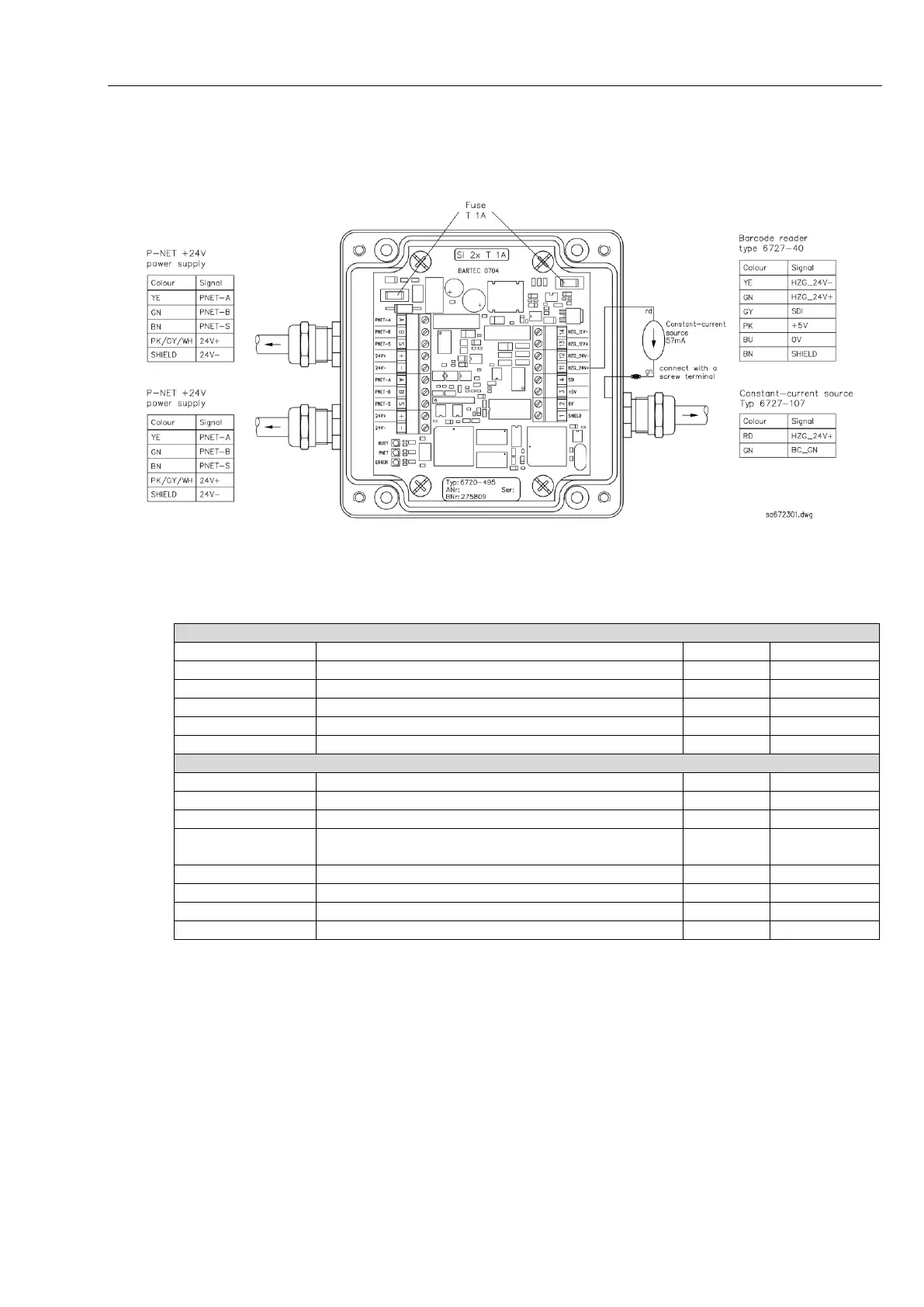

19.4 Wiring
Terminal designation of bar code reading unit
INPUT SIDE
Signal
Designation
Terminal
Wire colour
P-NET - A
P-NET - A
A
ye
P-NET - B
P-NET - B
B
gn
P-NET - S
P-NET - S
S
bn
24 V +
Operating voltage
+
pk/gy/wh
24 V -
Operating voltage
-
Shield
OUTPUT SIDE
Signal
Designation
Terminal
Wire colour
HZG_24V-
Bar code reader heating (-24 V), type 6727-40
12
ye
HZG_24V+
Constant current source (KS_RT), Type 6727-107
11
rd
KS_GN
Heating barcode reader (+24V), type 6727-40
Luster
terminal
gn
SDI
Digital input signal (TTL level), type 6727-40
4
gy
+5V
+ Bar code reader operating voltage, type 6727-40
3
pk
0V
- Bar code reader operating voltage, type 6727-40
2
bu
SHIELD
Cable shielding, type 6727-40
1
bn
