Bartec MAK TIGER 3003 Service Manual

ULTRASAMPLER® sample collection system
160
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

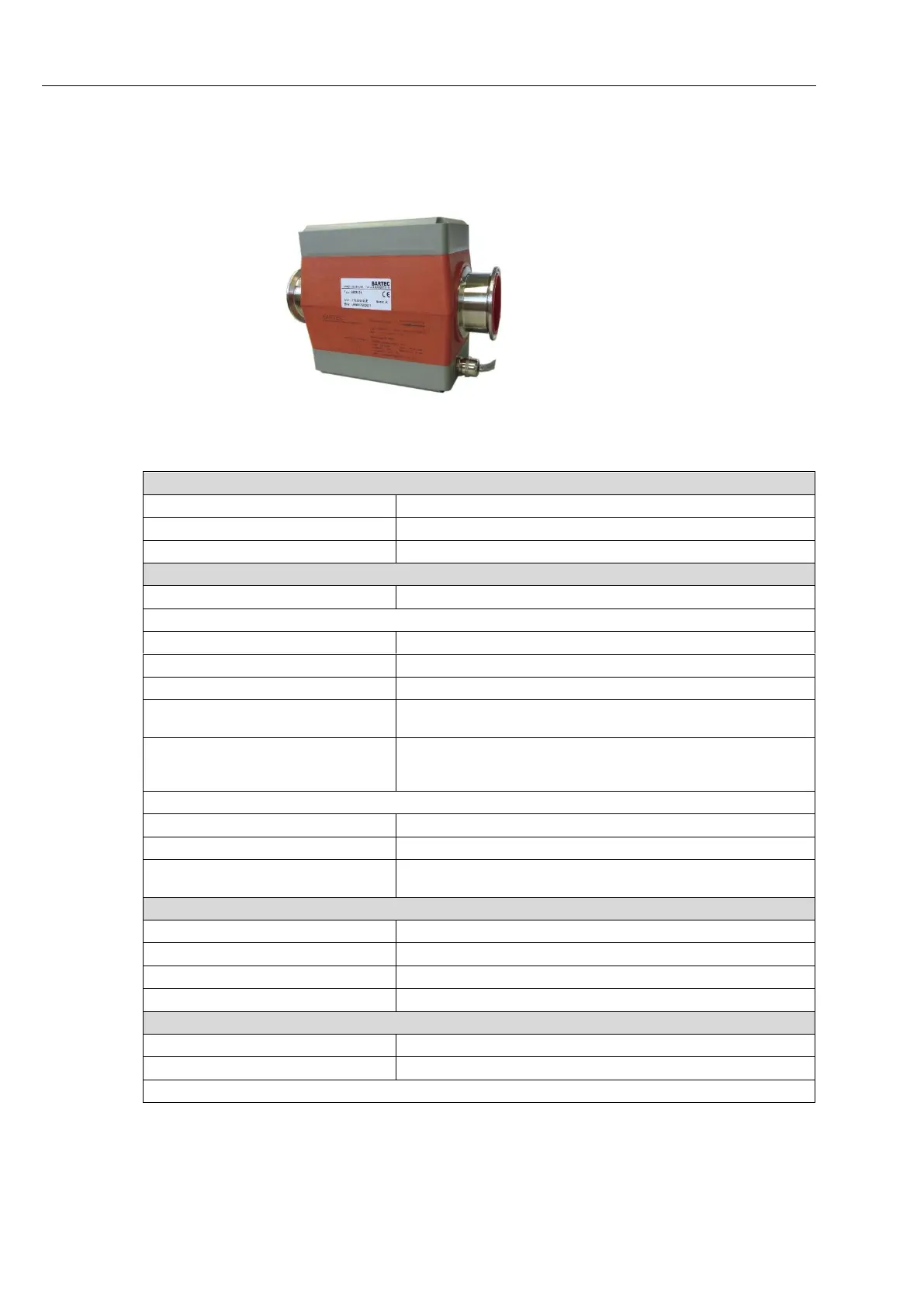

26.3 Flow Level Meter type 6826-x
Order no..: see technical data
26.3.1 Technical data
Device-specific data
Liquid to be measured
milk
Medium temperature
0 °C … +100 °C
Pressure
max. 10 bar
Electrical data
Auxiliary energy (voltage, current)
24 V DC ± 10 % max. 6 W
Volume flow rate
NW 50
max. 500 l/min
NW 65
max. 1000 l/min
NW 76
max. 1400 l/min
Flow direction
In accordance with direction given on the metal type plate
(+ direction)
Sensors
Magneto-inductive flow sensor with µP-controlled function
monitoring; measurement of filling degree via conductivity
sensor
Electrical outputs
Magneto-inductive flow meter
analog output 4 … 20 mA
Filling level sensor
analog output approx. 0,3 … 2,3 V
Electrical connection
5 m connection cable via PG-11 feed and internal terminals,
open cable ends
Ambient conditions
Operating temperature
-10 °C … +50 °C
Maximum cleaning temperature
100 °C
Cleaning type
CIP cleaning
Climatic class
IWA in accordance with DIN 40040
Mechanical data
Dimensions
250 x 180 x 110 mm
Weight
approx. 50 N (= 5 kg)
Pipe connections
