Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020
26.10.3 Injektionsnadel montieren

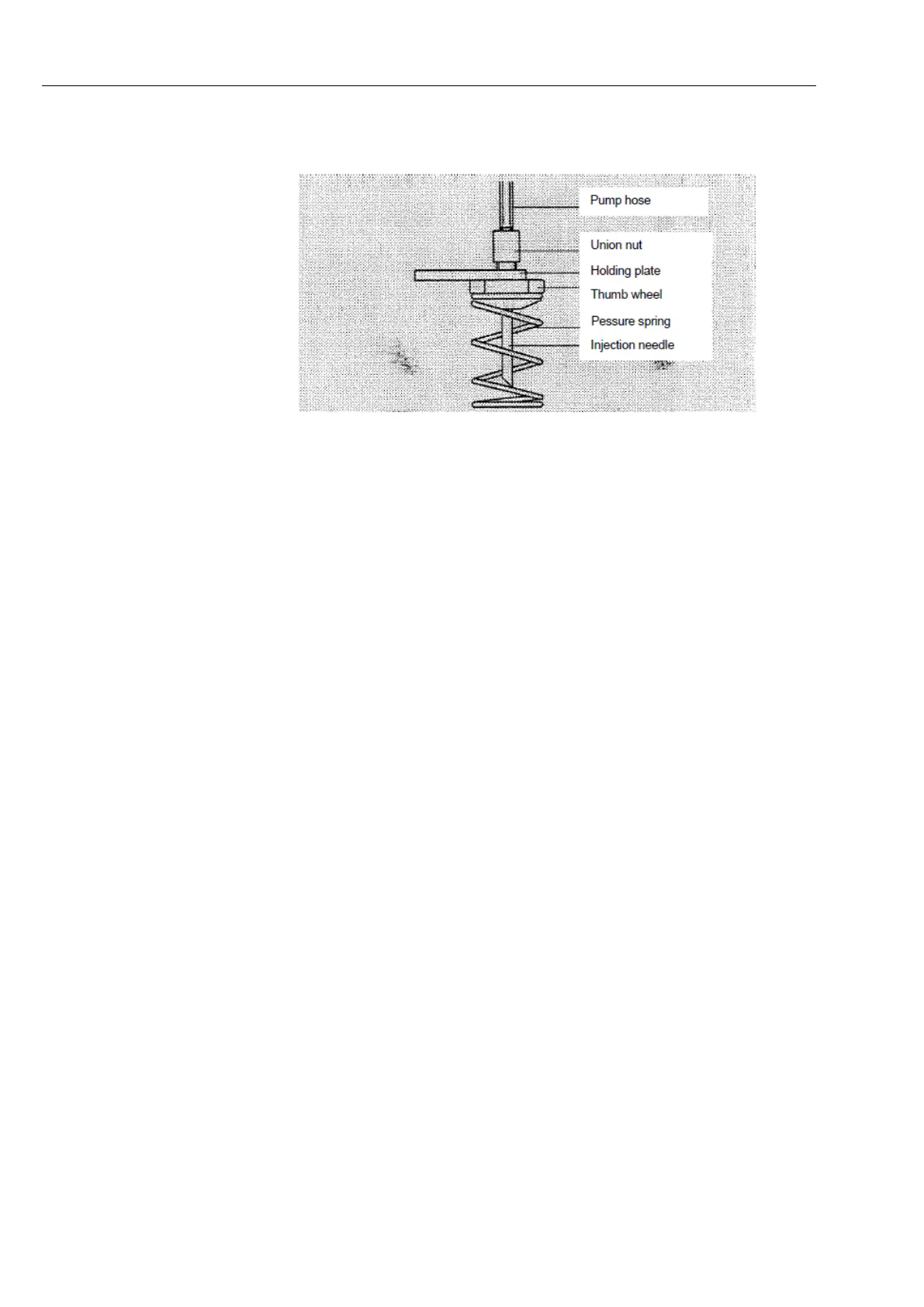

Disassembling the injection needle
The injection needle and thumb wheel (with thread for union nut) form one
unit.
 Unscrew union nut and remove pump hose
 Remove pressure spring
 Unscrew injection needle from holding plate (turn thumb wheel)
To assemble, follow the steps in reverse order.
