Bartec MAK TIGER 3003 - 20 Barcode Reader Type 6727-40 Series a; Technical Data

Barcode reader type 6727-40 Series A
119
Measuring System MAK TIGER 3003 Service manual, SA 131128, 10.03.2020

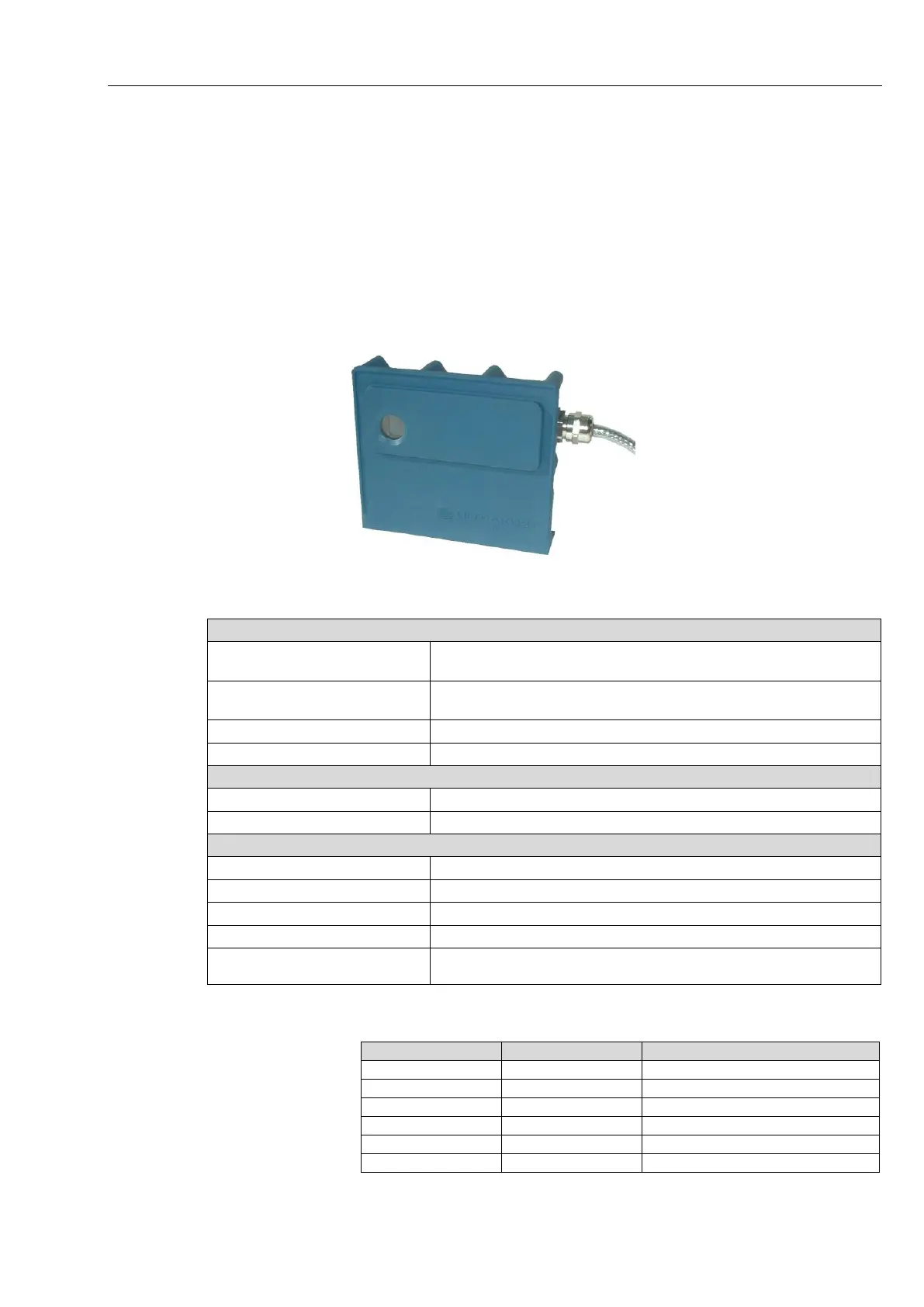

20 Barcode reader type 6727-40
Series A
Order no.: U96410672740
The bar code reader type 6727-40 is a distance scanner for bar codes. It is
used to read bar code labels on BARTEC milk sample bottles of type 6845-x
in stationary and mobile systems.
It is used in conjunction with bar code reading unit type 6723-10.
20.1 Technical data
Electrical data
Auxiliary power
Operating voltage: DC 5 V, 17 ... 19 mA
Heating: DC 24 V / 1.5 W
Electrical connection
2 m connection cable with open ends, closed with wire end
ferrules, cable inlet PG7
Output
TTL-compatible output, "bright"  low, "dark"  high
Transmitter light
Red light - 900 nm
Ambient conditions
Operating temperature
- 10 ... + 50° C
Climate class/protection type
KUF / IP 65
Mechanical data
Housing specification
Plastic housing
Dimensions
99.5 x 26 x 88.3
Height of transmitter light emission
57 mm
Weight
Approx. 3.3 N  0.33 kg
Assembly
Screw fitting with 2 x M4 bolts, hole spacing 61 mm,
vertical installation position (according to bar code label)
Terminal assignment
Wire colour
Assignment
Signal
ye
HZG-
Scanner window heating
gn
HZG+
Scanner window heating
gy
SDI
Digital output signal
pk
+5V
Operating voltage
bu
0V
Operating voltage
bn
Shield
Cable shielding
